Description

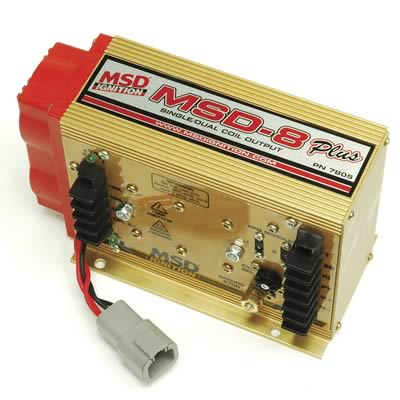

These MSD 8-Plus CD ignitions produce the same extreme output as the original 8-series, yet they are now in a smaller housing with improved efficiency and internal components. The new 8-Plus ignitions feature built-in, 2-step rev control. Now you can switch between two rev limits without extra wiring or housings. For those who are looking for a dual-fire MSD 8, the MSD 8-Plus CD ignitions are all that you need. MSD's engineers were able to deliver ignitions that are capable of firing two coils at once for those extreme racers using dual plug race setups.Brand: MSD Ignition
Manufacturer's Part Number: 7805
Part Type: Ignition Boxes
Product Line: MSD 8-Plus CD Ignitions
HP Direct Part Number: MSD-7805
UPC: 085132078059
Ignition Box Output: Capacitive discharge
Circuitry: Analog
Rev Limiter: Yes
Timing Retard: None
Data Acquisition: No
CD Voltage Output to Coil: 480 V
Current Draw: 36 amps at 12,000 rpm
Spark Output (millijoules): 315-345 mJ
Minimum Operating Voltage: 12 V
Maximum Operating Voltage: 18 V
Length (in.): 8.250 in.
Height (in.): 5.750 in.
Width (in.): 3.750 in.
Ignition Box Color: Gold
Coil Included: No
Quantity: Sold individually.
Manufacturer's Part Number: 7805
Part Type: Ignition Boxes
Product Line: MSD 8-Plus CD Ignitions
HP Direct Part Number: MSD-7805
UPC: 085132078059
Ignition Box Output: Capacitive discharge
Circuitry: Analog
Rev Limiter: Yes
Timing Retard: None
Data Acquisition: No
CD Voltage Output to Coil: 480 V
Current Draw: 36 amps at 12,000 rpm
Spark Output (millijoules): 315-345 mJ
Minimum Operating Voltage: 12 V
Maximum Operating Voltage: 18 V
Length (in.): 8.250 in.
Height (in.): 5.750 in.
Width (in.): 3.750 in.
Ignition Box Color: Gold
Coil Included: No
Quantity: Sold individually.
