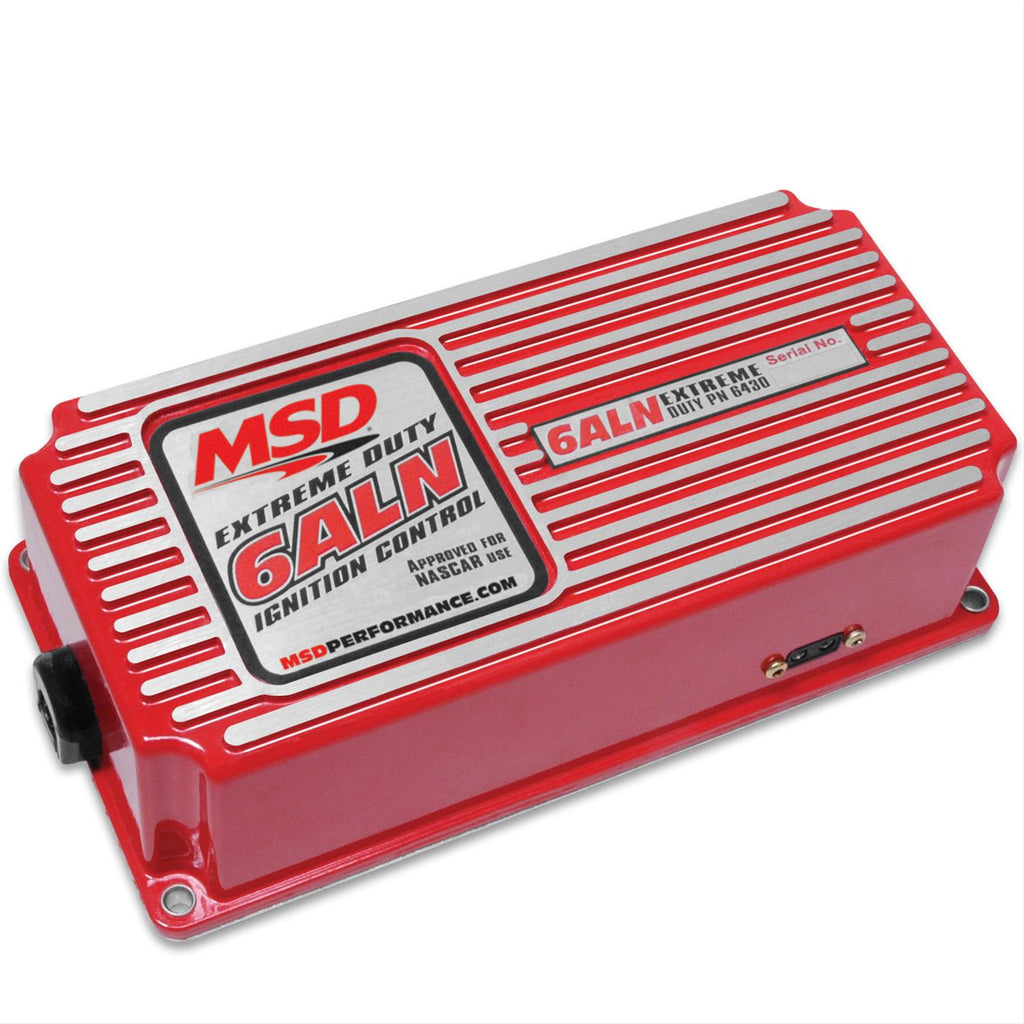

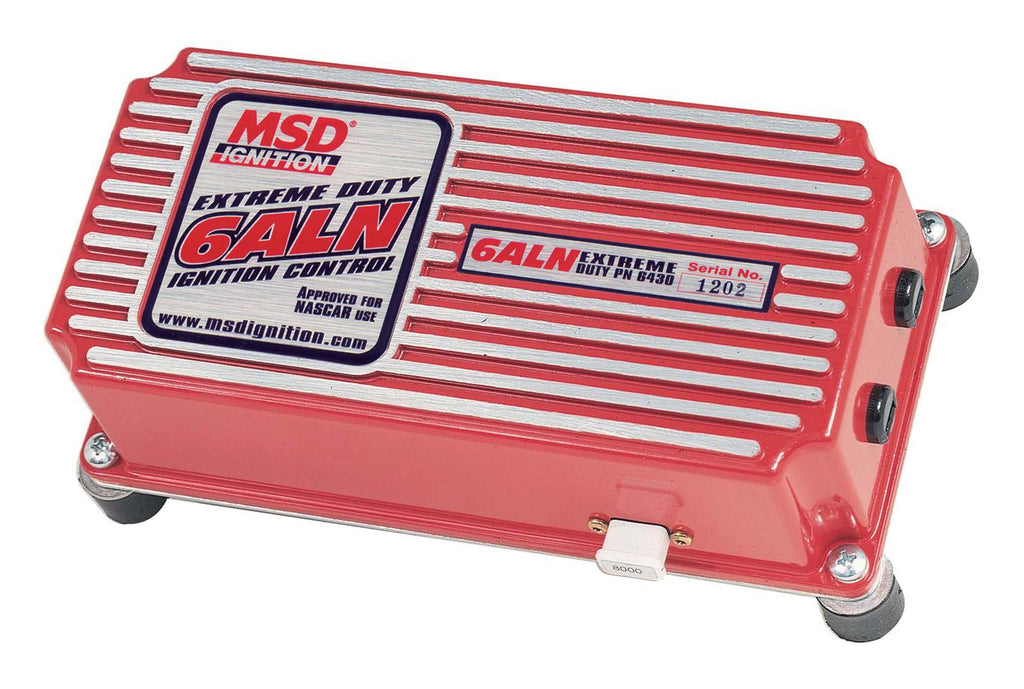

MSD 6TN/6ALN NASCAR CD Ignitions 6430

These MSD 6TN and 6ALN ignitions are the ultimate choices for superior performance in harsh racing conditions. With sturdy vibration mounts and CD circuits encased in a clear 2-part silicone elastomer, they are virtually vibration-proof. A specially designed, weathertight, 6-pin connector meets NASCAR's 20-6.1 ignition wiring rule and provides a tight, positive-locking connection with individual seals to keep dirt and moisture from each connection. The 6TNs are equipped with a special 4-pin connector that plugs directly into an MSD soft touch rev control, while the 6ALNs have a built-in rev control. These rev controls are adjustable with plug-in modules and will save your engine from overrev damage caused by missed shifts or driveline failures. They'll work with virtually any 4, 6 (even-fire V6 only), or 8-cylinder engines.Brand: MSD Ignition
Manufacturer's Part Number: 6430
Part Type: Ignition Boxes
Product Line: MSD 6TN/6ALN NASCAR CD Ignitions
HP Direct Part Number: MSD-6430
UPC: 085132064304
Ignition Box Output: Capacitive discharge
Circuitry: Analog
Rev Limiter: Yes
Timing Retard: None
Data Acquisition: No
CD Voltage Output to Coil: 460-480 V
Current Draw: 1 amp per 1,000 rpm
Spark Output (millijoules): 110 mJ
Minimum Operating Voltage: 12 V
Maximum Operating Voltage: 18 V
Length (in.): 8.000 in.
Height (in.): 2.250 in.
Width (in.): 4.000 in.
Ignition Box Color: Red
Coil Included: No
Warranty: 1-year
Quantity: Sold individually.
Notes: Even-fire only on V6. Meets NASCAR's 20-6.1 ignition wiring rule.
