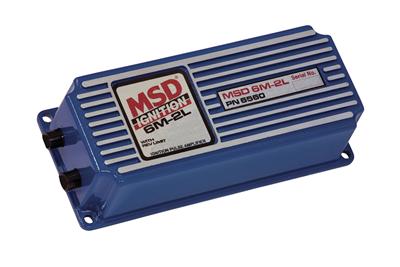

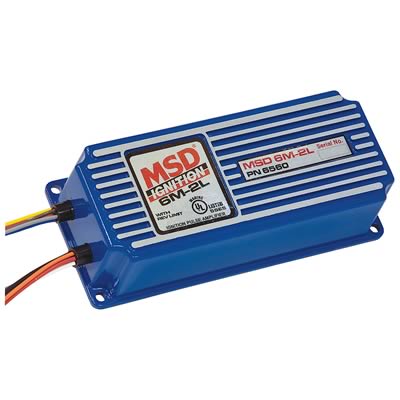

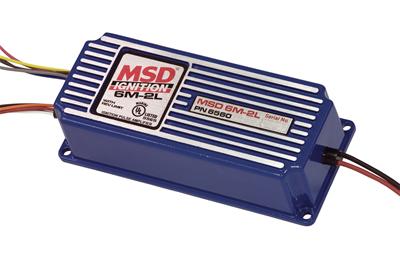

MSD 6M-2L Marine Ignitions with Rev Limiter 6560

What do you get when you add a rev limiter to the MSD's already bulletproof 6M-2 marine ignitions? The MSD 6M-2Ls! These ignitions are designed for performance marine applications where a high-energy and reliable ignition is a necessity. The capacitive discharge (CD) multiple sparks from the 6-series circuitry ensure easier starting, improved performance, and reduced plug fouling while idling. The MSD 6M-2L ignitions have the same mounting footprint as the original units, so they will easily fit into existing brackets. The proven Soft-Touch rev limiting action is set using MSD's marine rpm modules, so you'll be able to set a rev limit exactly where your engine needs it. The 6M-2L ignitions are built to deal with constant high rpm and load conditions unique to marine applications. To protect the 6M-2Ls' electrical circuitry from direct water contact, the entire units are potted with red polyurethane. This material prevents the electrical components from coming into contact with water or other chemicals that could cause damage. Weathertight connectors with multi-ribbed seals are unaffected by water, oil, gasoline, and most other chemicals associated with boats. The 6M-2L ignitions can be triggered by a magnetic pickup (distributor or crank trigger), amplifier, or breaker point distributor. The cable harness has the proper connector, so you can plug the 6M-2Ls directly into MSD's Pro-Billet marine distributors.Brand: MSD Ignition
Manufacturer's Part Number: 6560
Part Type: Ignition Boxes
Product Line: MSD 6M-2L Marine Ignitions with Rev Limiter
HP Direct Part Number: MSD-6560
UPC: 085132065608
Ignition Box Output: Capacitive discharge
Circuitry: Analog
Rev Limiter: Yes
Timing Retard: None
Data Acquisition: No
CD Voltage Output to Coil: 460-480 V
Current Draw: 1 amp per 1,000 rpm
Spark Output (millijoules): 105-115 mJ
Minimum Operating Voltage: 12 V
Maximum Operating Voltage: 18 V
Length (in.): 8.000 in.
Height (in.): 2.250 in.
Width (in.): 3.500 in.
Ignition Box Color: Blue
Coil Included: No
Warranty: 1-year
Quantity: Sold individually.
