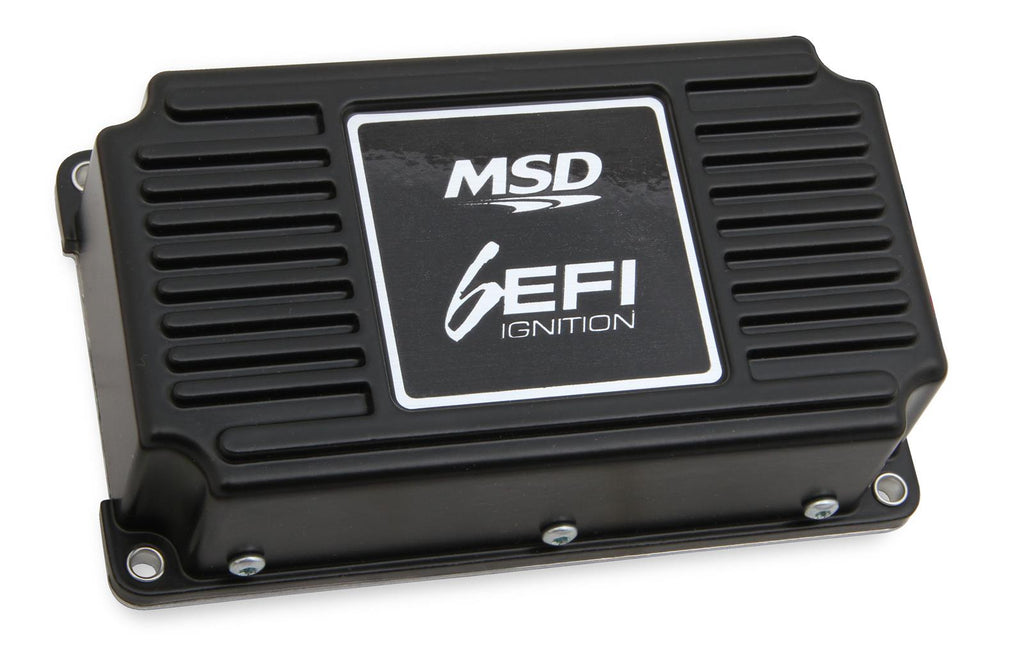

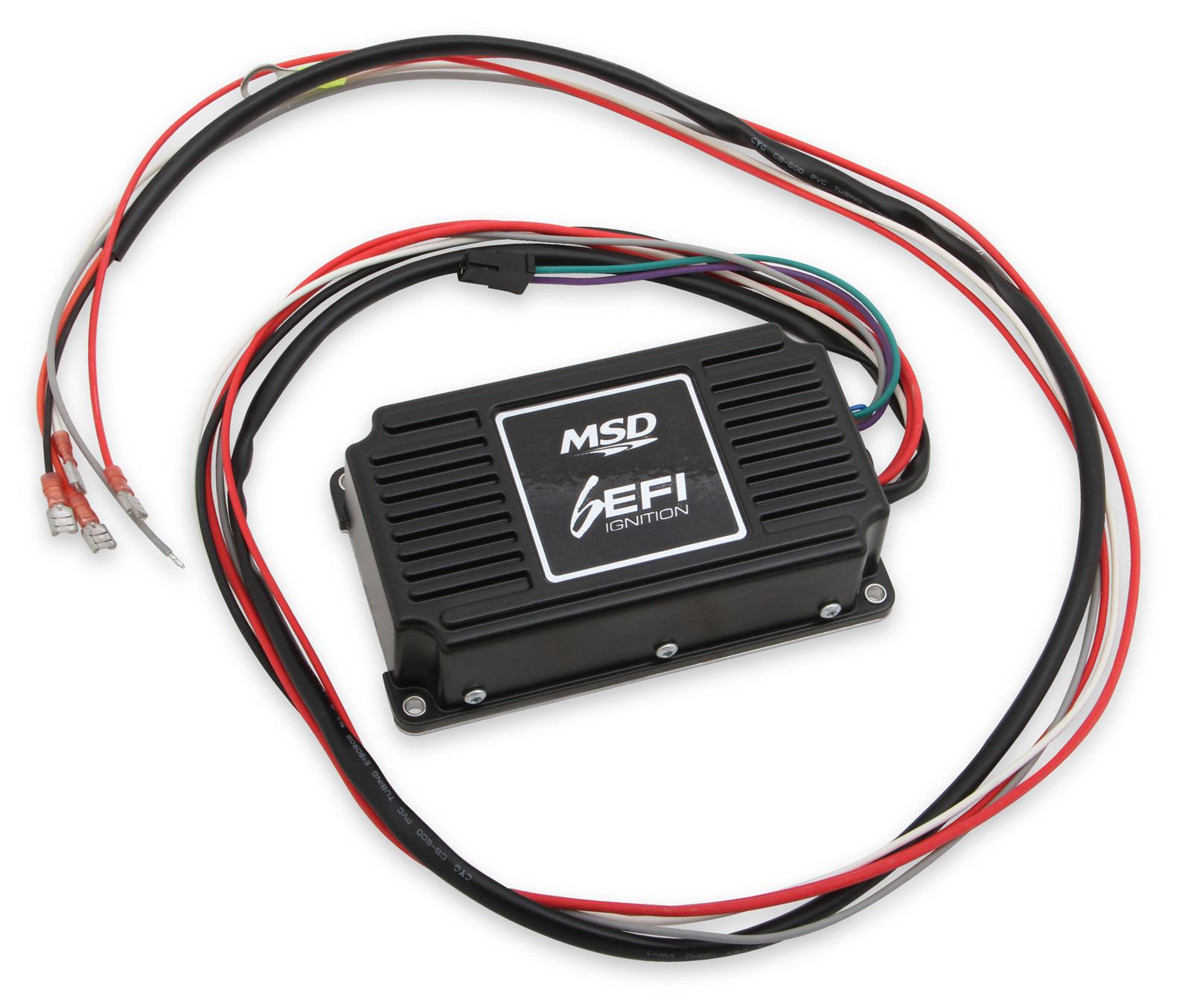

MSD 6EFI Ignitions 6415

MSD 6EFI ignitions are capacitive discharge ignitions designed to work in harmony with electronic fuel injection systems. They come with detailed wiring instructions, making installation a breeze. Increased throttle response, smoother idle, quicker starts, and full ignition power throughout the entire rpm range are all benefits of adding these ignition controls to your fuel injected engine. They feature built-in rev limiters that will protect the engine in the event of a missed shift or driveline failure. If you have a 4, 6, or 8-cylinder engine with EFI, MSD 6EFI ignition controls will connect and fire it up!

MSD 6EFI ignitions feature:

* Detailed instructions for installation with various EFI systems
* Compact design

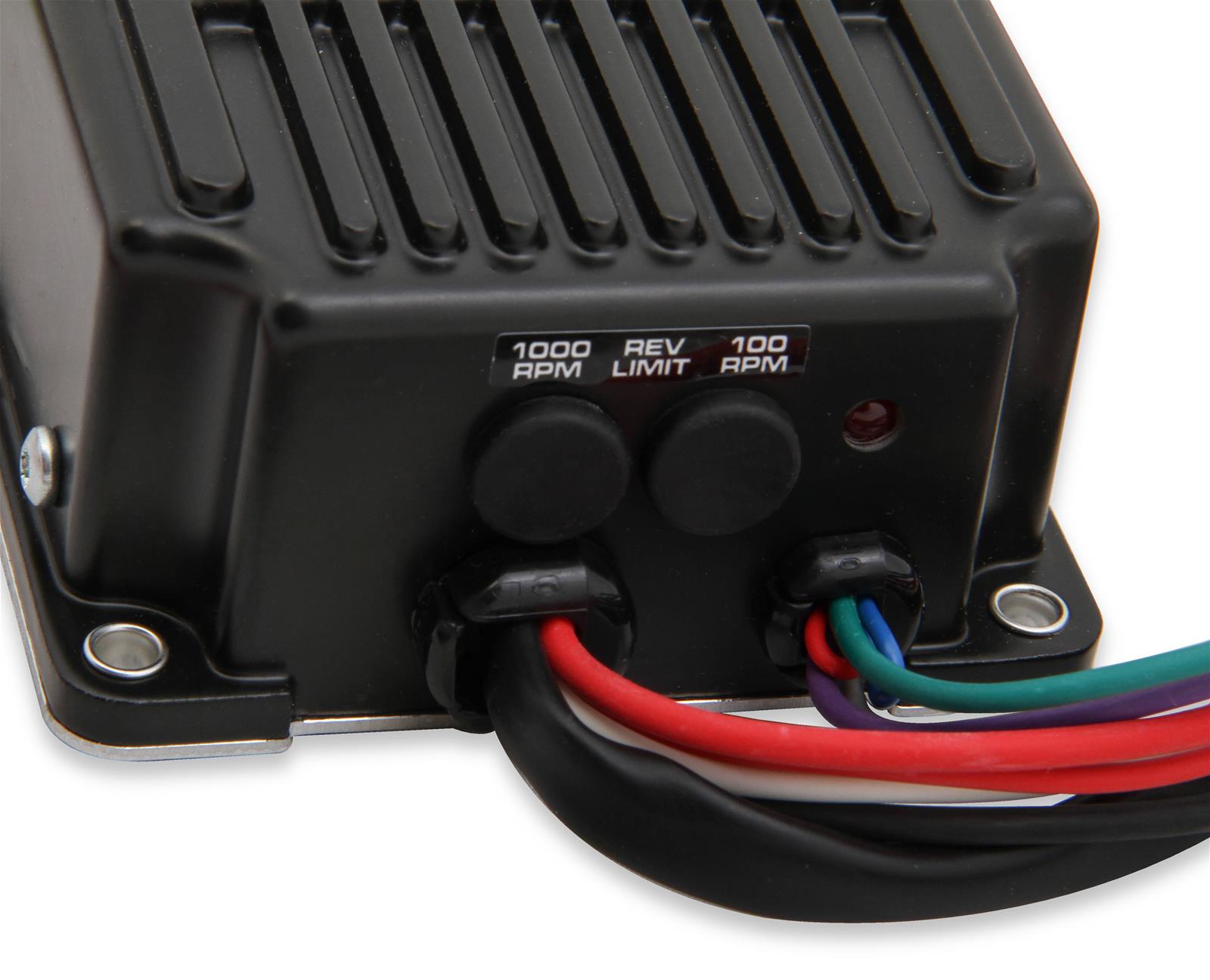

* Adjustable rev limiter for over-rev protection with rotary dials in 100 rpm increments
* Works on 12 V electrical systems using a distributor
* Easily connects to magnetic pickup, electronic, and even points distributors


Brand: MSD Ignition
Manufacturer's Part Number: 6415
Part Type: Ignition Boxes
Product Line: MSD 6EFI Ignitions
HP Direct Part Number: MSD-6415
UPC: 085132064151
Ignition Box Output: Capacitive discharge
Circuitry: Digital
Rev Limiter: Yes
Timing Retard: None
Data Acquisition: No
CD Voltage Output to Coil: 435 V
Current Draw: 0.7 amps per 1,000 rpm
Spark Output (millijoules): 95 mJ
Minimum Operating Voltage: 10 V
Maximum Operating Voltage: 18 V
Length (in.): 6.000 in.
Height (in.): 1.750 in.
Width (in.): 3.500 in.
Ignition Box Color: Black
Coil Included: No
Quantity: Sold individually.
Special Attention: Cannot be used with a distributorless ignition.
CARB EO Number(s): D-115-26
Emissions: California EO Approved
