MSD 6EFI Ignition Coils 86415

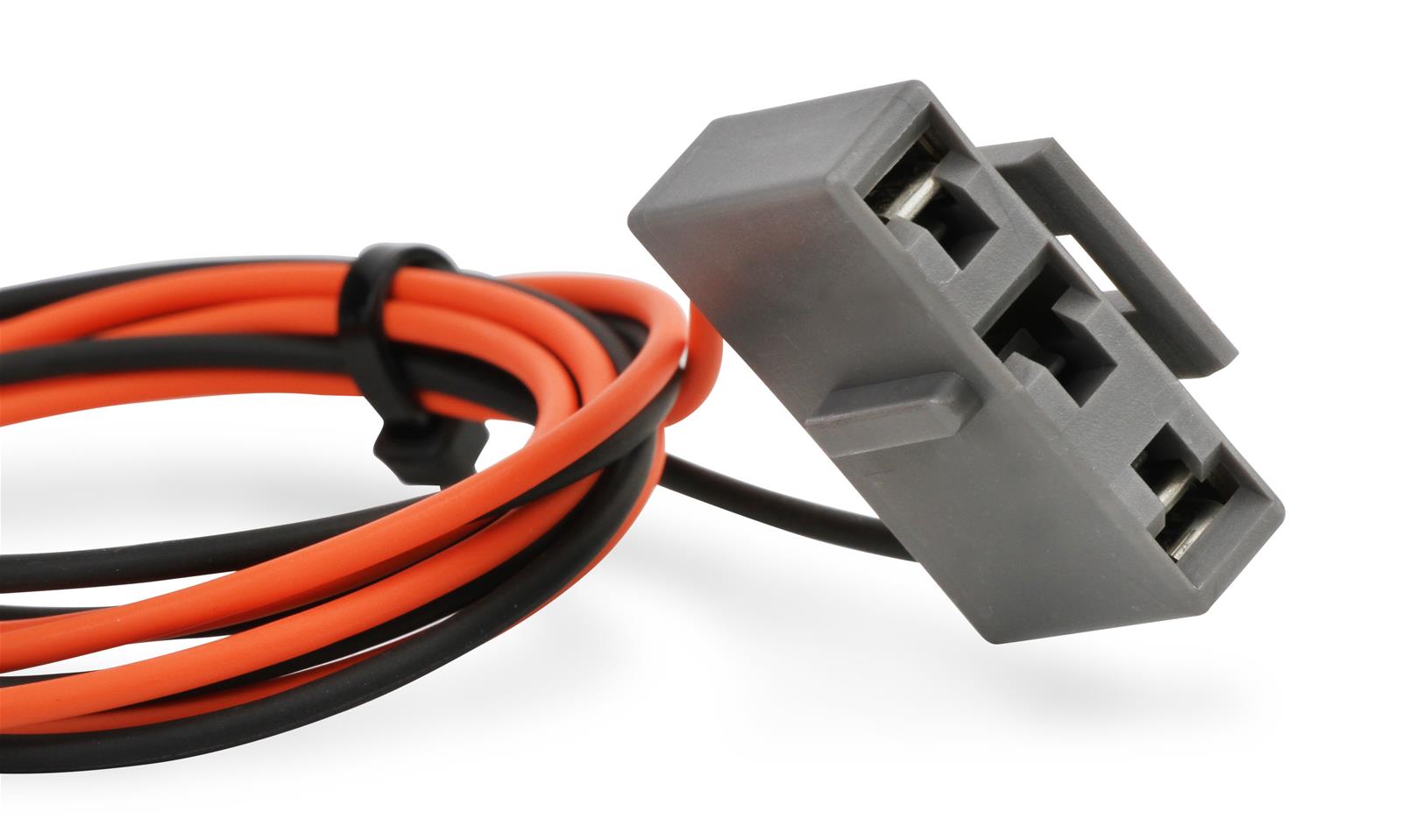

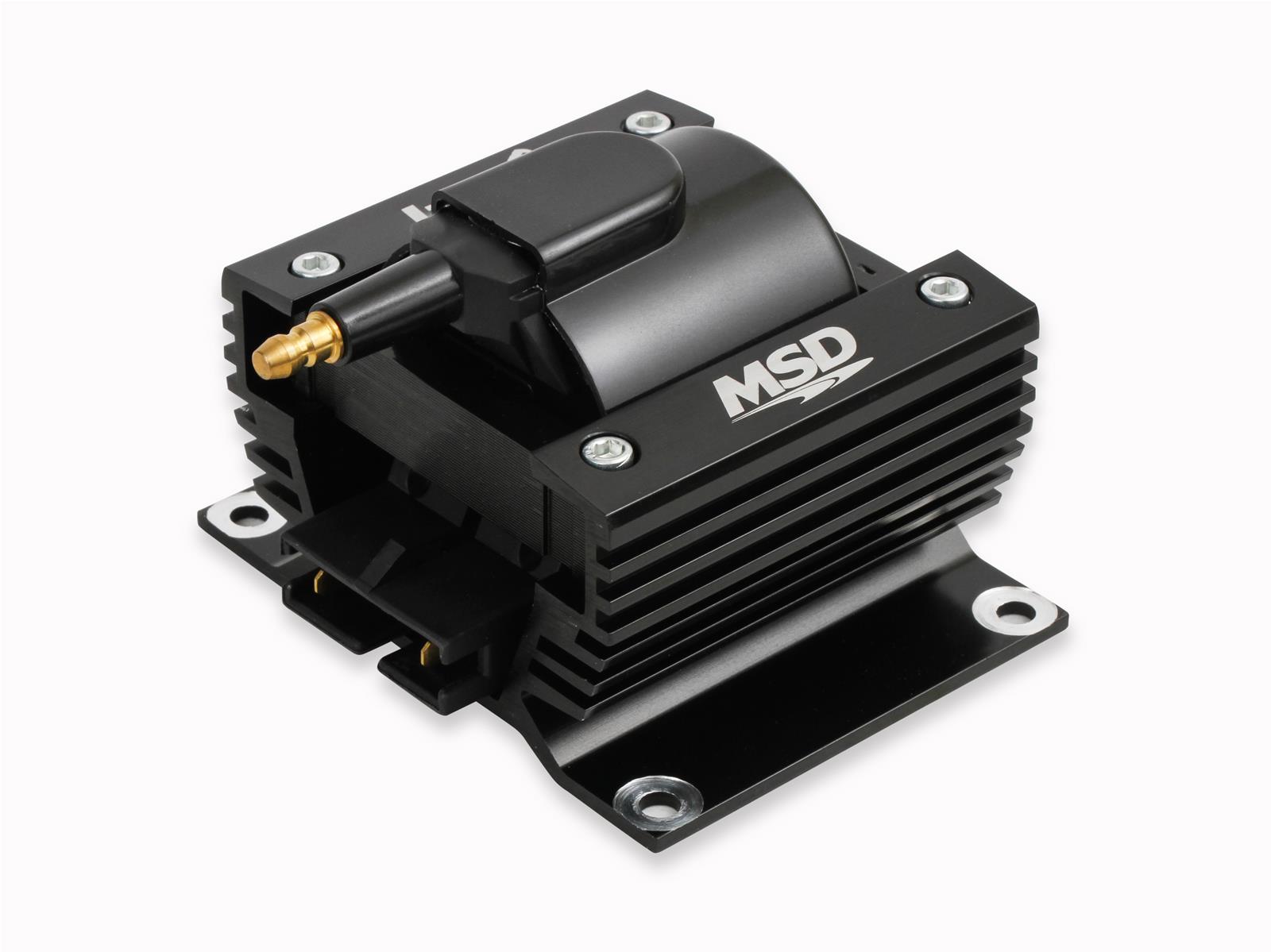

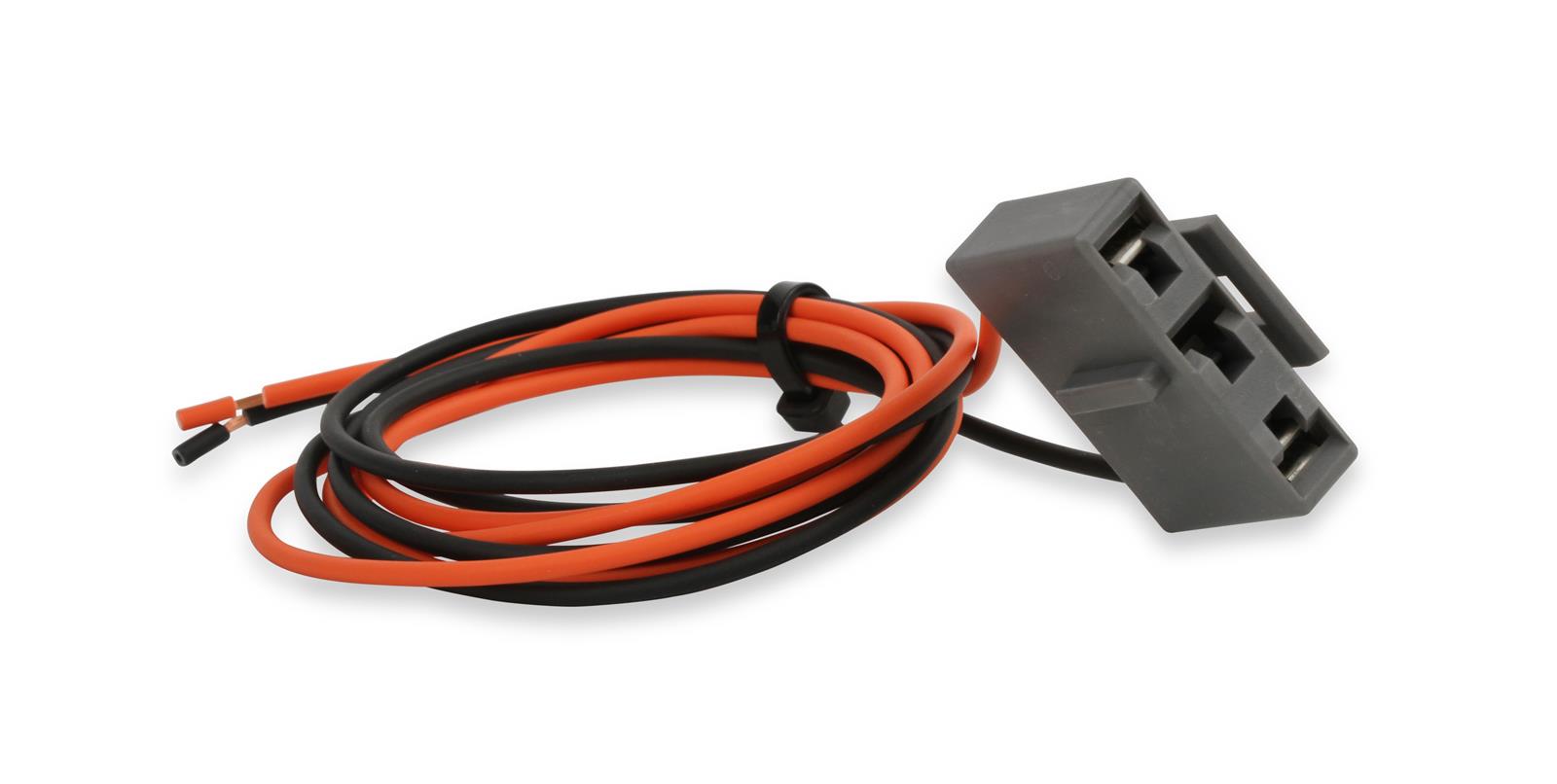

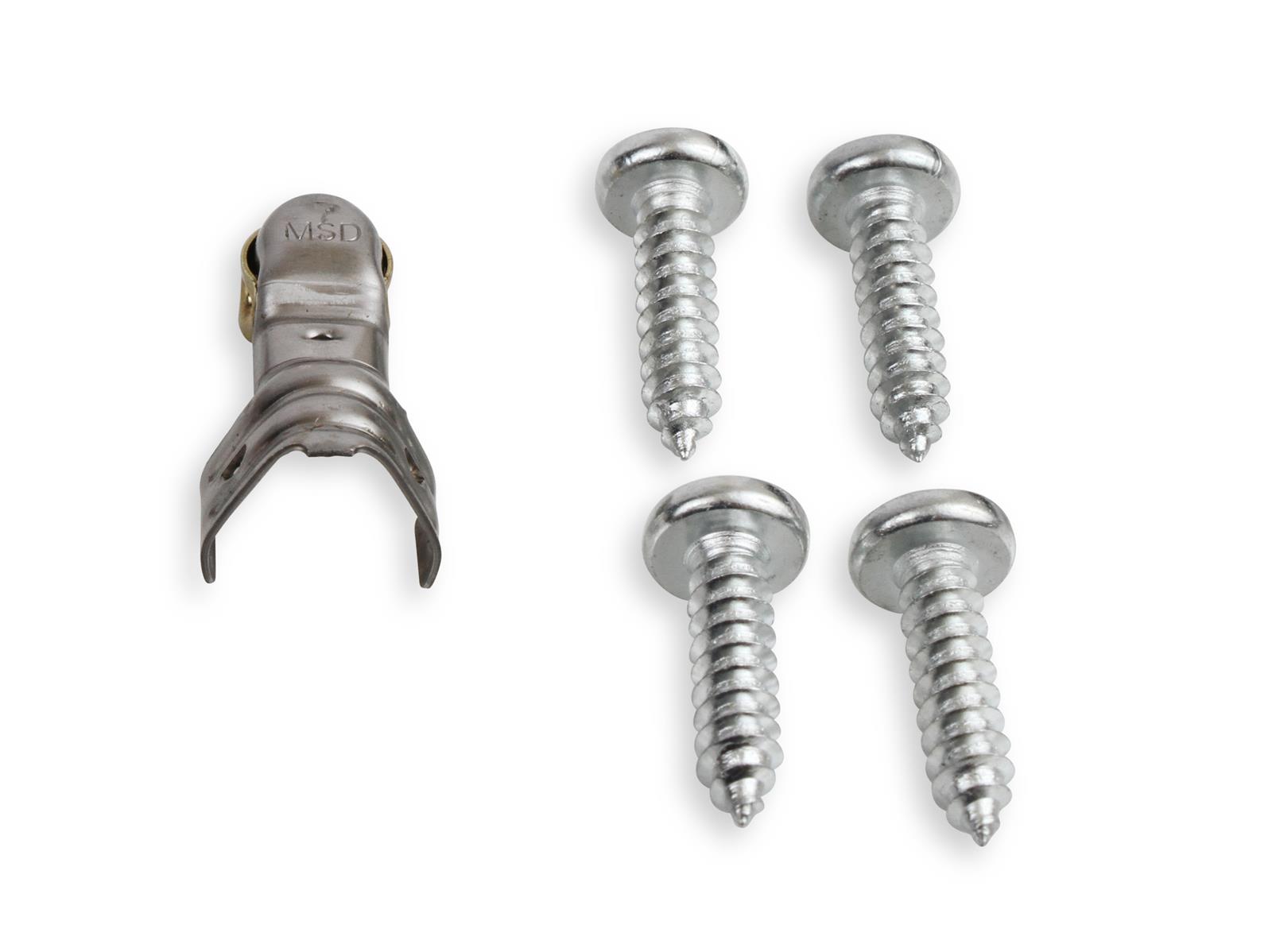

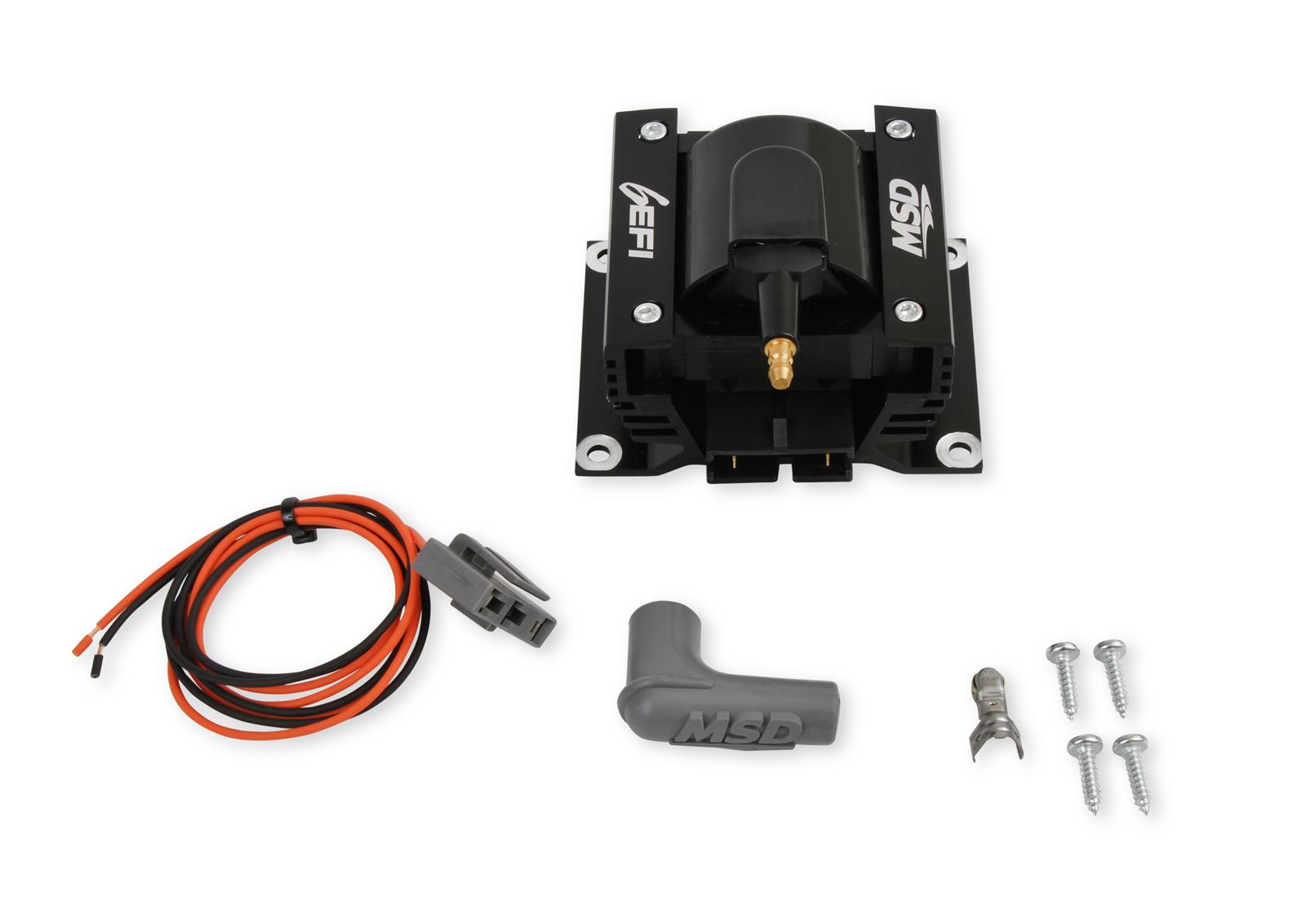

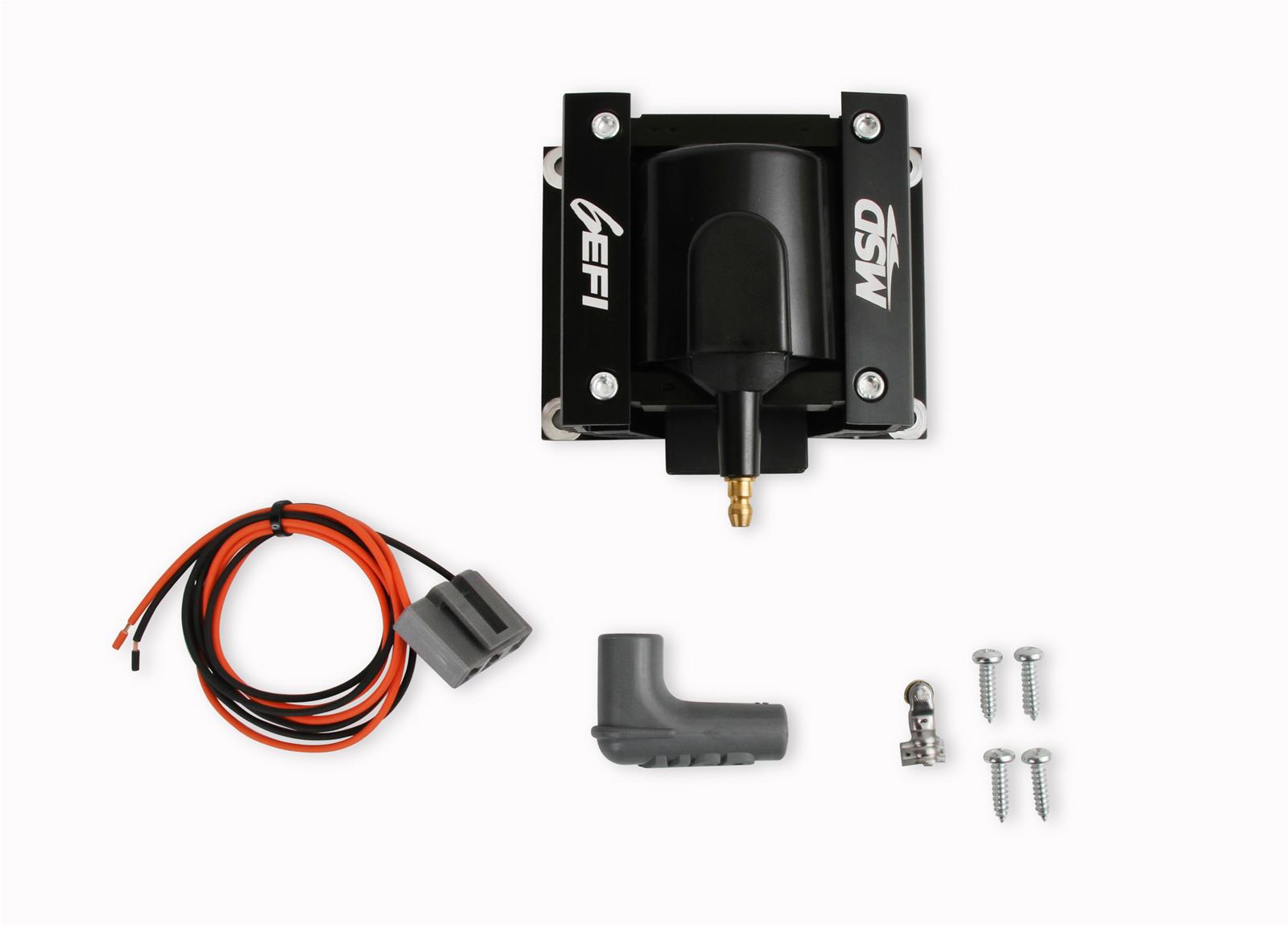

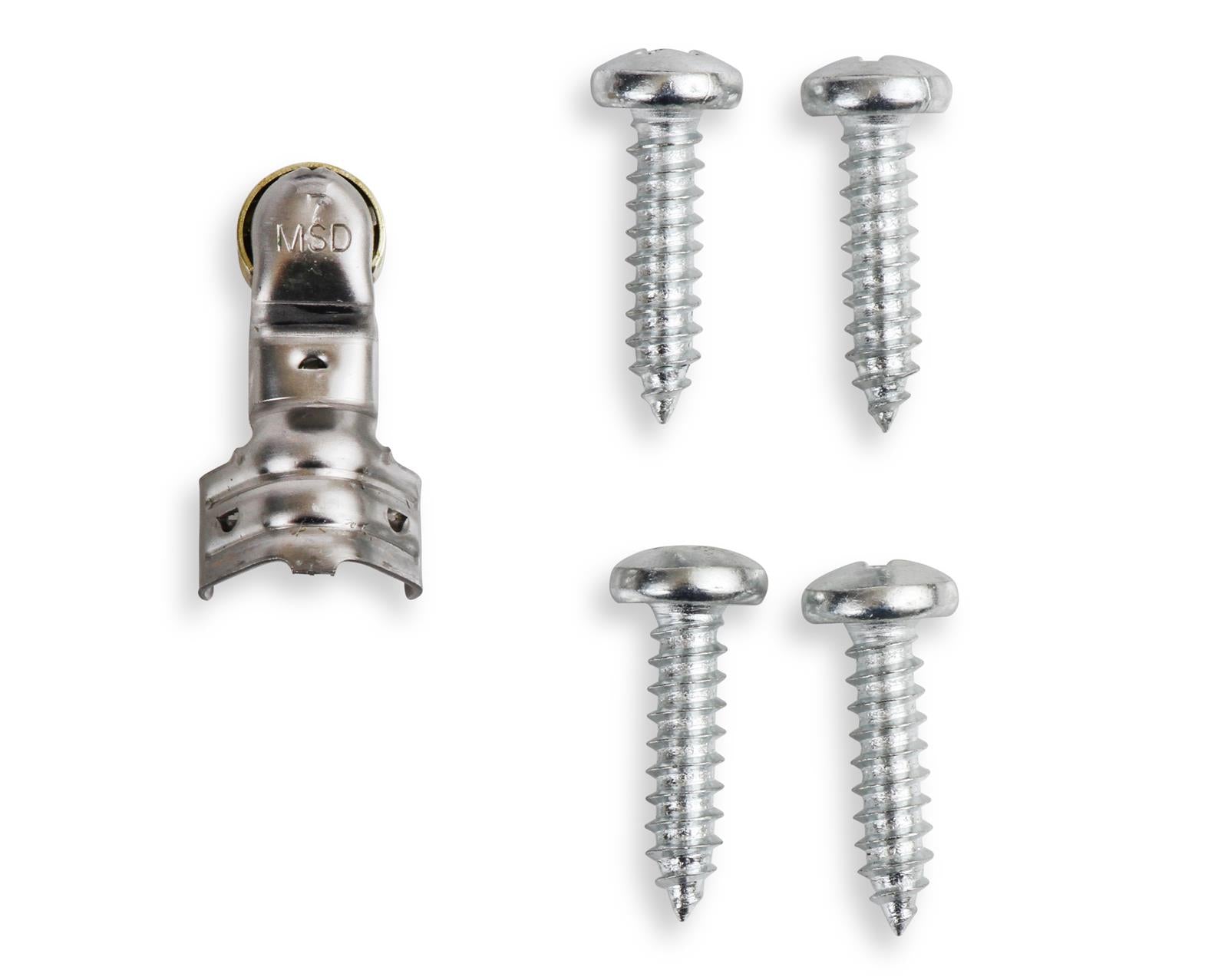

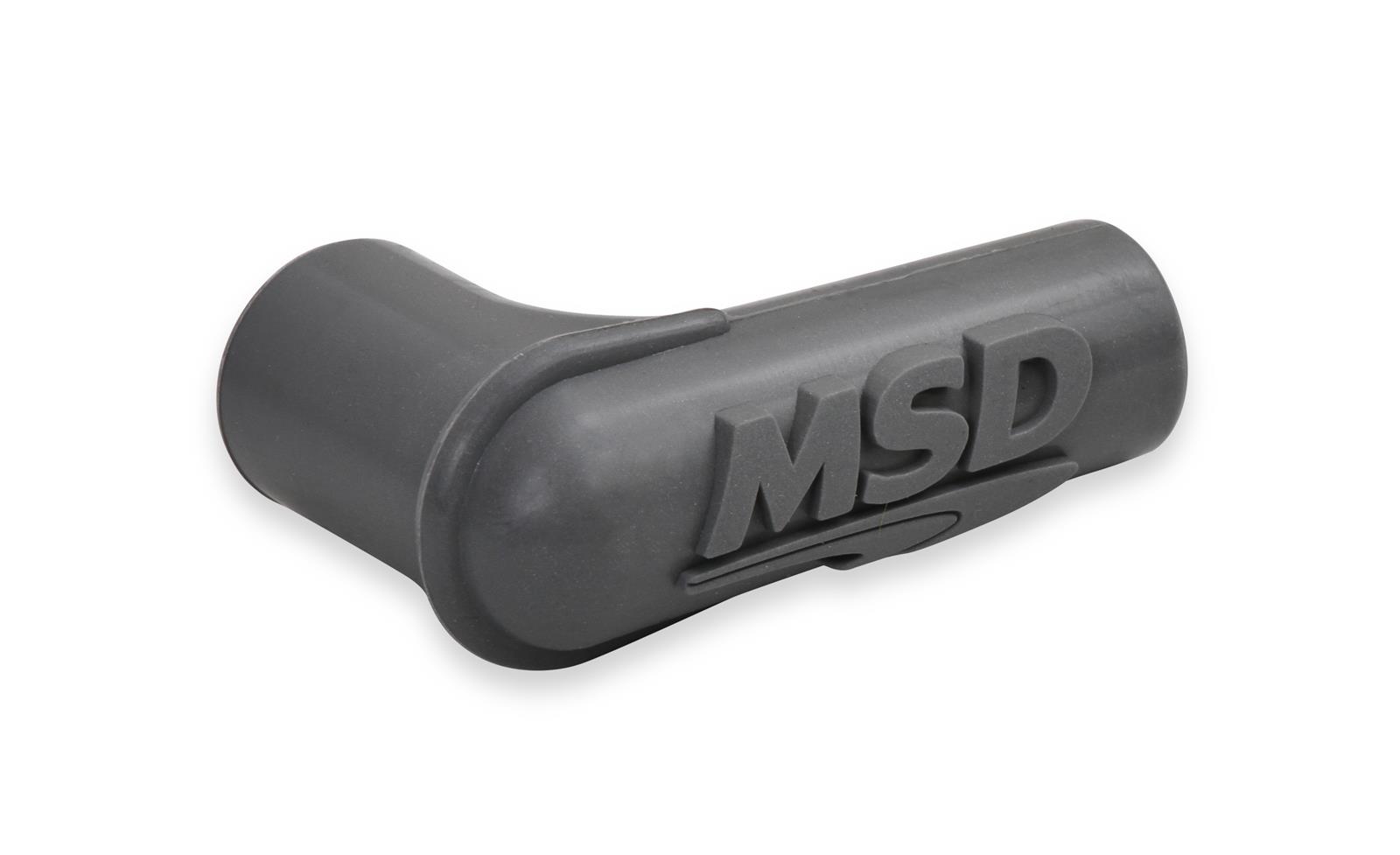

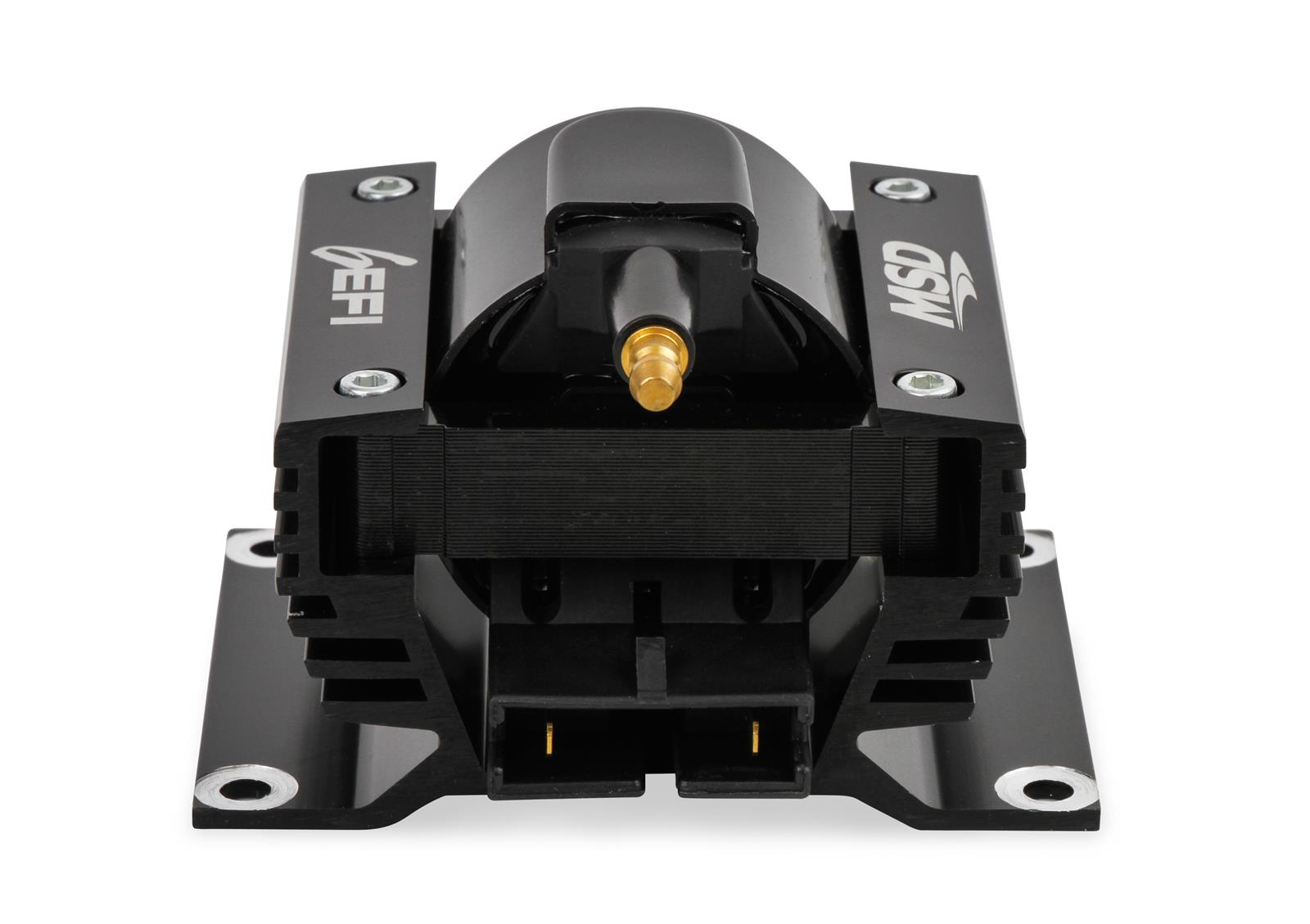

MSD 6EFI ignition coils produce high-spark energy to ensure the air and fuel in your engine get burned completely to improve starting, throttle response, and supply powerful spark throughout the RPM range. Designed to match the 6EFI ignition, the 6EFI coil has a clean black appearance with logos laser-etched on a black anodized aluminum mounting bracket, and is supplied with four, self-tapping mounting screws, plus a plug-in harness with color-coded wires to facilitate an easy installation. When running an MSD Atomic EFI or similar throttle body fuel injection system with a 6EFI ignition box, the 6EFI ignition coil is made for you! In addition, an MSD spark plug wire boot and terminal come in the kit to convert your existing coil wire from a female socket connection, to male high energy ignition (H.E.I.) connection if needed.Brand: MSD Ignition
Manufacturer's Part Number: 86415
Part Type: Ignition Coils
Product Line: MSD 6EFI Ignition Coils
HP Direct Part Number: MSD-86415
UPC: 090127070383
Coil Style: Remote mount
Primary Resistance: 0.430 ohms
Coil Internal Construction: Epoxy
Coil Wire Attachment: Male/HEI
Coil Color: Black
Maximum Voltage: 45,000 V
Turns Ratio: 80:1
Secondary Resistance: 4.60K ohms
Inductance: 4.34 mH
Peak Current: 300 mA
Spark Duration: 300 uS
Mounting Bracket Included: Yes
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Square
Quantity: Sold individually.
Notes: Designed to be used with MSD 6EFI ignition box part number 6415.
