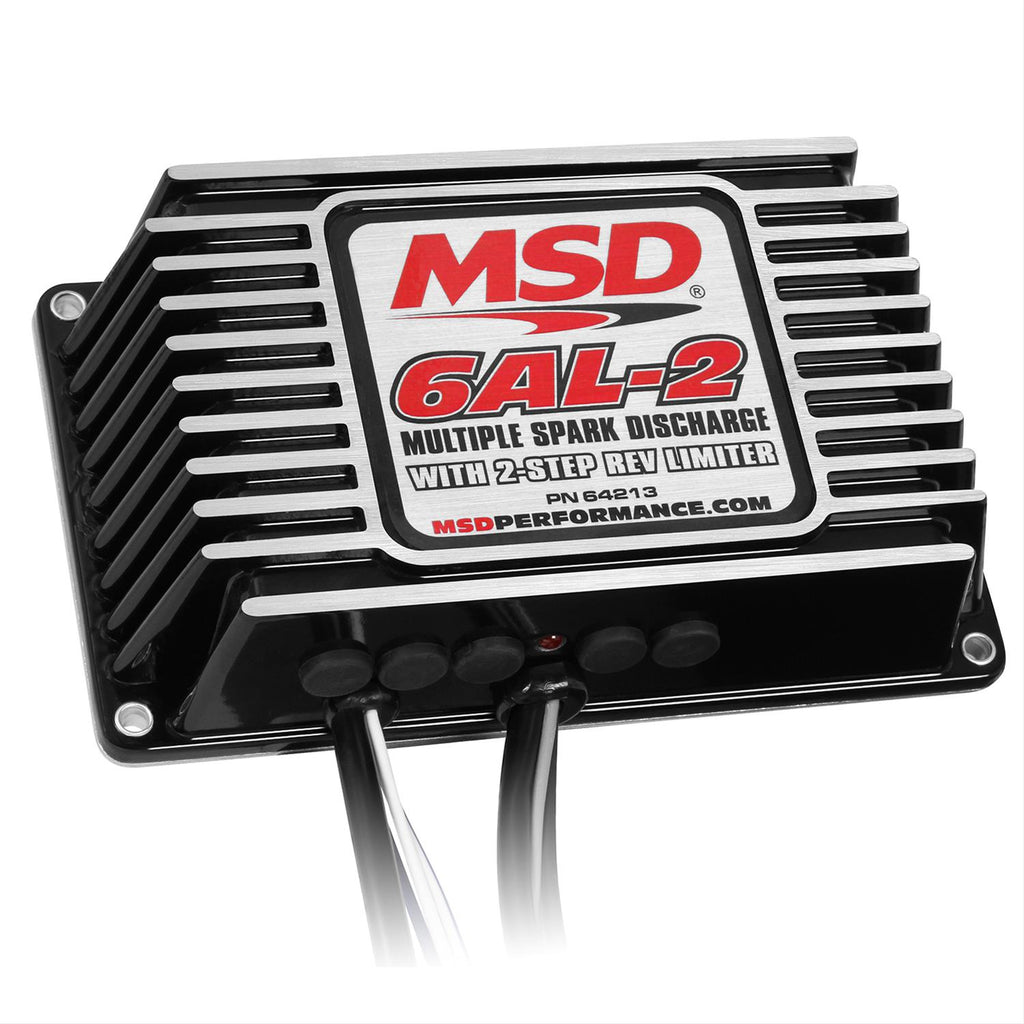

MSD 6AL-2 Ignition Boxes 64213

MSD is excited to announce the next generation of 6-Series ignition controls--the 6AL-2! These all-new ignition controls combine a new housing, new digital controls, and more power in a sleek package. You still receive the 20 degree duration of multiple sparks, combined with higher output to ensure complete combustion. There is a 2-Step rev control built into the housing, but there are no rpm modules! Adjustments are made via four rotary dials for 100 rpm increment control! The all-new capacitive discharge ignition will easily connect to nearly any 12 V negative ground distributor system, even Hall-effect pickups. They offer higher output, with up to 135mJ and 535 V, and accept points and mag pickup triggers.Brand: MSD Ignition
Manufacturer's Part Number: 64213
Part Type: Ignition Boxes
Product Line: MSD 6AL-2 Ignition Boxes
HP Direct Part Number: MSD-64213
UPC: 085132642137
Ignition Box Output: Capacitive discharge
Circuitry: Digital
Rev Limiter: Yes
Timing Retard: None
Data Acquisition: No
CD Voltage Output to Coil: 535 V
Current Draw: 0.7 amps per 1,000 rpm
Spark Output (millijoules): 135 mJ
Minimum Operating Voltage: 12 V
Maximum Operating Voltage: 18 V
Length (in.): 7.000 in.
Height (in.): 2.000 in.
Width (in.): 4.000 in.
Ignition Box Color: Black
Coil Included: No
Warranty: 1-year
Quantity: Sold individually.
Notes: Vibration mounts included.
