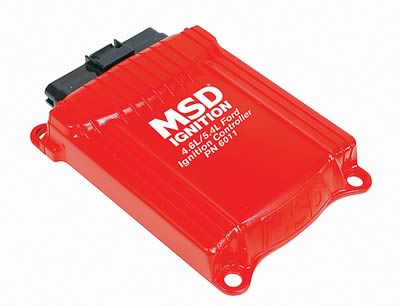

MSD 6-MOD Ford Modular Engine Controller 6011

The 6-Mod Ignition Controller was originally developed for the 4.6 and 5.4-liter modular motors that were fed through a carburetor rather than an electronic fuel injection system. However, with the useful options that the 6-Mod provides, such as two rev limits, a step retard and easy control over the timing, the EFI people wanted a way to take advantage of the adjustment. The harness kit provides a splice-free installation of the MSD 6-Mod Controller to factory equipped EFI vehicles making installation a snap. All of the connectors plug directly to the factory units so there is no cutting or splicing of your factory wires. Once installed, the 6-Mod allows users to advance or retard the factory's timing curve, program a step retard for use with nitrous systems or even map out a timing curve through a laptop by using MSD's Pro-Data+ software.Brand: MSD Ignition
Manufacturer's Part Number: 6011
Part Type: Timing Controllers, Electronic
Product Line: MSD 6-MOD Ford Modular Engine Controller
HP Direct Part Number: MSD-6011
UPC: 085132060115
Circuitry: Digital
Controls Ignition Advance: Yes
Controls Ignition Retard: Yes
Controller Activation: Programmable
Adjustable: Yes
Adjustment Style: PC
Ignition Box Required: No
Compatible with Multiple Coil Ignitions: Yes
Quantity: Sold individually.
Notes: Program timing curves, RPM limits and step retard with PC.
