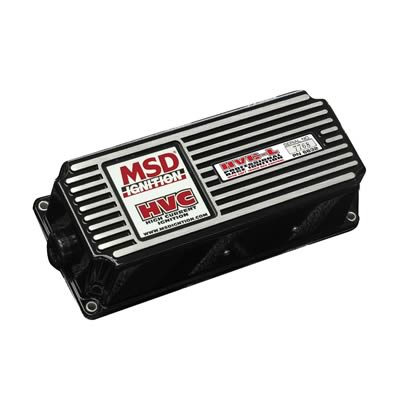

MSD 6 HVC-L CD Ignitions 6632

The MSD 6 HVC-L CD ignitions are powerful new systems designed primarily for Circle Track and events that require high rpm for a long duration. Only the best high-end components have been put into this exclusive design for more output energy and voltage, with less current draw. Each transformer is hand-wound for more power at lower temperatures. Field Effect transistors accept higher loads than standard transistors. A faster, more efficient Integrated Gate Bi-Polar transistor improves coil saturation. They feature an optimum heat sink that gives increased heat dissipation, large capacitors that give you full-strength sparks at any rpm, a rev limiter, and a clear silicone casing that protects circuits from vibration. MSD wired them with NASCAR-mandated, 6-pin, weathertight connectors and a special 4-pin connector plug that connects directly into MSD's Soft Touch rev control, which is available separately.Brand: MSD Ignition
Manufacturer's Part Number: 6632
Part Type: Ignition Boxes
Product Line: MSD 6 HVC-L CD Ignitions
HP Direct Part Number: MSD-6632
UPC: 085132066322
Ignition Box Output: Capacitive discharge
Circuitry: Analog
Rev Limiter: Yes
Timing Retard: None
Data Acquisition: No
CD Voltage Output to Coil: 550 V
Current Draw: 0.7 amps per 1,000 rpm
Spark Output (millijoules): 150 mJ
Minimum Operating Voltage: 12 V
Maximum Operating Voltage: 18 V
Length (in.): 8.000 in.
Height (in.): 2.250 in.
Width (in.): 4.000 in.
Ignition Box Color: Black
Coil Included: No
Warranty: 1-year
Quantity: Sold individually.
Notes: Soft touch rev limiter.
