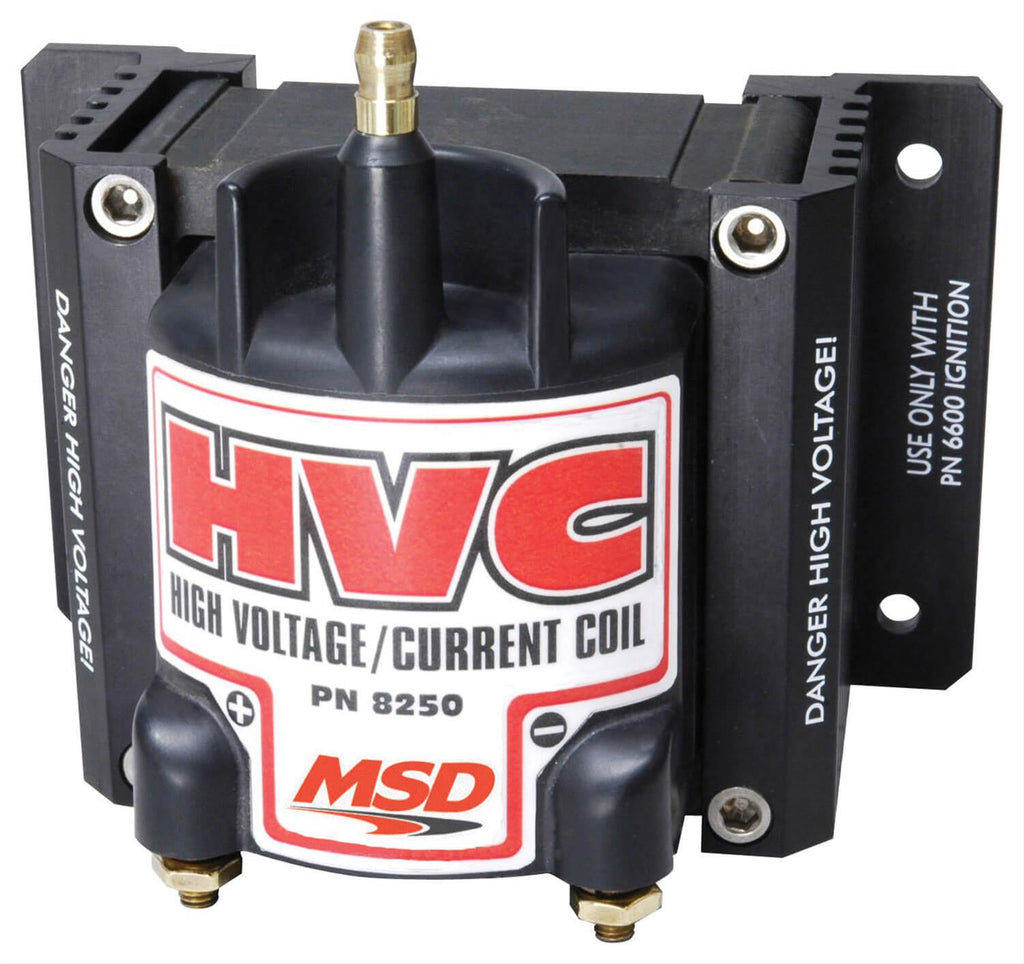

MSD 6 HVC Coils 8250

Coils have always had to compromise voltage output against current output that is until now. MSD 6 HVC coils are exclusively designed for the HVC Professional Racing Ignition Control, and are a must to be used with MSD 6 HVC ignitions. These HVC coils deliver high voltage to ionize the plug gap, while the spark glows with high current to produce maximum voltage and energy. To accomplish this combination of higher voltage and current, MSD uses an E-core winding design, which is an efficient design where less loss occurs during transfer of electricity due to the closed core of the coil. Give your ride the boost power it needs, with HVC coils from MSD.Brand: MSD Ignition
Manufacturer's Part Number: 8250
Part Type: Ignition Coils
Product Line: MSD 6 HVC Coils
HP Direct Part Number: MSD-8250
UPC: 085132082506
Coil Style: Remote mount
Primary Resistance: 0.070 ohms
Coil Internal Construction: Epoxy
Coil Wire Attachment: Male/HEI
Coil Color: Black
Maximum Voltage: 40,000 V
Turns Ratio: 100:1
Secondary Resistance: 360.00K ohms
Inductance: 3.00 mH
Mounting Bracket Included: Yes
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Square
Height (in.): 5.000 in.
Length (in.): 5.000 in.
Width (in.): 5.000 in.
Quantity: Sold individually.
Notes: For use with MSD 6601 or 6631 only.
