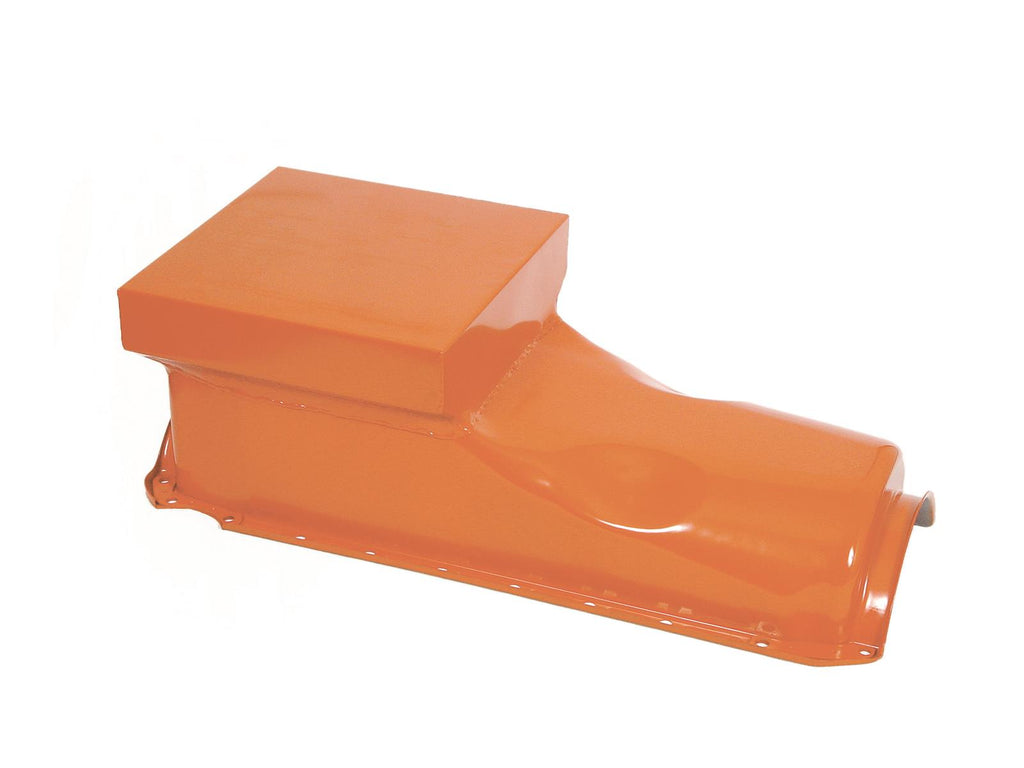

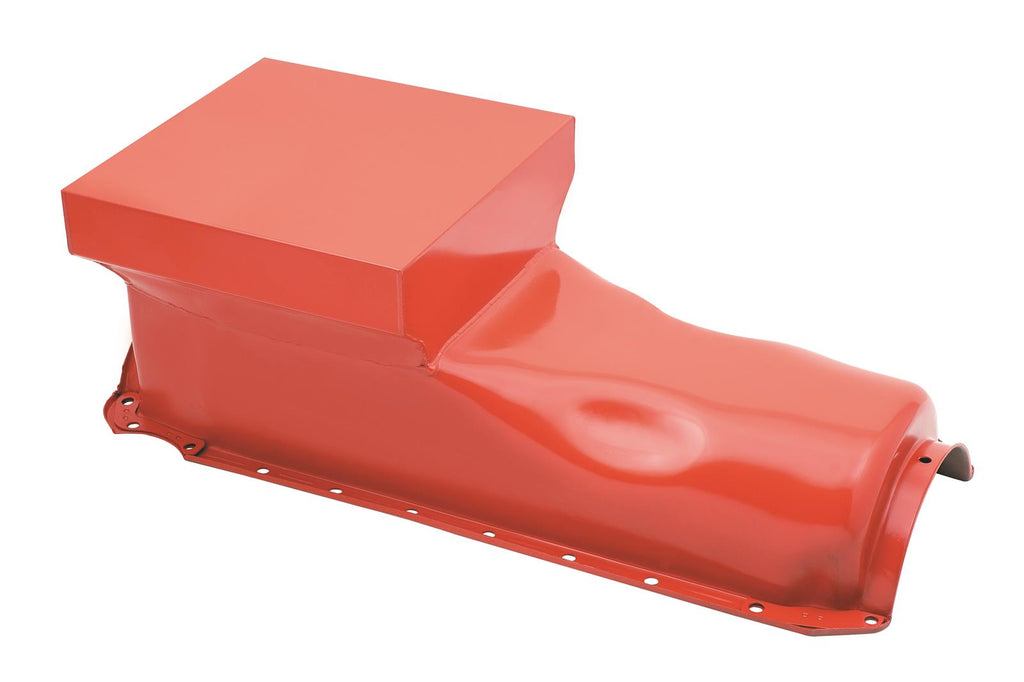

Mr. Gasket Low Profile Oil Pans 7606G

The low profile sump design of these Mr. Gasket oil pans allows increased oil capacity without restricting ground clearance. Specially designed internal trap door baffling, combined with custom oil pump pick-ups, keep oil pressure fluctuation to a minimum. These oil pans feature beautiful chrome plating or a bright orange paint finish. They're ideal for both street and racing applications.Brand: Mr. Gasket
Manufacturer's Part Number: 7606G
Part Type: Oil Pans
Product Line: Mr. Gasket Low Profile Oil Pans
HP Direct Part Number: MRG-7606G
UPC: 084041176061
Sump Style: Wet
Oil Pan Style: Street/Strip
Rear Main Seal Style: 2-piece
Sump Location: Rear
Dipstick Location: Passenger side
Oil Pan Capacity: 6.00 quarts
Stroker Clearanced: No
Dipstick Provision: Yes
Dipstick Included: No
Oil Pan Depth (in.): 8.250
Oil Pan Material: Steel
Oil Pan Color: Orange
Baffled: Yes
Kicked Out: Yes
Kickout Position: Driver and passenger side
Windage Tray Included: No
Pickup Included: No
Oil Pump Included: No
Oil Pump Driveshaft Included: No
Crank Scraper Included: No
Drain Plug Thread Size: 1/2 in.-20
Gaskets Included: No
Hardware Included: No
Quantity: Sold individually.
