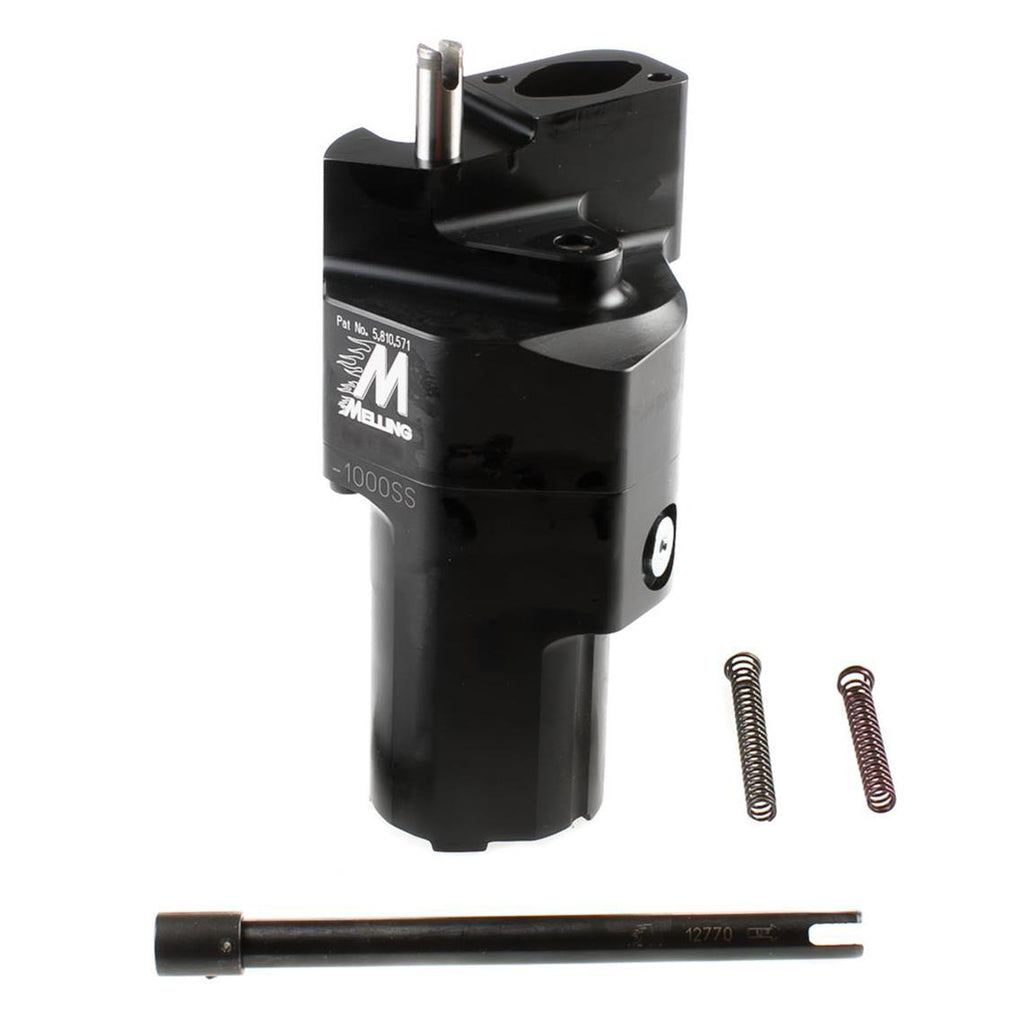

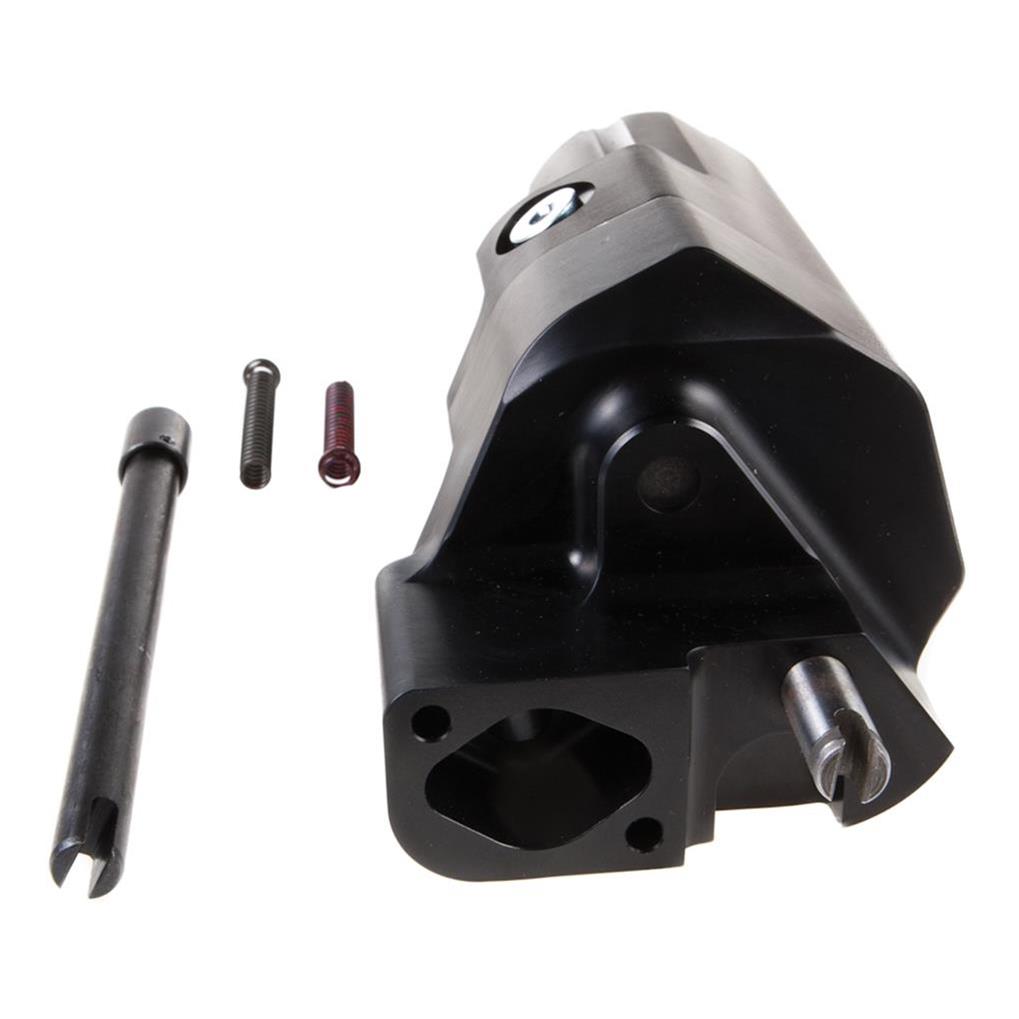

Melling Select Billet Aluminum Oil Pumps 10070-1000SS

If you are serious about building the ultimate wet sump system, then these Melling one-piece billet aluminum oil pumps with their integral screen pickup are the only way to go. These pumps not only eliminate the potential disaster of the oil pump pickup falling off, but they also offer smoother oil flow with less internal drag, resulting in an actual increase of 5 to 6 hp. Melling Select billet aluminum oil pumps will fit in your existing Moroso, Milodon, and Stef's wet sump pans, there is no need to buy a new pan or to modify your old one. Melling Select billet aluminum oil pumps offer the absolute latest in cutting-edge technology.

Additional features include:

* Billet aluminum housing and cover with anodized hardcoat
* Standard or high volume billet spur gears
* Multiple pressure settings
* Chromoly driveshaft extended into the pump cover for support

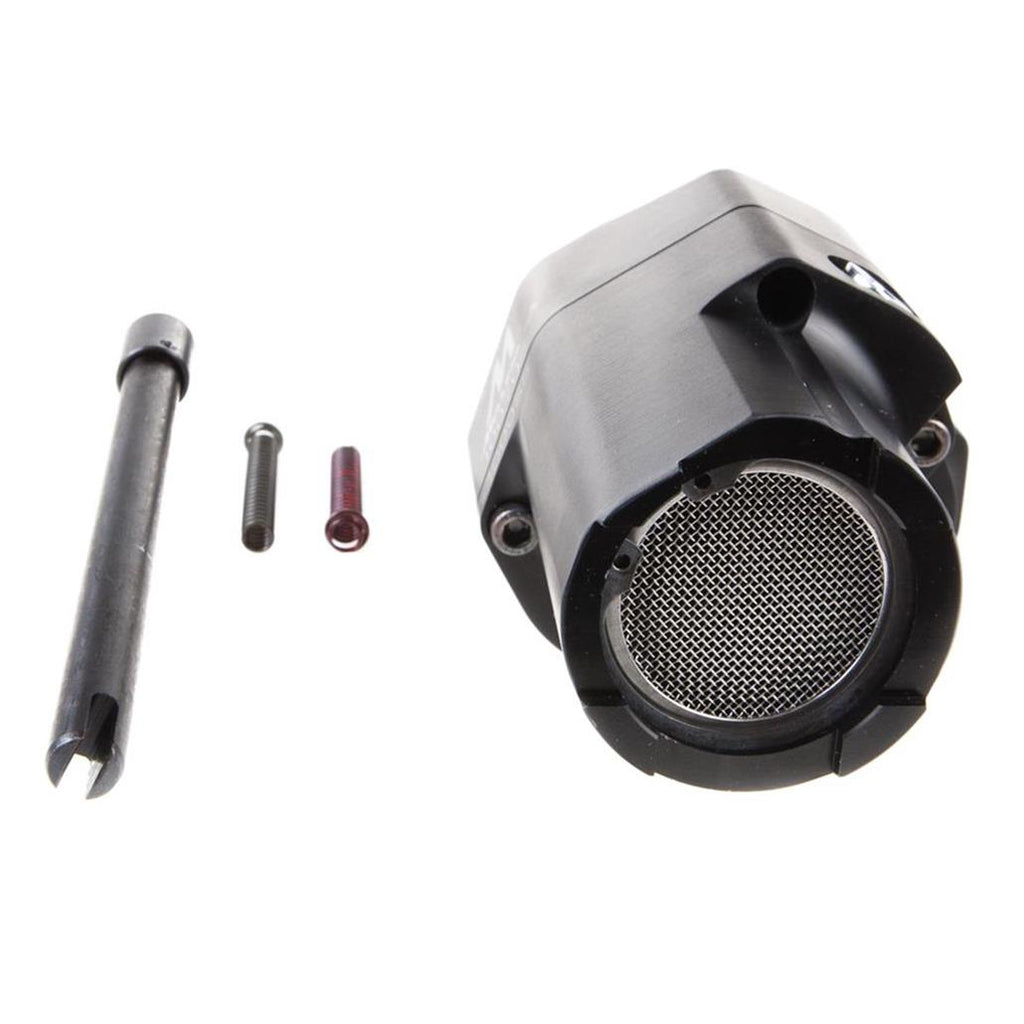

* Integral pickup screen assembly with stainless steel wire mesh
* Robust CNC-manufactured design
* Chromoly intermediate shaft, optional pressure relief springs, and instructionsBrand: Melling
Manufacturer's Part Number: 10070-1000SS
Part Type: Oil Pumps
Product Line: Melling Select Billet Aluminum Oil Pumps
HP Direct Part Number: MEL-10070-1000SS
UPC: 729295104360
Oil Pump Style: Wet sump
Oil Pump Volume: High-volume
Oil Pump Pressure: Standard-pressure
High-Pressure Oil Pump Spring Included: Yes
Pickup Included: Yes
Oil Pan Depth (in.): 10.000
Hardened Driveshaft Recommended: Yes
Oil Pump Driveshaft Included: Yes
External Oil Pump Pulley Included: No
External Oil Pump Belt Included: No
External Oil Pump Mounting Brackets Included: No
Hardware Included: No
Gaskets Included: No
Remanufactured: No
Quantity: Sold individually.
Notes: Billet aluminum housing with billet steel gear and chrome moly drive shaft. Maximum pan depth 10.00 in. Multiple pressure settings, Heavy duty shaft support.
