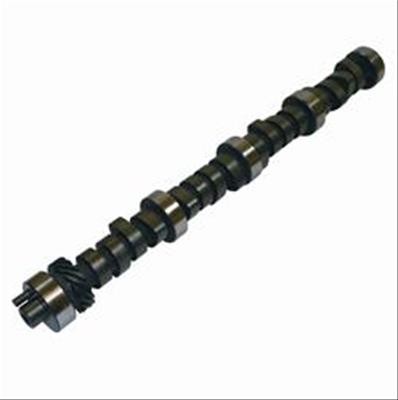

Melling M-Select Class 4 Camshafts 22400

If you're serious about racing, then consider running a Melling M-Select Class 4 camshaft. These high performance cams offer rough idle quality with mid- to high-rpm torque and horsepower. Class 4 camshafts are designed for use on manual or automatic transmissions with a very high stall converter. You've made power improvements in carburetion and exhaust. Now match your work with the right camshaft—Melling M-Select Class 4. Order the model designed for your vehicle and engine application.Brand: Melling
Manufacturer's Part Number: 22400
Part Type: Camshafts
Product Line: Melling M-Select Class 4 Camshafts
HP Direct Part Number: MEL-22400
UPC: 729295501237
Cam Style: Solid flat tappet
Camshaft Use: Street/Strip
Intake Duration at 050 inch Lift: 257
Exhaust Duration at 050 inch Lift: 270
Duration at 050 inch Lift: 257 int./270 exh.
Advertised Intake Duration: 304
Advertised Exhaust Duration: 312
Advertised Duration: 304 int./312 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.494 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.512 in.
Valve Lift with Factory Rocker Arm Ratio: 0.494 int./0.512 exh.
Lobe Separation (degrees): 112
Intake Valve Lash: 0.022 in.
Exhaust Valve Lash: 0.024 in.
Remanufactured: No
Computer-Controlled Compatible: No
Valve Springs Required: Yes
Quantity: Sold individually.
