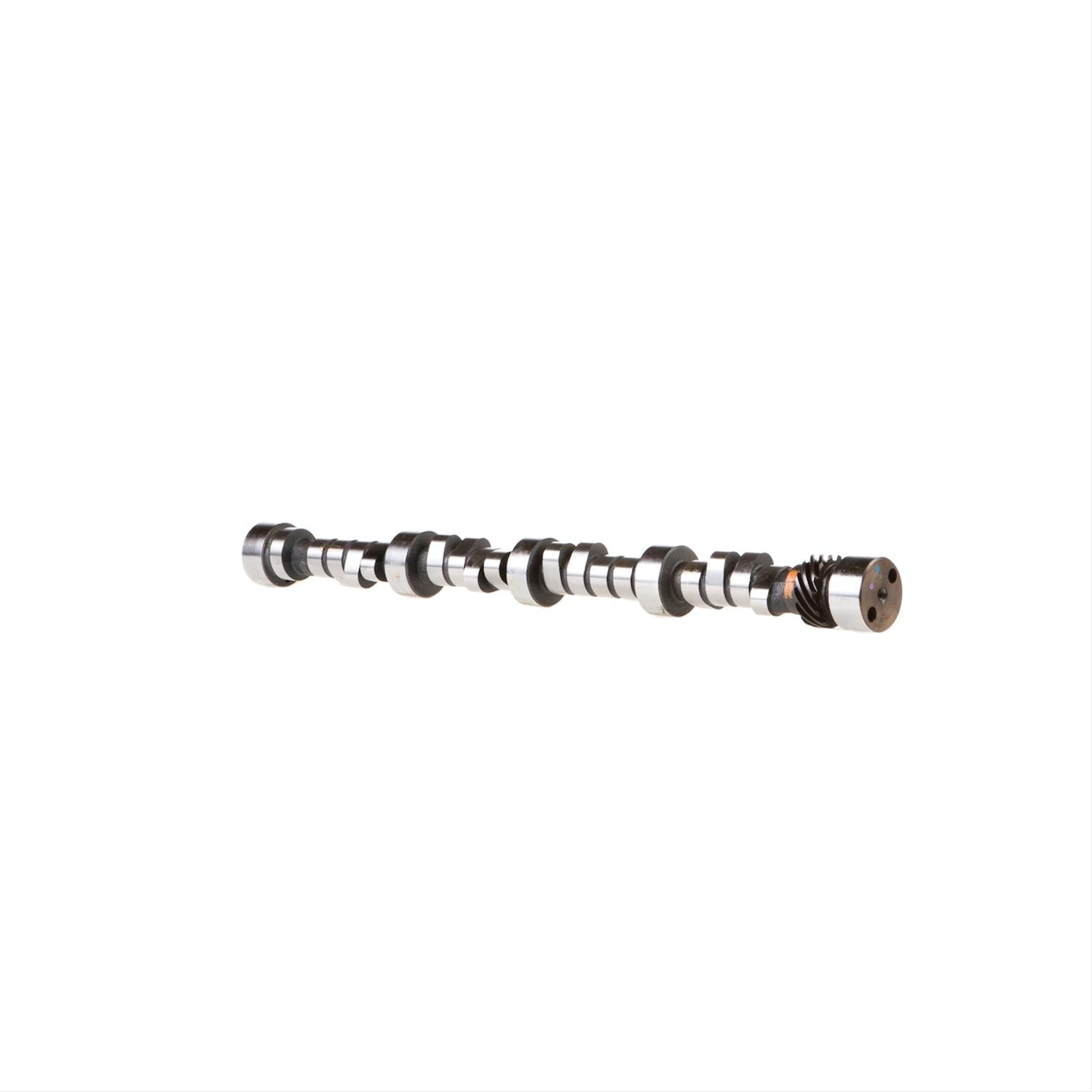

Melling M-Select Class 1 Camshafts 22136

Melling M-Select Class 1 camshafts are part of their full line of high performance camshafts graded from Class 1 to Class 4. Class 1 camshafts have durations of 200 to 215 degrees at .050 in. lift. They feature good idle quality with strong low-rpm torque and midrange performance. These cams will work well with stock or slightly modified engines with either manual or automatic transmissions. M-Select Class 1 camshafts may have lower vacuum than OE camshafts.Brand: Melling
Manufacturer's Part Number: 22136
Part Type: Camshafts
Product Line: Melling M-Select Class 1 Camshafts
HP Direct Part Number: MEL-22136
UPC: 729295141273
Cam Style: Hydraulic roller, Retro-fit
Camshaft Use: Street
Basic Operating RPM Range: 1,500-5,000
Intake Duration at 050 inch Lift: 215
Exhaust Duration at 050 inch Lift: 230
Duration at 050 inch Lift: 215 int./230 exh.
Advertised Intake Duration: 284
Advertised Exhaust Duration: 310
Advertised Duration: 284 int./310 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.470 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.480 in.
Valve Lift with Factory Rocker Arm Ratio: 0.470 int./0.480 exh.
Lobe Separation (degrees): 110
Remanufactured: No
Computer-Controlled Compatible: No
Valve Springs Required: Yes
Quantity: Sold individually.
Notes: For use with retrofit roller lifters in non-roller block. Reduced base circle.
