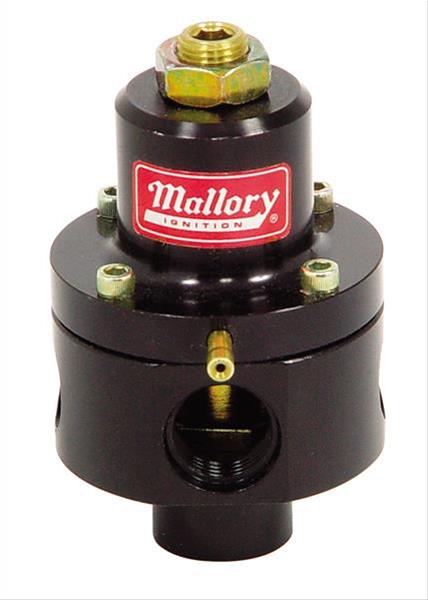

Mallory Universal Fuel Pressure Regulators for Fuel Injection 29389

Mallory universal fuel pressure regulators for fuel injection feature CNC-machined billet aluminum construction and a special quick-action diaphragm design. Flow-matched inlet and outlets provide perfect pump matching, and enable you to fine-tune the fuel injection for maximum performance. These units also offer a built-in fuel pressure port, and built-in pressure compensating for supercharged or turbocharged engines. Fully serviceable, Mallory regulators are available for high- and low-pressure applications, for use with gasoline or alcohol/methanol.Brand: Mallory Ignition
Manufacturer's Part Number: 29389
Part Type: Fuel Pressure Regulators
Product Line: Mallory Universal Fuel Pressure Regulators for Fuel Injection
HP Direct Part Number: MAA-29389
UPC: 085132293896
Regulator Pressure (psi): 30-100
Regulator Style: Return
Regulator Location: Inline
Boost/Vacuum Reference Port: Yes
Boost/Vacuum Rise Ratio: 1:1
Gauge Port: Yes
Inlet Quantity: 1
Regulator Inlet Size: -8 AN
Inlet Attachment: Female straight cut O-ring
Outlet Quantity: 3
Regulator Outlet Size: 3/8 in. NPT
Outlet Attachment: Female threads
Return Fitting Size: -8 AN
Return Attachment: Female straight cut O-ring
Fittings Included: Yes
Regulator Material: Aluminum
Regulator Color: Black
Rebuildable: Yes
Mounting Bracket Included: Yes
Remanufactured: No
Quantity: Sold individually.
