Description

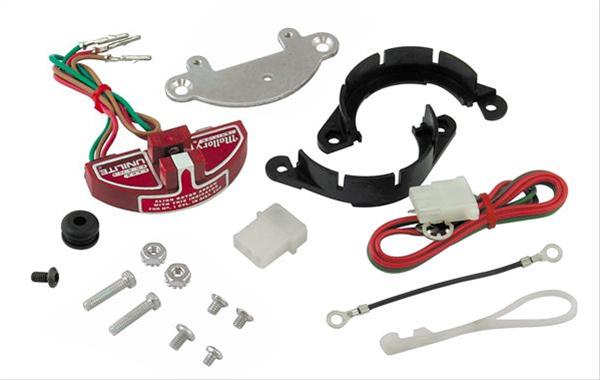

Convert your OEM-style breaker points and condenser to the more reliable Unilite ignition from Mallory. These self-contained units have no moving parts to wear out, so they provide many years of trouble-free service. Simply replace the points with the Unilite module, which consists of a photo coupler, signal processor, and power switch. Each time the shutter wheel stops the infrared light from reaching the photo coupler, the electronic circuitry energizes the ignition coil. When the shutter wheel allows the light to reach the photo coupler, the stored energy in the coil discharges. These kits can drive both OEM and high-performance ignition coils, and are designed for 12 V negative ground systems.Brand: Mallory Ignition
Manufacturer's Part Number: 501
Part Type: Electronic Distributor Conversion Kits
Product Line: Mallory Unilite Breakerless Ignition Conversion Kits
HP Direct Part Number: MAA-501
UPC: 769105067126
Volts: 12 V
Ground: Negative
Conversion Kit Trigger Style: Optical
Advance Type: Vacuum and mechanical
Rev Limiter: No
Quantity: Sold as a kit.
CARB EO Number(s): D-70 D-70-17
Emissions: California EO Approved
Manufacturer's Part Number: 501
Part Type: Electronic Distributor Conversion Kits
Product Line: Mallory Unilite Breakerless Ignition Conversion Kits
HP Direct Part Number: MAA-501
UPC: 769105067126
Volts: 12 V
Ground: Negative
Conversion Kit Trigger Style: Optical
Advance Type: Vacuum and mechanical
Rev Limiter: No
Quantity: Sold as a kit.
CARB EO Number(s): D-70 D-70-17
Emissions: California EO Approved
