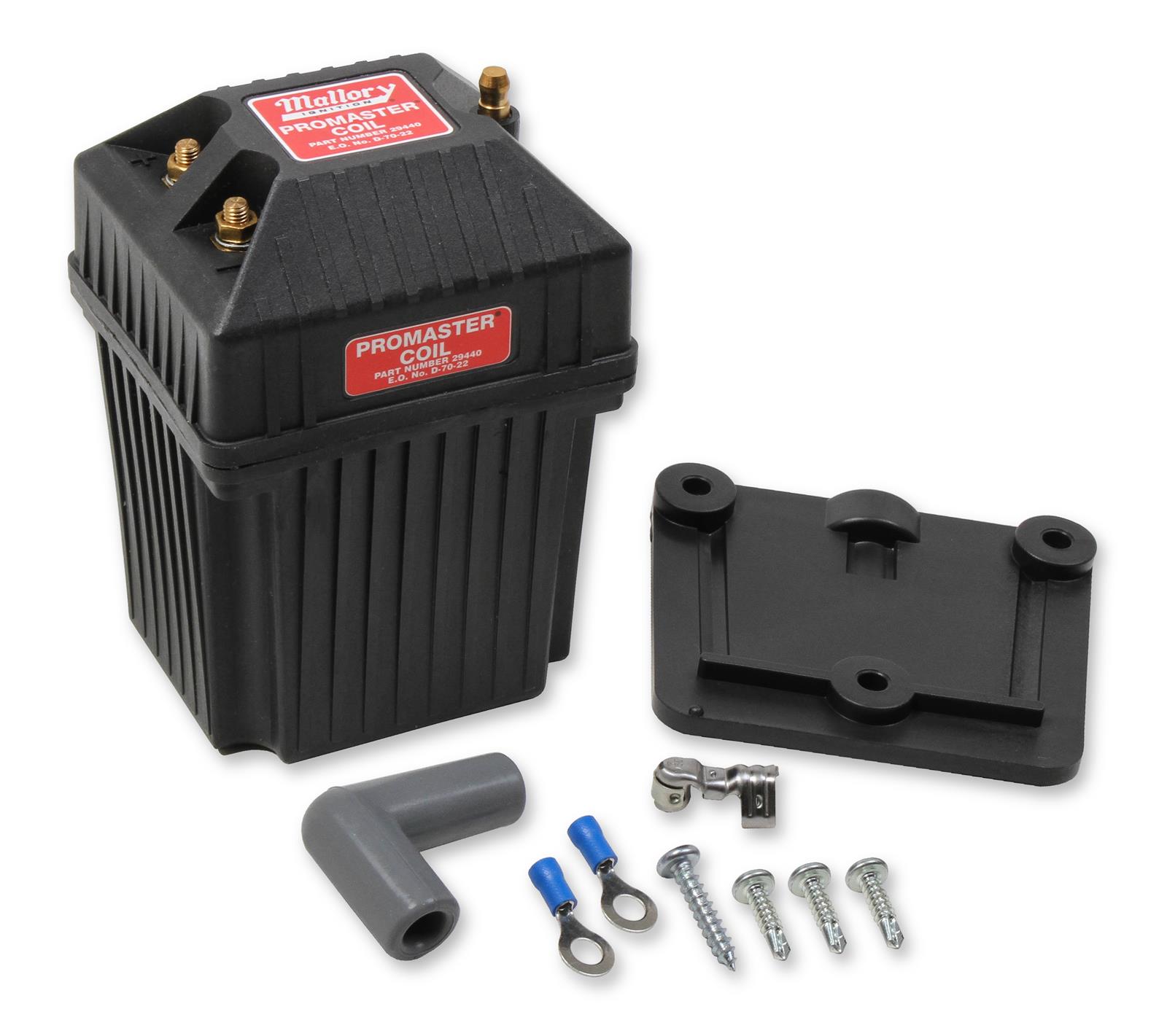

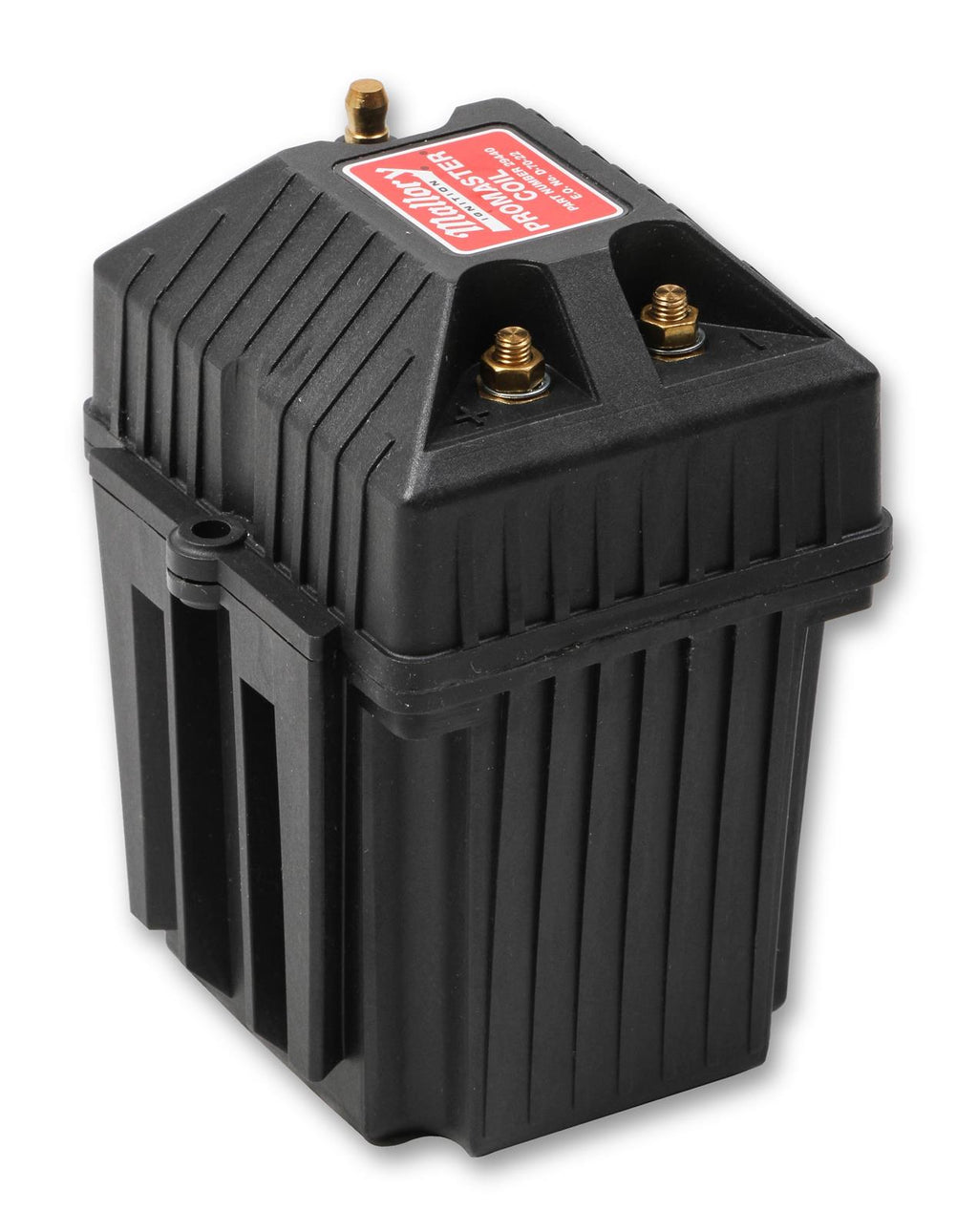

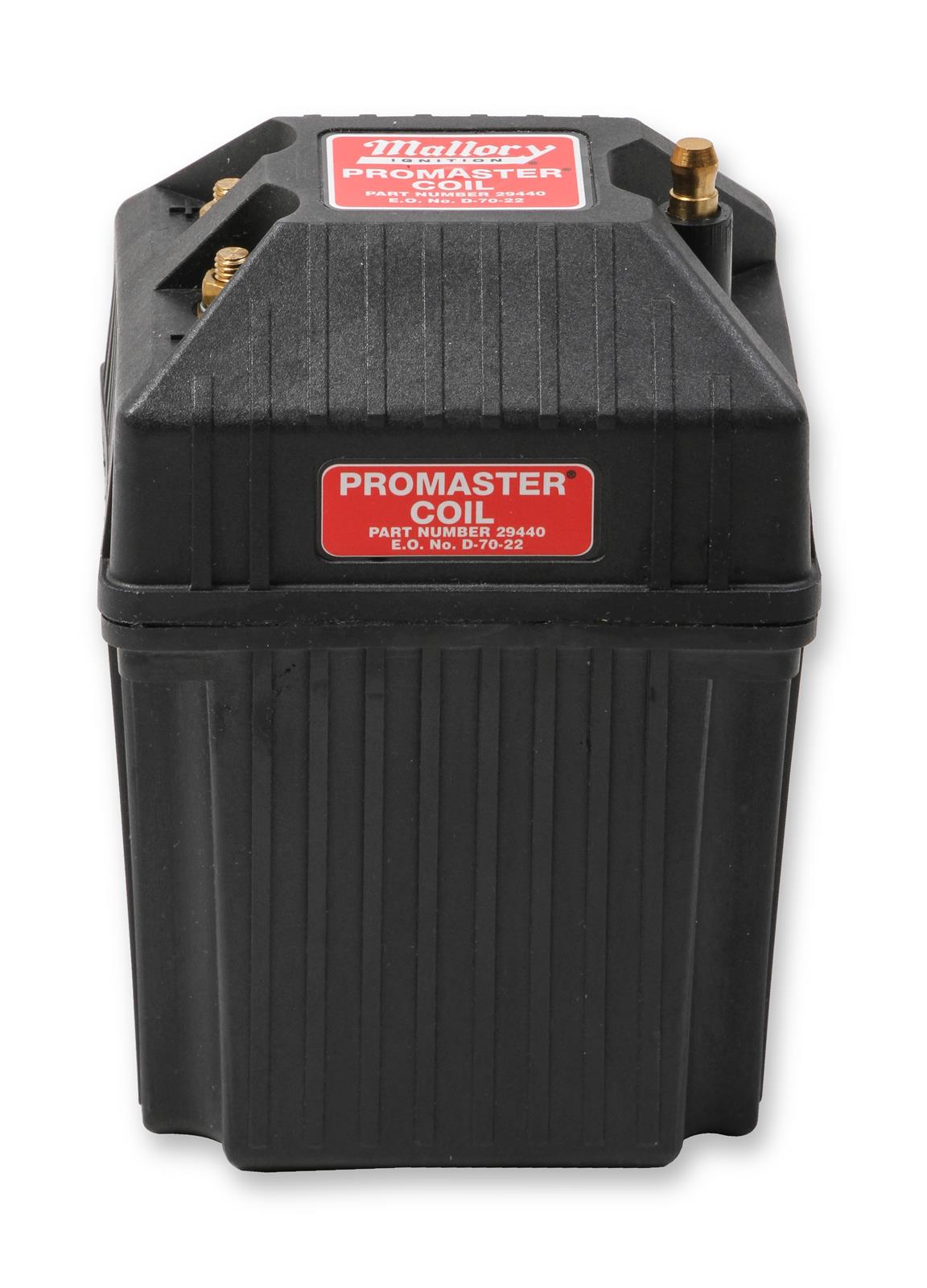

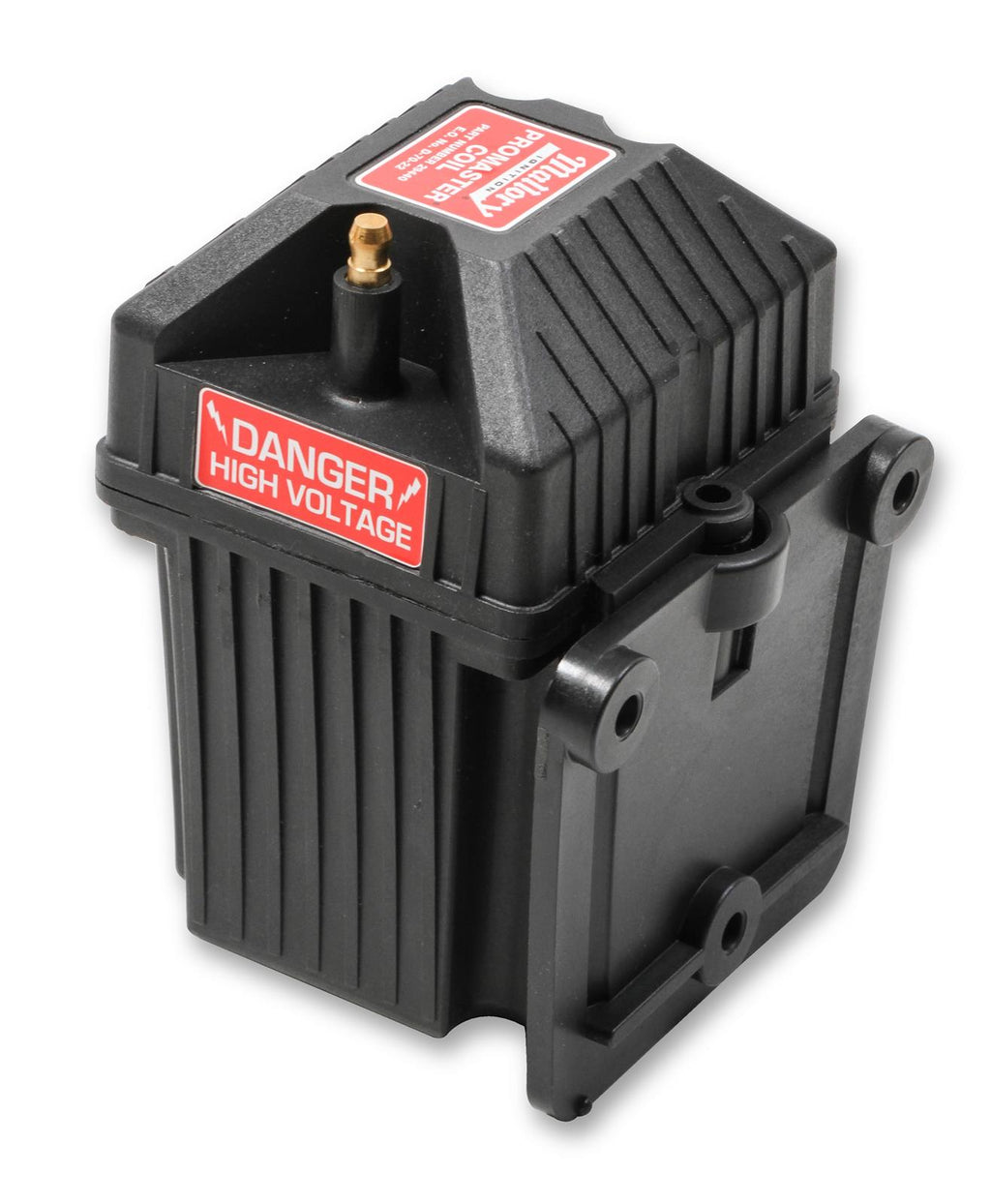

Mallory Promaster Classic Series Coils 29440

These Promaster Classic series ignition coils from Mallory are designed to meet today's specialized ignition requirements. These coils feature a faster rise time and increased spark duration (compared to stock) to increase performance. They have a glass-filled polyester case and oil-filled construction to ensure a long life and no energy loss from arcing. This series also offers better wire retention with a spark plug type secondary post, and brass contact terminals.Brand: Mallory Ignition
Manufacturer's Part Number: 29440
Part Type: Ignition Coils
Product Line: Mallory Promaster Classic Series Coils
HP Direct Part Number: MAA-29440
UPC: 085132294404
Coil Style: Remote mount
Primary Resistance: 0.600 ohms
Coil Internal Construction: Oil-filled
Coil Wire Attachment: Male/HEI
Coil Color: Black
Maximum Voltage: 49,000 V
Turns Ratio: 94:1
Secondary Resistance: 11.30K ohms
Inductance: 7.50 mH
Peak Current: 66 mA
Spark Duration: 3,600 uS
Mounting Bracket Included: Yes
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Square
Height (in.): 5.297 in.
Length (in.): 3.706 in.
Width (in.): 3.846 in.
Quantity: Sold individually.
CARB EO Number(s): D-70-22
Emissions: California EO Approved
