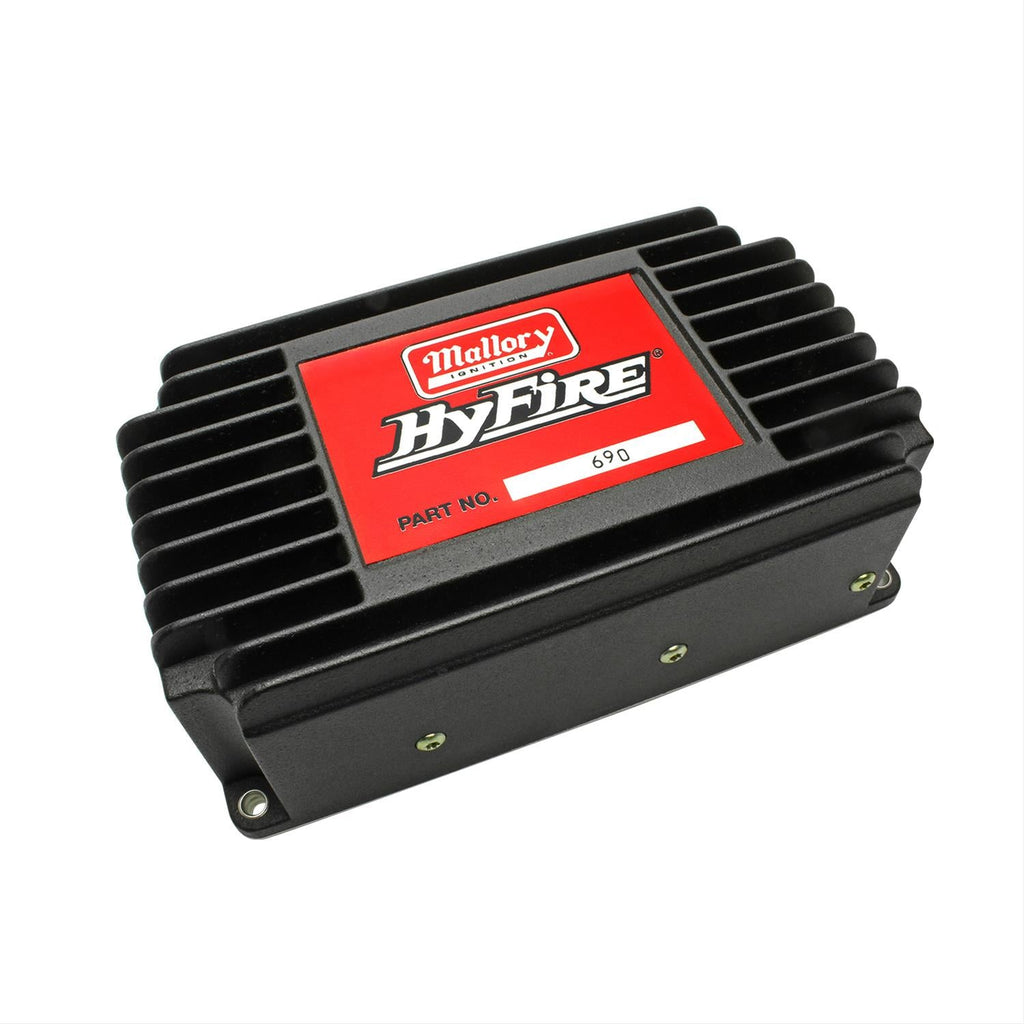

Mallory HyFire V Ignitions 690

Mallory HyFire V ignitions offer a modern twist on a familiar name! Needing no introduction, the HyFire ignitions feature modern electronics ready to deliver a powerful punch packed inside retro-style cases. These capacitive discharge ignitions supply multiple sparks at low rpm for a clean idle and quick throttle response. And since the HyFires provide powerful spark through redline, a built-in adjustable rev limiter will help tame your beast in case of a missed shift or driveline failure. The rev limiter is adjustable in 100 rpm increments with easily adjustable rotary dials.

Features include:

* Modern capacitive discharge ignition technology
* Retro design for classic good looks
* Connects easily to points, amplifiers, and magnetic pickup distributors
* Adjustable rev limiter for over-rev protection
* Multiple sparks at low rpm for improved starting, clean idle, and snappy throttle responseBrand: Mallory Ignition
Manufacturer's Part Number: 690
Part Type: Ignition Boxes
Product Line: Mallory HyFire V Ignitions
HP Direct Part Number: MAA-690
UPC: 085132006908
Ignition Box Output: Capacitive discharge
Circuitry: Analog
Rev Limiter: Yes
Timing Retard: None
Data Acquisition: No
CD Voltage Output to Coil: 435 V
Current Draw: 0.7 amps per 1,000 rpm
Spark Output (millijoules): 95 mJ
Minimum Operating Voltage: 10 V
Maximum Operating Voltage: 18 V
Ignition Box Color: Black
Coil Included: No
Quantity: Sold as a kit.
Notes: Not for use with distributorless ignition systems. Not for use with solid core spark plug wires. Includes magnetic pickup.
