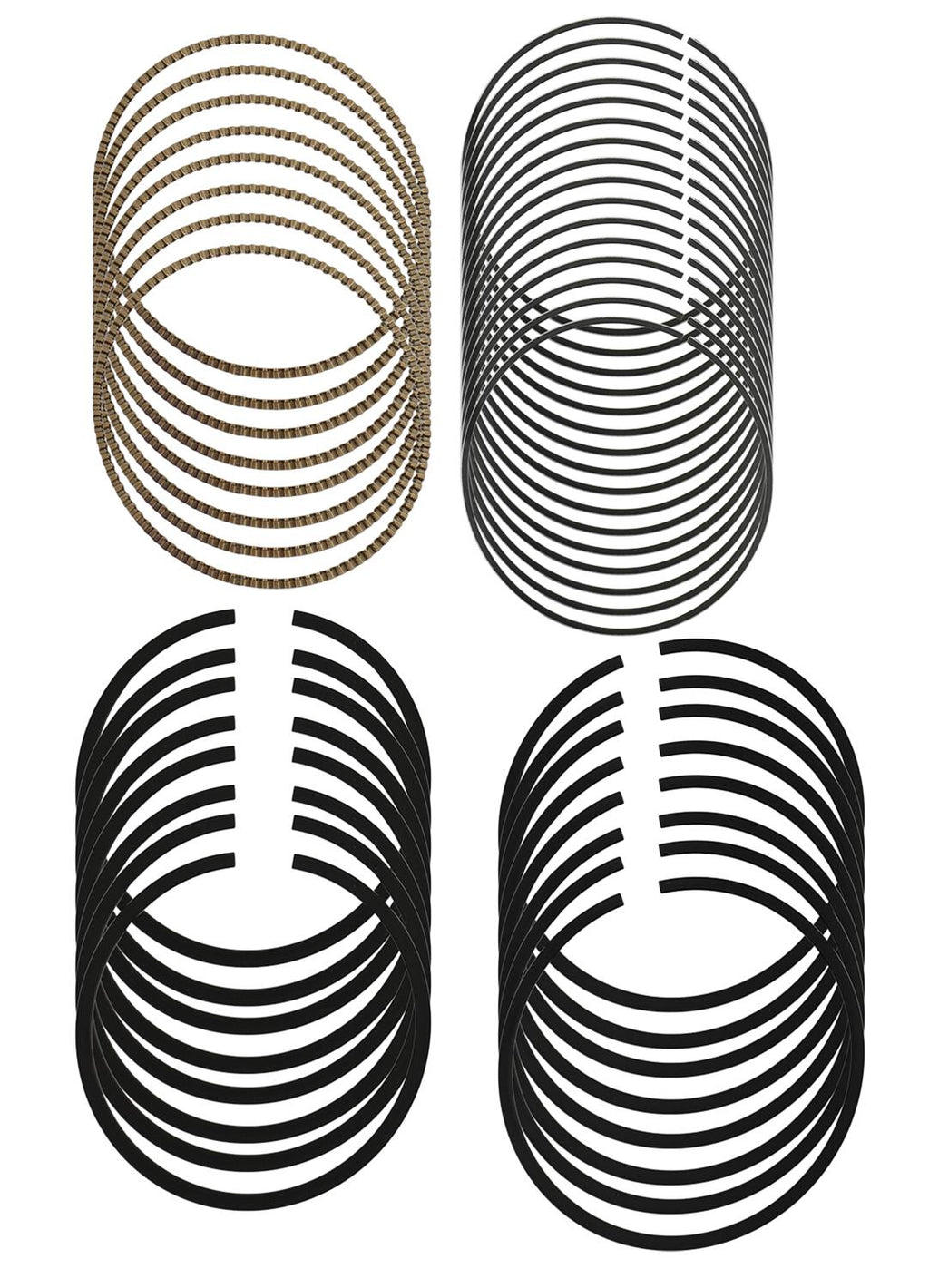

Mahle Original Premium Piston Ring Sets 40564CP.020

Mahle Original piston ring sets are designed to be installer-friendly. They are pre-lapped to seat immediately, virtually eliminating break-in time. Ring materials and coatings, as well as ring tension, are all optimized for reduced friction and extended life in each application. The compression rings feature a barrel-faced contact area for more efficient compression and CNC-controlled gap chamfer to optimize compression and reduce blow-by. Intermediate rings have a reverse twist design for better groove side sealing, and taper race machining to enhance contact. The CP-20 oil ring assemblies feature a 20 degree ear angle, an exclusive feature that provides the best possible side seal against the cylinder wall, and a special chemical polish on the oil ring expander offers enhanced oil drain back. Mahle Original piston ring sets provide unmatched quality and ease of installation, making them the rings of choice for today's engine builders.Brand: MAHLE Original
Manufacturer's Part Number: 40564CP.020
Part Type: Piston Rings
Product Line: Mahle Original Premium Piston Ring Sets
HP Direct Part Number: MAH-40564CP020
UPC: 725975137826
Bore (in.): 4.020 in.
Bore (mm): 102.108mm
File Fit: No
Gapless: No
Gas Ported: No
Top Ring Included: Yes
Top Ring Thickness: 5/64 in.
Top Ring Material: Cast iron
Top Ring Facing Material: Plasma-moly
Second Ring Included: Yes
Second Ring Thickness: 5/64 in.
Second Ring Material: Cast iron
Second Ring Facing Material: Iron
Oil Ring Included: Yes
Oil Ring Thickness: 3/16 in.
Oil Ring Tension: Standard
Oil Ring Material: CP-20
Quantity: Sold as 8 sets.
