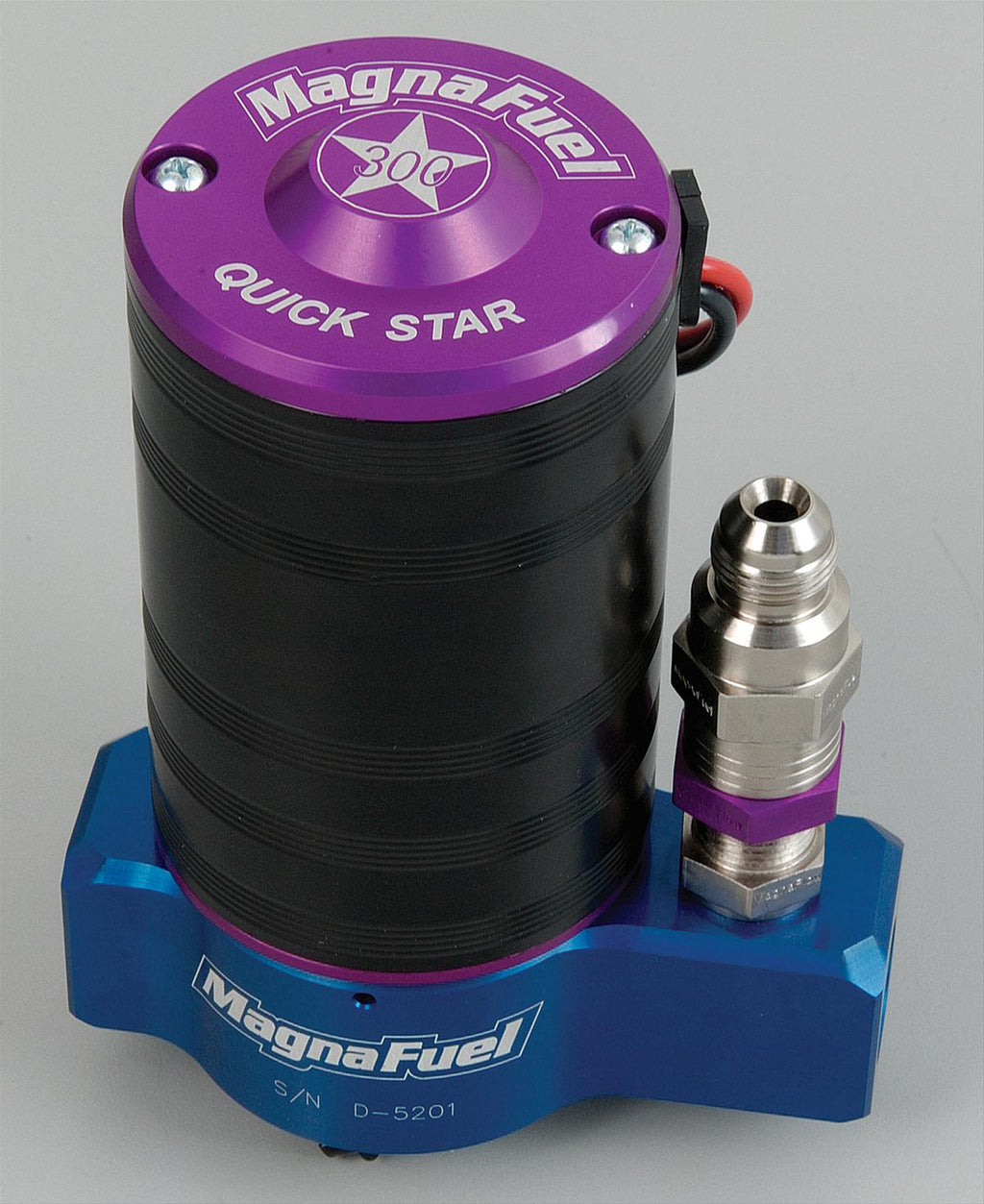

MagnaFuel QuickStar 300 Fuel Pumps MP-4601

MagnaFuel QuickStar 300 fuel pumps are built with computer-machined aluminum bodies. They feature custom-built motors and an exclusive vane/rotor design to provide cool, low-amperage operation without overheating. Compatible with gasoline and alcohol fuel, these pumps use an externally adjustable bypass to eliminate pump cavitation, stabilize fuel flow, and eliminate fuel starvation. They feed engines up to 900 hp, and are great for turbo, supercharged, or nitrous assist setups.Brand: MagnaFuel
Manufacturer's Part Number: MP-4601
Part Type: Fuel Pumps
Product Line: MagnaFuel QuickStar 300 Fuel Pumps
HP Direct Part Number: MRF-MP-4601
UPC: 00819315000908
Fuel Pump Type: Electric external
Fuel Pressure (psi): 36 psi
Fuel Pump Voltage: 12 V
Fuel Pressure Regulator Included: Yes
Sending Unit Included: No
Fuel Pump Inlet Size: -10 AN
Inlet Quantity: 1
Inlet Attachment: Female straight cut O-ring
Fuel Pump Outlet Size: -10 AN
Outlet Quantity: 1
Outlet Attachment: Female straight cut O-ring
Gasket Included: No
Wiring Harness Included: No
Mounting Bracket Included: Yes
Mounting Hardware Included: Yes
Pulley Included: No
Remanufactured: No
Quantity: Sold individually.
Notes: Pump has 1 -8 AN return port that is adjustable from 25-36 psi. This pump is designed for use with a dead-head type fuel pressure regulator. If the return port is blocked off you can use this pump with a return style regulator.
