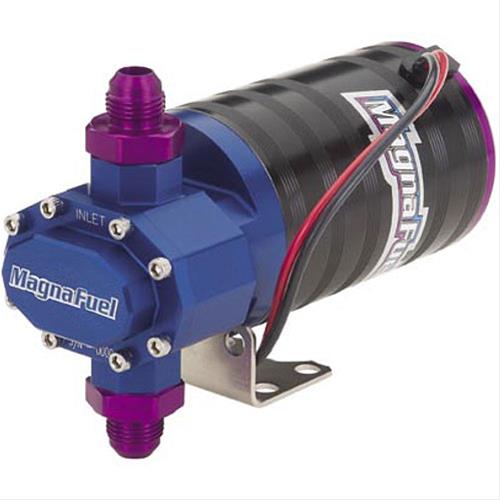

MagnaFuel ProStar EFI SQ525 Series Electric Gear Fuel Pumps MP-4102

MagnaFuel ProStar EFI SQ525 Series electric gear fuel pumps offer great performance for the high-volume and pressure demands of supercharged and turbocharged applications. They can support 1,500 hp and up.

Additional features include:

* CNC-machined, hard-anodized aircraft aluminum
* High-torque custom motor with low current draw
* Double support bearing
* Can be mounted vertically or horizontally
* Polymer wear plates for quiet, smooth operation
* 12 amps at 45 psi
* -10 AN inlet and outlet, fittings are sold separately


Brand: MagnaFuel
Manufacturer's Part Number: MP-4102
Part Type: Fuel Pumps
Product Line: MagnaFuel ProStar EFI SQ525 Series Electric Gear Fuel Pumps
HP Direct Part Number: MRF-MP-4102
UPC: 00819315002001
Fuel Pump Type: Electric external
Fuel Pressure (psi): 120 psi
Fuel Pump Voltage: 12 V
Fuel Pressure Regulator Included: No
Sending Unit Included: No
Fuel Pump Inlet Size: -10 AN
Inlet Quantity: 1
Inlet Attachment: Female straight cut O-ring
Fuel Pump Outlet Size: -10 AN
Outlet Quantity: 1
Outlet Attachment: Female straight cut O-ring
Gasket Included: No
Wiring Harness Included: No
Mounting Bracket Included: Yes
Mounting Hardware Included: No
Pulley Included: No
Remanufactured: No
Quantity: Sold individually.
