K&N Electronic Carburetor Injection Systems 20-0003

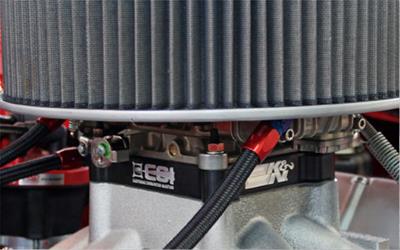

You don't have to suffer constant carburetor issues in your hot rod or race car anymore. K&N Electronic Carburetor Injection (ECI) are self-tuning bolt-on systems that add a supplemental fuel source to optimize engine performance. And, since they are supplemental systems, you can tap into your current fuel supply and there is no need to run a return line back to your fuel tank. Users have the option to set detailed parameters, including their desired air-to-fuel ratio, injector pulse width, shot volume, progressive injector firing, and minimum/maximum rpm range.

The brain of K&N's ECI systems is the ECU, which vigilantly monitors the input from the oxygen sensor to ensure an optimal air-to-fuel ratio is maintained. If the system detects an AFR higher than the user-defined limit, the injector will fire. Unlike a typical electronic fuel injection system, the ECI works cooperatively with your existing carburetor, supporting the fuel flow rates that high-horsepower vehicles require to operate efficiently. If your engine is performing lean, K&N's ECI systems will help make up for the fuel deficit.

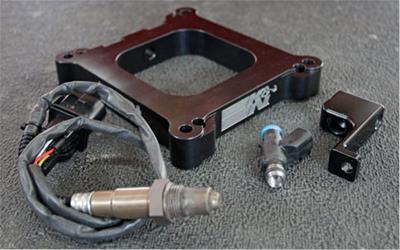

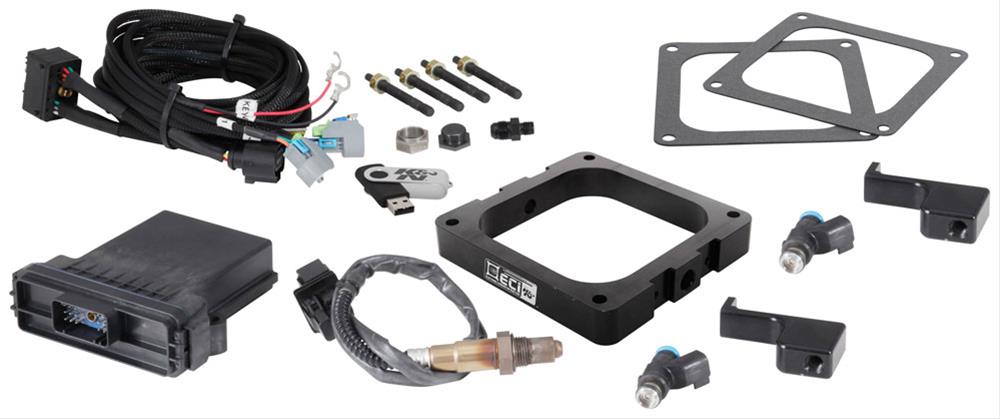

The kits include everything you need to get started:

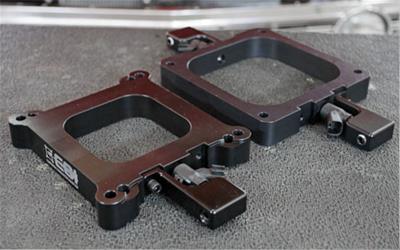

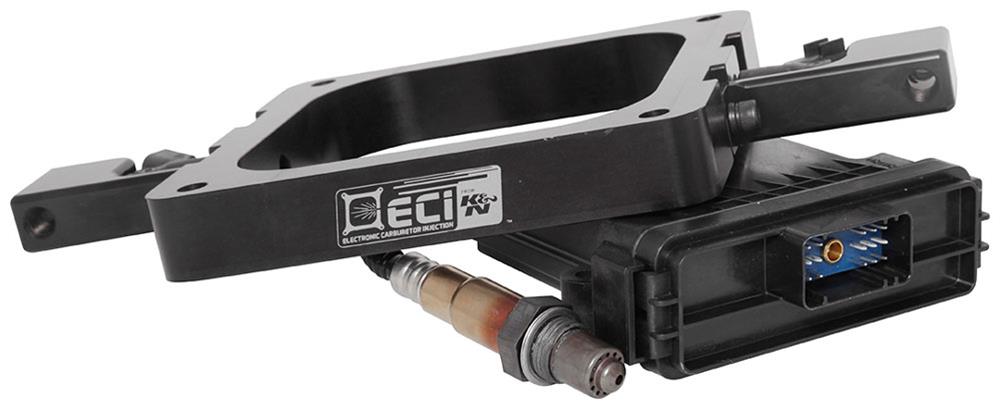

* Billet aluminum carburetor plate with fuel rail and gaskets
* Fuel injector
* Oxygen sensor
* Injection-molded ECU
* Fittings and hardware

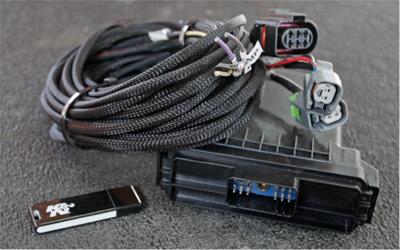

* Wiring harness

Features:

* Throttle linkage is unaltered from existing setup
* Low-profile plate doesn't add much height under the hood
* ECU is weatherproof and small enough to be mounted just about anywhere
* ECI wiring harness comes with all connections pre-terminated and each connector is unique, so it only fits one way
* Harness is pre-wrapped in wire loom for a seamless look with your existing vehicle wiring harnesses
* Installation and tuning are easy

Brand: K&N
Manufacturer's Part Number: 20-0003
Part Type: Fuel Injection Systems
Product Line: K&N Electronic Carburetor Injection Systems
HP Direct Part Number: KNN-20-0003
UPC: 024844367815
Fuel Injection Style: Spacer plate
Fuel Injection System Type: Single 4-Barrel Throttle Body (4150 Flange)
Timing Control Compatible: No
ECM Included: Yes
Self Tuning: Yes
User Tunable: Yes
Fuel System Included: None
Ignition System Included: None
Power Distribution Included: None
User Interface Included: None
EGR: No
Transmission Controller Included: No
Metering Style: Speed density
Multi-Port Fuel Rails Included: No
Throttle Body Included: No
Throttle Body Mounting Flange: 4500 Dominator
Injectors Included: Yes
Calibration Module Included: Yes
Wiring Harness Included: Yes
Oxygen Sensor Included: Yes
Fuel Pressure Regulator Included: No
MAP Sensor Included: No
IAT Sensor Included: No
TPS Sensor Included: No
IAC Motor Included: No
Quantity: Sold as a kit.
Notes: Designed for 4500 Dominator style carburetors.
