Jesel Pushrod Length Checking Tools TOL-29425

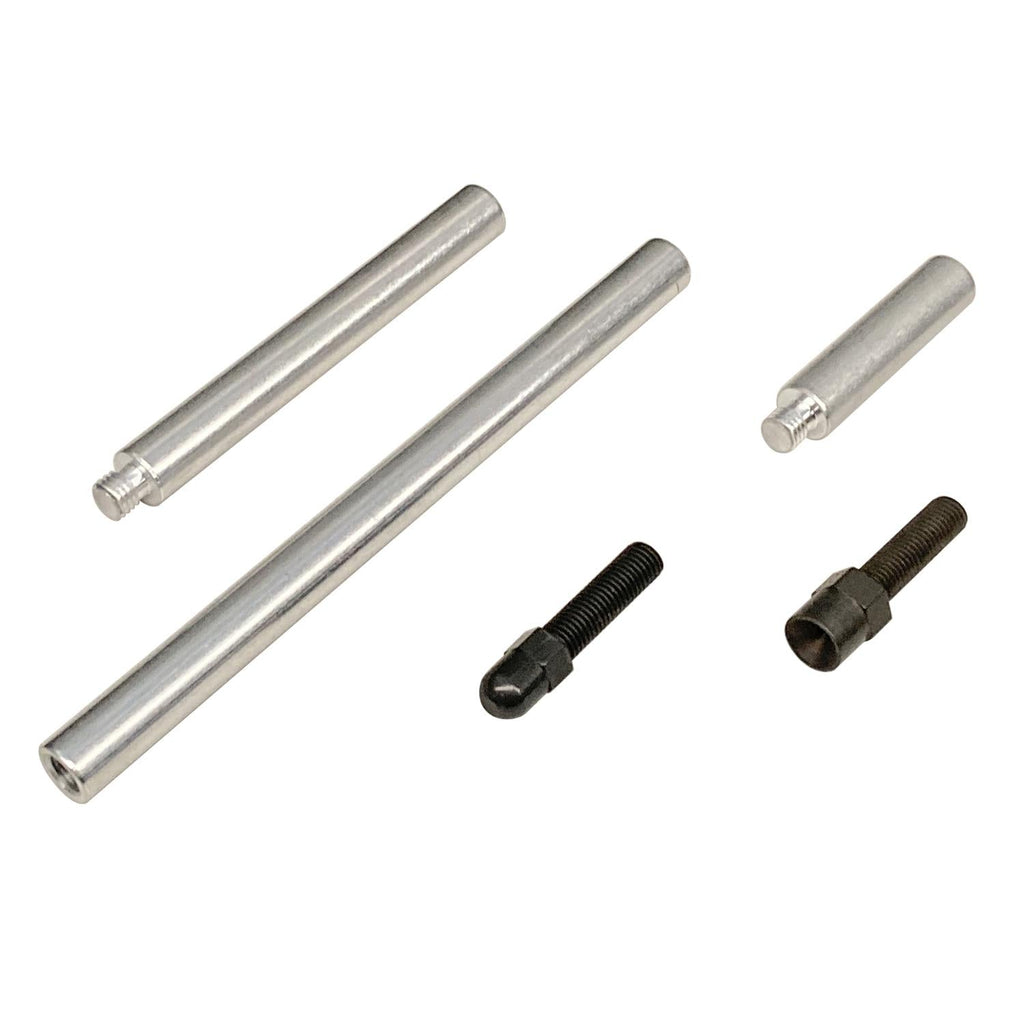

Special parts often require special tools. Jesel's pushrod length checking tools are one of those "getting it right" tools for pushrod length checking. The basic body of the tool consists of three pieces of aluminum tubing. The tubing pieces are 5 in., 3 in. and 1.5 in. long. On two pieces of the tubing, one end is male and the other is female and each end is threaded. Outer ends accept a screw-in pushrod ball end. In total, the pushrod length checking tools are adjustable from 6 in. to 12 in.

Important note: Before you order new pushrods, first check the pushrod length on several different cylinders, as well as on both engine's cylinder heads to determine sizes. Never rotate valvetrain using the pushrod checker tool.
Brand: Jesel
Manufacturer's Part Number: TOL-29425
Part Type: Pushrod Length Checkers
Product Line: Jesel Pushrod Length Checking Tools
HP Direct Part Number: JES-TOL-29425
Maximum Pushrod Length (in.): 12.000
Minimum Pushrod Length (in.): 6.000
Mockup Rocker Arm Included: No
Pushrod End Style: Cup tip
Pushrod Material: Steel
Quantity: Sold as a kit.
Notes: For use with ball type rocker adjusters. Kit includes three different length tubes, one ball end tip and one cup end tip.
