Description

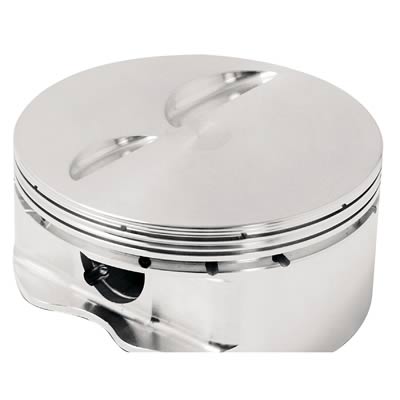

Rated at 400 hp, JE Pistons Ultralite gas ported pistons feature a contoured bottom band and a 2.400 in. length pin for maximum weight savings. Precision CNC-machined .043, .043, 3.0mm backcut ring grooves make these pistons the number-one choice for late model engine builders.Brand: JE Pistons
Manufacturer's Part Number: 173615
Part Type: Pistons
Product Line: JE Pistons Ultralite Gas Ported Pistons
HP Direct Part Number: JEP-173615-8
UPC: 193564029898
Piston Rings Included: No
Bore (in.): 4.030 in.
Bore (mm): 102.362mm
Stroke: 3.480 in.
Engine Stroke Type: Stroked
Rod Length: 6.000 in.
Piston Style: Flat top, with two valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.250 in.
Piston Head Volume (cc): +1.80cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Pin Diameter (in.): 0.927 in.
Piston Ring Thickness: 0.043 in. x 0.043 in. x 3.00mm
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold as a set of 8.
Manufacturer's Part Number: 173615
Part Type: Pistons
Product Line: JE Pistons Ultralite Gas Ported Pistons
HP Direct Part Number: JEP-173615-8
UPC: 193564029898
Piston Rings Included: No
Bore (in.): 4.030 in.
Bore (mm): 102.362mm
Stroke: 3.480 in.
Engine Stroke Type: Stroked
Rod Length: 6.000 in.
Piston Style: Flat top, with two valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.250 in.
Piston Head Volume (cc): +1.80cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Pin Diameter (in.): 0.927 in.
Piston Ring Thickness: 0.043 in. x 0.043 in. x 3.00mm
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold as a set of 8.
