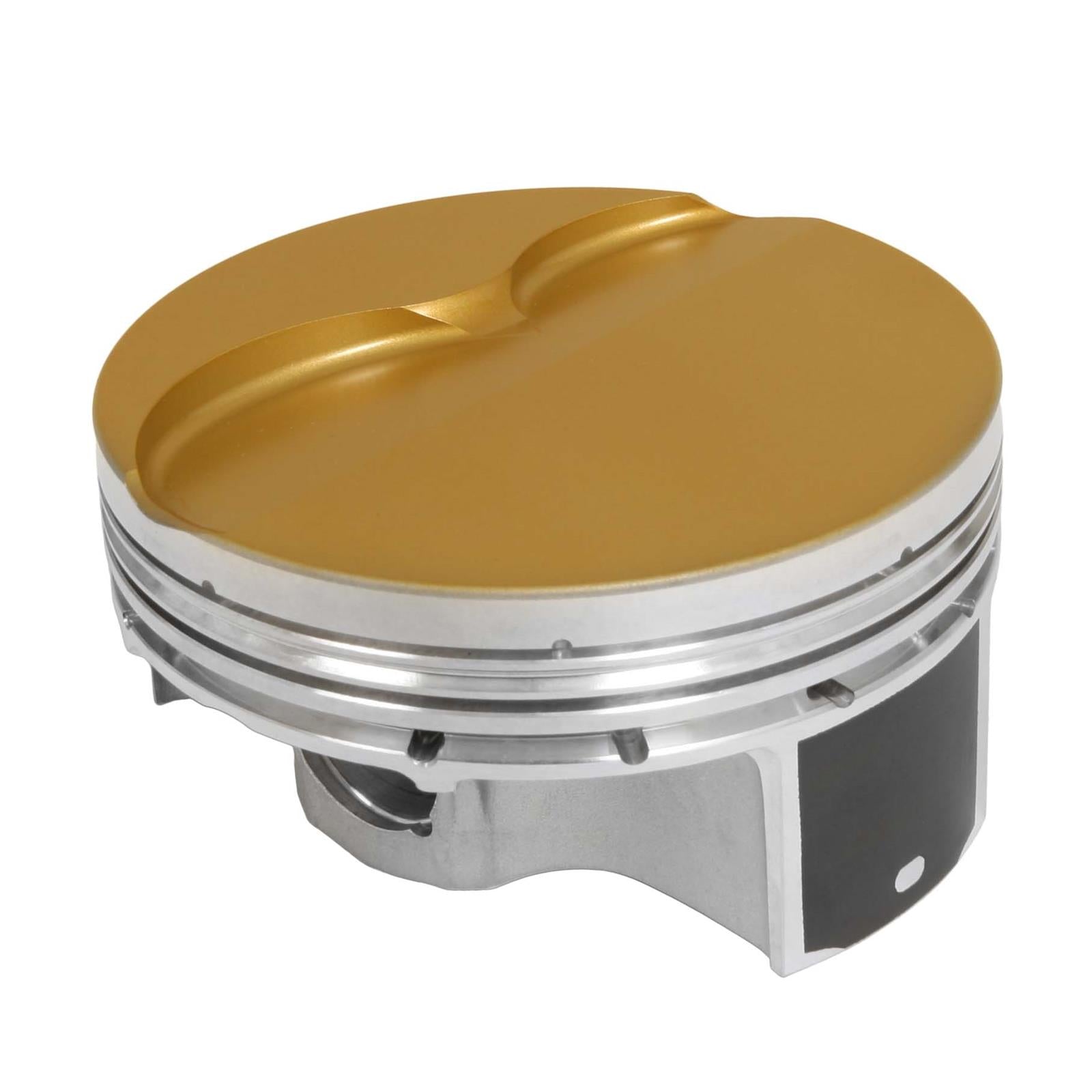

JE Pistons Ultra Series Pistons 361710

JE Ultra Series pistons combine all of the best, most desirable piston features, such as thermal barrier crown coating, lateral gas ports, thick-wall wrist pins, and a revolutionary new forging technology for the ultimate in strength. They are ready for massive power and boost right out of the box.

Features of the JE Ultra Series pistons:

* Grain flow optimized 2618 forging
* Lateral gas ports improve ring seal
* Ceramic crown coating—thermal barrier blocks combustion heat for durability and better exhaust scavenging characteristics
* Perfect Skirt Coating—protects skirts, reduces friction, and eliminates cold-start piston slap and false knock on computer-controlled engines
* Accumulator grooves reduce ring flutter at high rpm

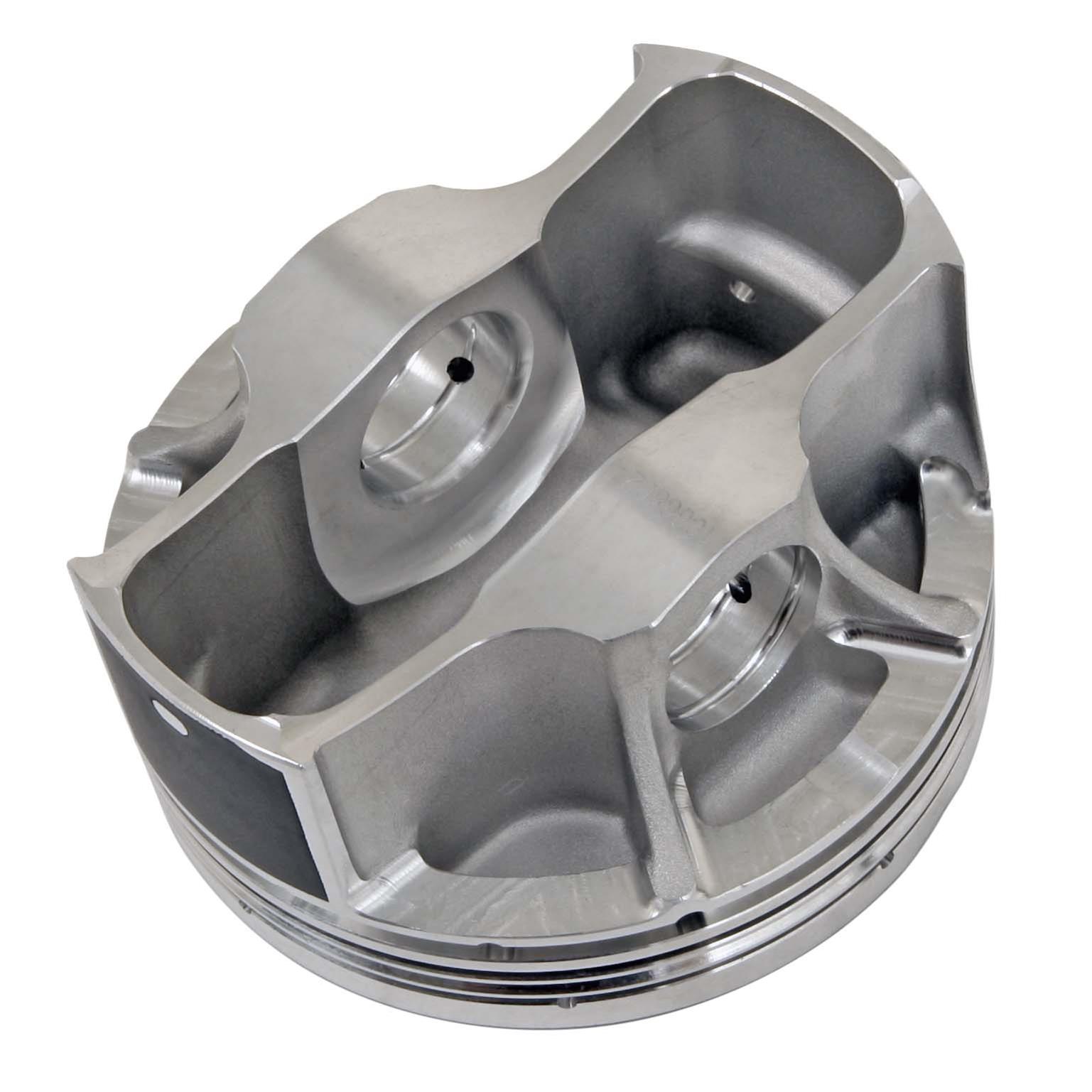

* Double broach pin oiling
* Upgraded 9310 pins and locks—thicker, premium material wrist pins boosts strength
* Carbon steel nitride rings
Brand: JE Pistons
Manufacturer's Part Number: 361710
Part Type: Pistons
Product Line: JE Pistons Ultra Series Pistons
HP Direct Part Number: JEP-361710-8
UPC: 193564038753
Piston Rings Included: Yes
Bore (in.): 4.000 in.
Bore (mm): 101.600mm
Engine Stroke Type: Stock
Rod Length: 6.125 in.

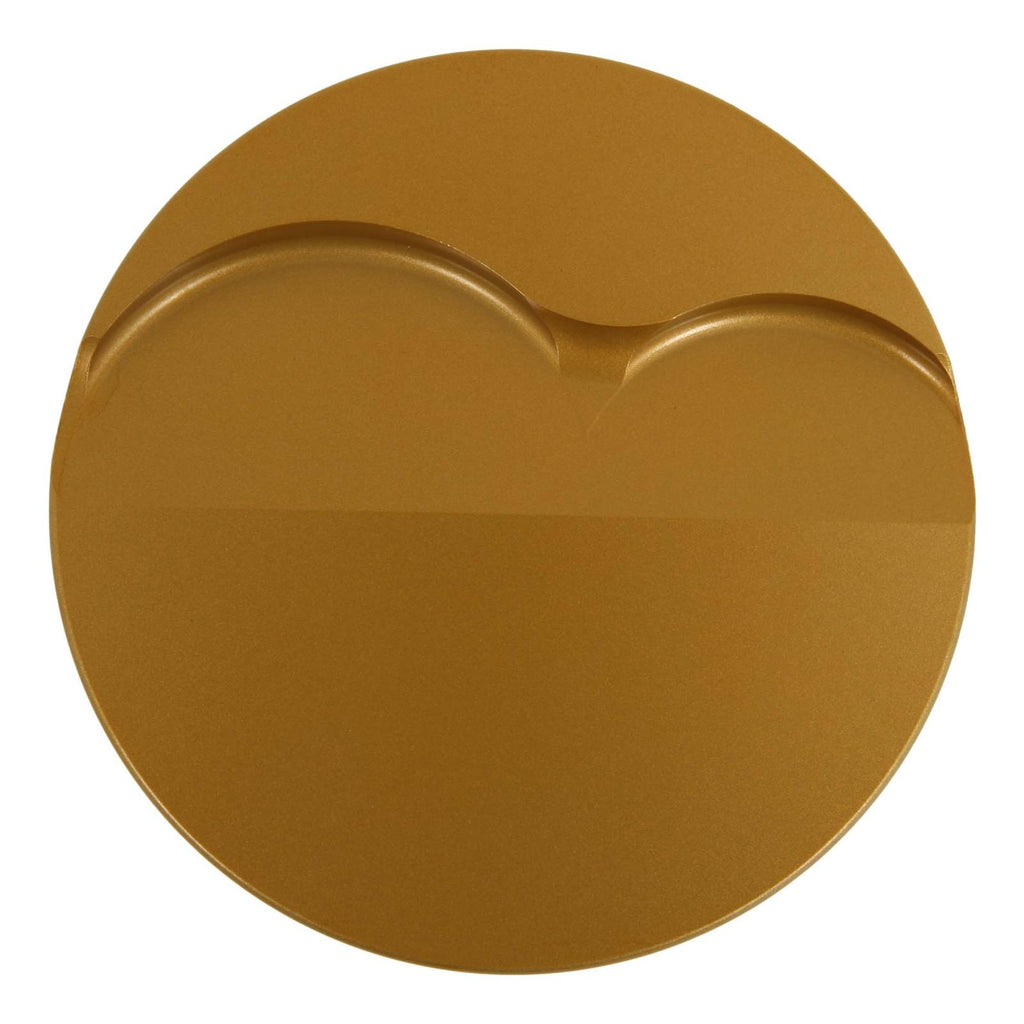

Piston Style: Flat top, with two valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.304 in.
Piston Head Volume (cc): +5.00cc
Wrist Pin Style: Floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Pin Diameter (in.): 0.927 in.
Piston Ring Thickness: 1.20mm x 1.00mm x 2.00mm
File Fit: No
Gapless: No
Remanufactured: No

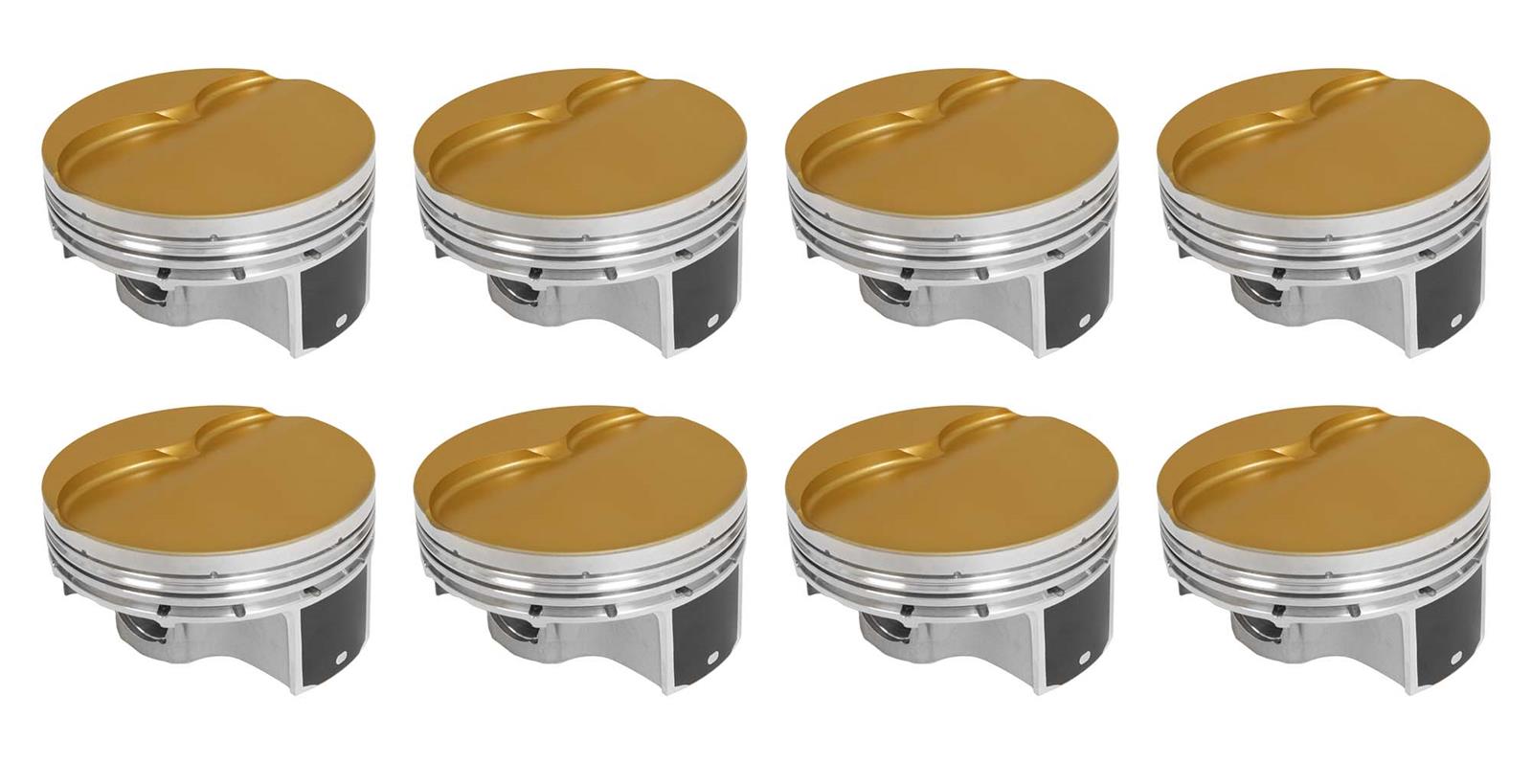

Quantity: Sold as a set of 8.
