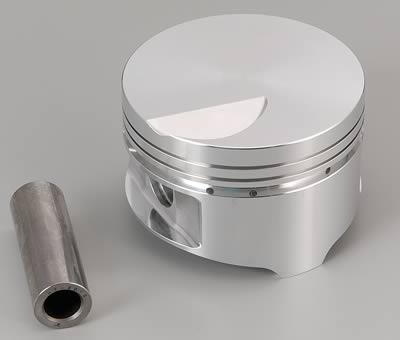

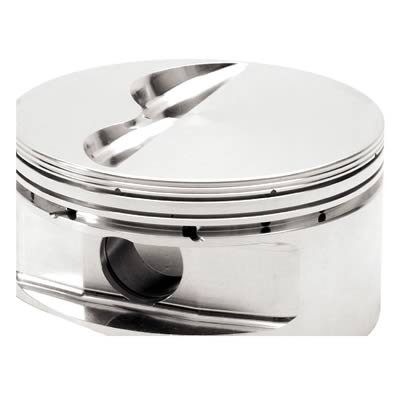

JE Pistons Tour Series Gas Ported Pistons 181933

JE Pistons Tour series gas ported pistons have undergone engineering changes to handle higher horsepower 4-barrel applications (approximately 650 hp) and angle-milled heads. Both the 350 and 400 Series accept oversize valves (the intake pocket is 2.255 in. and the exhaust pocket is 1.870 in.) and long-duration, tight lobe separation cams. Ring grooves are precision-machined for .043, .043, 3.0mm backcut rings with lateral gas ports for a superior ring seal.Brand: JE Pistons
Manufacturer's Part Number: 181933
Part Type: Pistons
Product Line: JE Pistons Tour Series Gas Ported Pistons
HP Direct Part Number: JEP-181933-8
UPC: 193564039835
Piston Rings Included: No
Bore (in.): 4.155 in.
Bore (mm): 105.537mm
Stroke: 3.750 in.
Engine Stroke Type: Stroked/De-Stroked
Rod Length: 6.125 in.
Piston Style: Flat top, with two valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.125 in.
Piston Head Volume (cc): +5.00cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Pin Diameter (in.): 0.927 in.
Piston Ring Thickness: 0.043 in. x 0.043 in. x 3.00mm
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold as a set of 8.
Notes: 0.295 inch deep intake pocket.
