Description

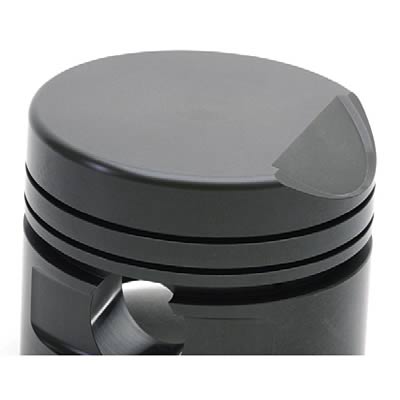

Now, you'll have no more waiting for custom pistons. JE Pistons Top Fuel pistons are specifically designed to handle the 7,000+ hp generated by Top Fuel engines. These pistons come with Kool Kote at no extra charge. The ring grooves are precision-machined to accept Dykes D017 top rings, 1/16, second ring, and 3/16 oil rings. Pins, buttons, and rings must be purchased separately.Brand: JE Pistons
Manufacturer's Part Number: 207489
Part Type: Pistons
Product Line: JE Pistons Top Fuel Pistons
HP Direct Part Number: JEP-207489-8
UPC: 193564217721
Piston Rings Included: No
Bore (in.): 4.187 in.
Bore (mm): 106.350mm
Engine Stroke Type: Stroked
Piston Style: Dome, with single valve relief
Piston Material: Forged aluminum
Compression Height (in.): 1.720 in.
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Pin Diameter (in.): 1.156 in.
Piston Ring Thickness: 0.017 in. x 1/16 in. x 3/16 in.
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold as a set of 8.
Notes: Coated piston.
Manufacturer's Part Number: 207489
Part Type: Pistons
Product Line: JE Pistons Top Fuel Pistons
HP Direct Part Number: JEP-207489-8
UPC: 193564217721
Piston Rings Included: No
Bore (in.): 4.187 in.
Bore (mm): 106.350mm
Engine Stroke Type: Stroked
Piston Style: Dome, with single valve relief
Piston Material: Forged aluminum
Compression Height (in.): 1.720 in.
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Pin Diameter (in.): 1.156 in.
Piston Ring Thickness: 0.017 in. x 1/16 in. x 3/16 in.
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold as a set of 8.
Notes: Coated piston.
