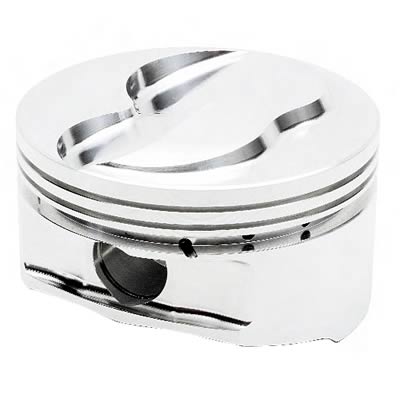

JE Pistons Sport Compact Pistons 291061

JE Pistons sport compact pistons are specifically engineered for extreme applications, up to and including professional competition. In this environment, the higher compression ratios, highest boost, or heavy nitrous usage necessitate the higher tensile strength 2618 aluminum alloy. Their dome/dish requires no deburring or preparation and features smooth-flowing radii for excellent flame travel. A pin fitting, wire locks, and rings are included.Brand: JE Pistons
Manufacturer's Part Number: 291061
Part Type: Pistons
Product Line: JE Pistons Sport Compact Pistons
HP Direct Part Number: JEP-291061-4
UPC: 193564005212
Piston Rings Included: No
Bore (in.): 3.917 in.
Bore (mm): 99.500mm
Stroke: 79.00mm
Rod Length: 130.500mm
Piston Style: Dish, with four valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.209 in.
Piston Head Volume (cc): +16.50cc
Wrist Pin Style: Floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Pin Diameter (in.): 0.905 in.
File Fit: No
Gapless: No
Top Ring Thickness: 1.2mm
Top Ring Material: Steel
Top Ring Facing Material: Chrome
Second Ring Thickness: 1.2mm
Second Ring Material: Iron
Second Ring Facing Material: Ferroxide
Oil Ring Thickness: 2.5mm
Oil Ring Material: Carbon steel
Oil Ring Facing Material: Chrome
Oil Ring Tension: Low
Remanufactured: No
Quantity: Sold as a set of 4.
