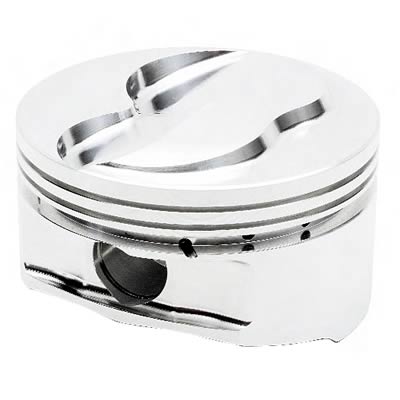

JE Pistons Sport Compact Pistons 279931

JE Pistons sport compact pistons are specifically engineered for extreme applications, up to and including professional competition. In this environment, the higher compression ratios, highest boost, or heavy nitrous usage necessitate the higher tensile strength 2618 aluminum alloy. Their dome/dish requires no deburring or preparation and features smooth-flowing radii for excellent flame travel. A pin fitting, wire locks, and rings are included.Brand: JE Pistons
Manufacturer's Part Number: 279931
Part Type: Pistons
Product Line: JE Pistons Sport Compact Pistons
HP Direct Part Number: JEP-279931-4
UPC: 193564005366
Piston Rings Included: Yes
Bore (in.): 3.268 in.
Bore (mm): 83.000mm
Stroke: 92.80mm
Rod Length: 144.000mm
Piston Style: Dish, with four valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.170 in.
Piston Head Volume (cc): +12.50cc
Wrist Pin Style: Floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Pin Diameter (in.): 0.787 in.
File Fit: No
Gapless: No
Top Ring Thickness: 1.0mm
Top Ring Material: Steel
Top Ring Facing Material: Gas nitrided
Second Ring Thickness: 1.2mm
Second Ring Material: Ductile iron
Second Ring Facing Material: Phosphate coated
Oil Ring Thickness: 2.8mm
Oil Ring Material: Carbon steel
Oil Ring Facing Material: Nitride
Oil Ring Tension: Low
Remanufactured: No
Quantity: Sold individually.
