Description

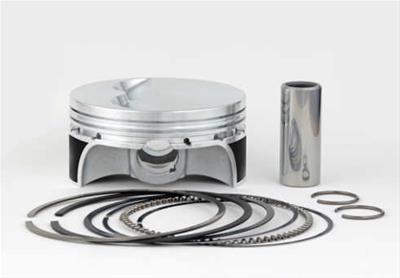

JE Pistons sport compact pistons are specifically engineered for extreme applications, up to and including professional competition. In this environment, the higher compression ratios, highest boost, or heavy nitrous usage necessitate the higher tensile strength 2618 aluminum alloy. Their dome/dish requires no deburring or preparation and features smooth-flowing radii for excellent flame travel. A pin fitting, wire locks, and rings are included.Brand: JE Pistons
Manufacturer's Part Number: 261663
Part Type: Pistons
Product Line: JE Pistons Sport Compact Pistons
HP Direct Part Number: JEP-261663-6
UPC: 193564215475
Piston Rings Included: Yes
Bore (in.): 3.543 in.
Bore (mm): 89.992mm
Piston Style: Dome, with no valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.335 in.
Dome Height (in.): 0.235 in.
Piston Head Volume (cc): -21.75cc
Wrist Pin Style: Floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Pin Diameter (in.): 0.866 in.
Piston Ring Thickness: 1.20mm x 1.20mm x 2.80mm
File Fit: Yes
Gapless: No
Remanufactured: No
Quantity: Sold as a set of 6.
Manufacturer's Part Number: 261663
Part Type: Pistons
Product Line: JE Pistons Sport Compact Pistons
HP Direct Part Number: JEP-261663-6
UPC: 193564215475
Piston Rings Included: Yes
Bore (in.): 3.543 in.
Bore (mm): 89.992mm
Piston Style: Dome, with no valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.335 in.
Dome Height (in.): 0.235 in.
Piston Head Volume (cc): -21.75cc
Wrist Pin Style: Floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Pin Diameter (in.): 0.866 in.
Piston Ring Thickness: 1.20mm x 1.20mm x 2.80mm
File Fit: Yes
Gapless: No
Remanufactured: No
Quantity: Sold as a set of 6.
