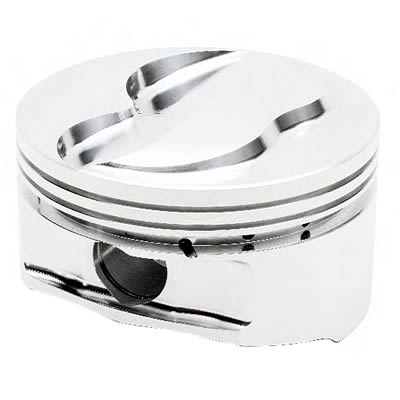

JE Pistons Sport Compact Pistons 245986

JE Pistons sport compact pistons are specifically engineered for extreme applications, up to and including professional competition. In this environment, the higher compression ratios, highest boost, or heavy nitrous usage necessitate the higher tensile strength 2618 aluminum alloy. Their dome/dish requires no deburring or preparation and features smooth-flowing radii for excellent flame travel. A pin fitting, wire locks, and rings are included.Brand: JE Pistons
Manufacturer's Part Number: 245986
Part Type: Pistons
Product Line: JE Pistons Sport Compact Pistons
HP Direct Part Number: JEP-245986-4
UPC: 193564215772
Piston Rings Included: No
Bore (in.): 3.917 in.
Bore (mm): 99.500mm
Stroke: 3.110 in.
Engine Stroke Type: Stock
Rod Length: 5.137 in.
Piston Style: Dish, with four valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.209 in.
Piston Head Volume (cc): +21.50cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Piston Ring Thickness: 1.20mm x 1.20mm x 2.50mm
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold as a set of 4.
Notes: Suitable for turbo or nitrous. Full round skirt design.
