Description

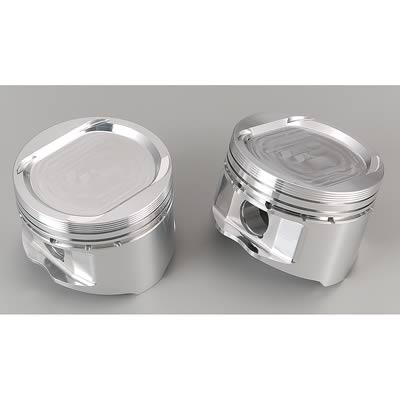

JE Pistons sport compact pistons are specifically engineered for extreme applications, up to and including professional competition. In this environment, the higher compression ratios, highest boost, or heavy nitrous usage necessitate the higher tensile strength 2618 aluminum alloy. Their dome/dish requires no deburring or preparation and features smooth-flowing radii for excellent flame travel. A pin fitting, wire locks, and rings are included.Brand: JE Pistons
Manufacturer's Part Number: 208478
Part Type: Pistons
Product Line: JE Pistons Sport Compact Pistons
HP Direct Part Number: JEP-208478-4
UPC: 193564046451
Piston Rings Included: No
Bore (in.): 3.366 in.
Bore (mm): 85.500mm
Engine Stroke Type: Stock
Piston Style: Dish, with four valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.367 in.
Piston Head Volume (cc): +13.20cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: No
Wrist Pin Included: Yes
Pin Diameter (in.): 0.827 in.
Piston Ring Thickness: 1.20mm x 1.50mm x 3.00mm
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold as a set of 4.
Notes: Suitable for turbo or nitrous. Full round skirt design.
Manufacturer's Part Number: 208478
Part Type: Pistons
Product Line: JE Pistons Sport Compact Pistons
HP Direct Part Number: JEP-208478-4
UPC: 193564046451
Piston Rings Included: No
Bore (in.): 3.366 in.
Bore (mm): 85.500mm
Engine Stroke Type: Stock
Piston Style: Dish, with four valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.367 in.
Piston Head Volume (cc): +13.20cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: No
Wrist Pin Included: Yes
Pin Diameter (in.): 0.827 in.
Piston Ring Thickness: 1.20mm x 1.50mm x 3.00mm
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold as a set of 4.
Notes: Suitable for turbo or nitrous. Full round skirt design.
