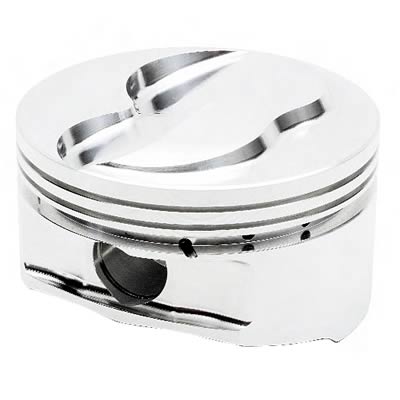

JE Pistons Sport Compact Pistons 208474S

JE Pistons sport compact pistons are specifically engineered for extreme applications, up to and including professional competition. In this environment, the higher compression ratios, highest boost, or heavy nitrous usage necessitate the higher tensile strength 2618 aluminum alloy. Their dome/dish requires no deburring or preparation and features smooth-flowing radii for excellent flame travel. A pin fitting, wire locks, and rings are included.Brand: JE Pistons
Manufacturer's Part Number: 208474S
Part Type: Pistons
Product Line: JE Pistons Sport Compact Pistons
HP Direct Part Number: JEP-208474-1
UPC: 193564013552
Piston Rings Included: No
Bore (in.): 3.445 in.
Bore (mm): 87.500mm
Stroke: 3.740 in.
Engine Stroke Type: Stock
Rod Length: 5.571 in.
Piston Style: Flat top, with four valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.204 in.
Piston Head Volume (cc): +5.80cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Piston Ring Thickness: 1.20mm x 1.20mm x 2.80mm
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold individually.
Notes: Suitable for turbo or nitrous. Full round skirt design.
