Description

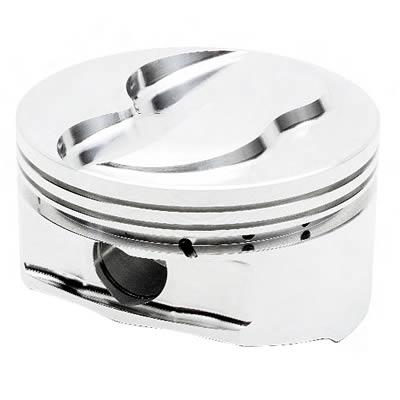

JE Pistons sport compact pistons are specifically engineered for extreme applications, up to and including professional competition. In this environment, the higher compression ratios, highest boost, or heavy nitrous usage necessitate the higher tensile strength 2618 aluminum alloy. Their dome/dish requires no deburring or preparation and features smooth-flowing radii for excellent flame travel. A pin fitting, wire locks, and rings are included.Brand: JE Pistons
Manufacturer's Part Number: 176449
Part Type: Pistons
Product Line: JE Pistons Sport Compact Pistons
HP Direct Part Number: JEP-176449-1
Piston Rings Included: No
Bore (in.): 3.189 in.
Bore (mm): 81.000mm
Stroke: 3.047 in.
Engine Stroke Type: Stock
Rod Length: 5.290 in.
Piston Style: Flat top, with four valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.181 in.
Piston Head Volume (cc): +1.70cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Piston Ring Thickness: 1.00mm x 1.20mm x 2.80mm
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold individually.
Notes: Suitable for turbo or nitrous. Full round skirt design.
Manufacturer's Part Number: 176449
Part Type: Pistons
Product Line: JE Pistons Sport Compact Pistons
HP Direct Part Number: JEP-176449-1
Piston Rings Included: No
Bore (in.): 3.189 in.
Bore (mm): 81.000mm
Stroke: 3.047 in.
Engine Stroke Type: Stock
Rod Length: 5.290 in.
Piston Style: Flat top, with four valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.181 in.
Piston Head Volume (cc): +1.70cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Piston Ring Thickness: 1.00mm x 1.20mm x 2.80mm
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold individually.
Notes: Suitable for turbo or nitrous. Full round skirt design.
