Description

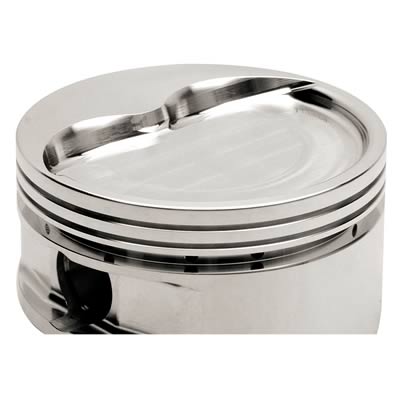

JE Pistons small block Chrysler inverted dome top pistons are designed for use in high performance street/strip machines and are compatible with turbocharged, nitrous, and forced induction systems. Machined to accommodate large valve and long-duration, tight lobe separation cams, these pistons are machined for 1/16, 1/16, 3/16 rings and .927 in. diameter wrist pins.Brand: JE Pistons
Manufacturer's Part Number: 207420
Part Type: Pistons
Product Line: JE Pistons Small Block Chrysler Inverted Dome Top Pistons
HP Direct Part Number: JEP-207420-8
UPC: 193564033826
Piston Rings Included: No
Bore (in.): 4.030 in.
Bore (mm): 102.362mm
Stroke: 4.000 in.
Engine Stroke Type: Stroked
Rod Length: 6.125 in.
Piston Style: Dish, with two valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.460 in.
Piston Head Volume (cc): +20.00cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Pin Diameter (in.): 0.927 in.
Piston Ring Thickness: 1/16 in. x 1/16 in. x 3/16 in.
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold as a set of 8.
Manufacturer's Part Number: 207420
Part Type: Pistons
Product Line: JE Pistons Small Block Chrysler Inverted Dome Top Pistons
HP Direct Part Number: JEP-207420-8
UPC: 193564033826
Piston Rings Included: No
Bore (in.): 4.030 in.
Bore (mm): 102.362mm
Stroke: 4.000 in.
Engine Stroke Type: Stroked
Rod Length: 6.125 in.
Piston Style: Dish, with two valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.460 in.
Piston Head Volume (cc): +20.00cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Pin Diameter (in.): 0.927 in.
Piston Ring Thickness: 1/16 in. x 1/16 in. x 3/16 in.
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold as a set of 8.
