Description
Brand: JE Pistons
Manufacturer's Part Number: 86622501252C

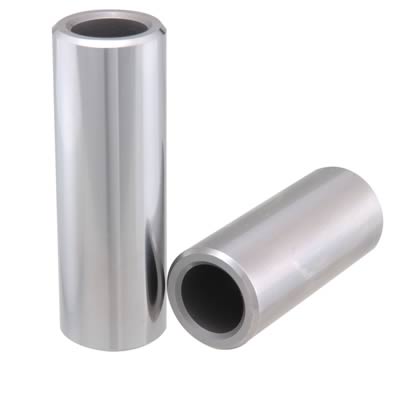

Part Type: Piston Wrist Pins
Product Line: JE Pistons Series 52 Wrist Pins
Automotive Fittings Part Number: JEP-86622501252C
Wrist Pin Diameter (in.): 0.866 in.
Wrist Pin Length: 2.250 in.
Wrist Pin Material: Steel
Metallurgy: 52100 steel
Wrist Pin Weight: 90 grams
Quantity: Sold individually.
Notes: This pin has a 45 degree chamfer on the ends. Designed to work with wire locks only.
Description:
For high-impact, drag race, and endurance applications, JE Pistons offers the Series 52 wrist pins. These pins are constructed from 52100 high carbon bearing steel and through-hardened for added stability. All JE pistons are super-finished on both the outside and inside diameters to help reduce piston pin bore wear and minimize fatigue cracking, adding to the overall strength and reliability of the wrist pins. Employing the latest in technology and quality control, the Series 52 wrist pins are checked for the tiniest flaws and to ensure the roundness of each pin. JE Pistons Series 52 wrist pins are available in a variety of lengths, diameters, and wall thicknesses. They are specifically developed for use with JE pistons.
Manufacturer's Part Number: 86622501252C
Part Type: Piston Wrist Pins
Product Line: JE Pistons Series 52 Wrist Pins
Automotive Fittings Part Number: JEP-86622501252C
Wrist Pin Diameter (in.): 0.866 in.
Wrist Pin Length: 2.250 in.
Wrist Pin Material: Steel
Metallurgy: 52100 steel
Wrist Pin Weight: 90 grams
Quantity: Sold individually.
Notes: This pin has a 45 degree chamfer on the ends. Designed to work with wire locks only.
Description:
For high-impact, drag race, and endurance applications, JE Pistons offers the Series 52 wrist pins. These pins are constructed from 52100 high carbon bearing steel and through-hardened for added stability. All JE pistons are super-finished on both the outside and inside diameters to help reduce piston pin bore wear and minimize fatigue cracking, adding to the overall strength and reliability of the wrist pins. Employing the latest in technology and quality control, the Series 52 wrist pins are checked for the tiniest flaws and to ensure the roundness of each pin. JE Pistons Series 52 wrist pins are available in a variety of lengths, diameters, and wall thicknesses. They are specifically developed for use with JE pistons.
