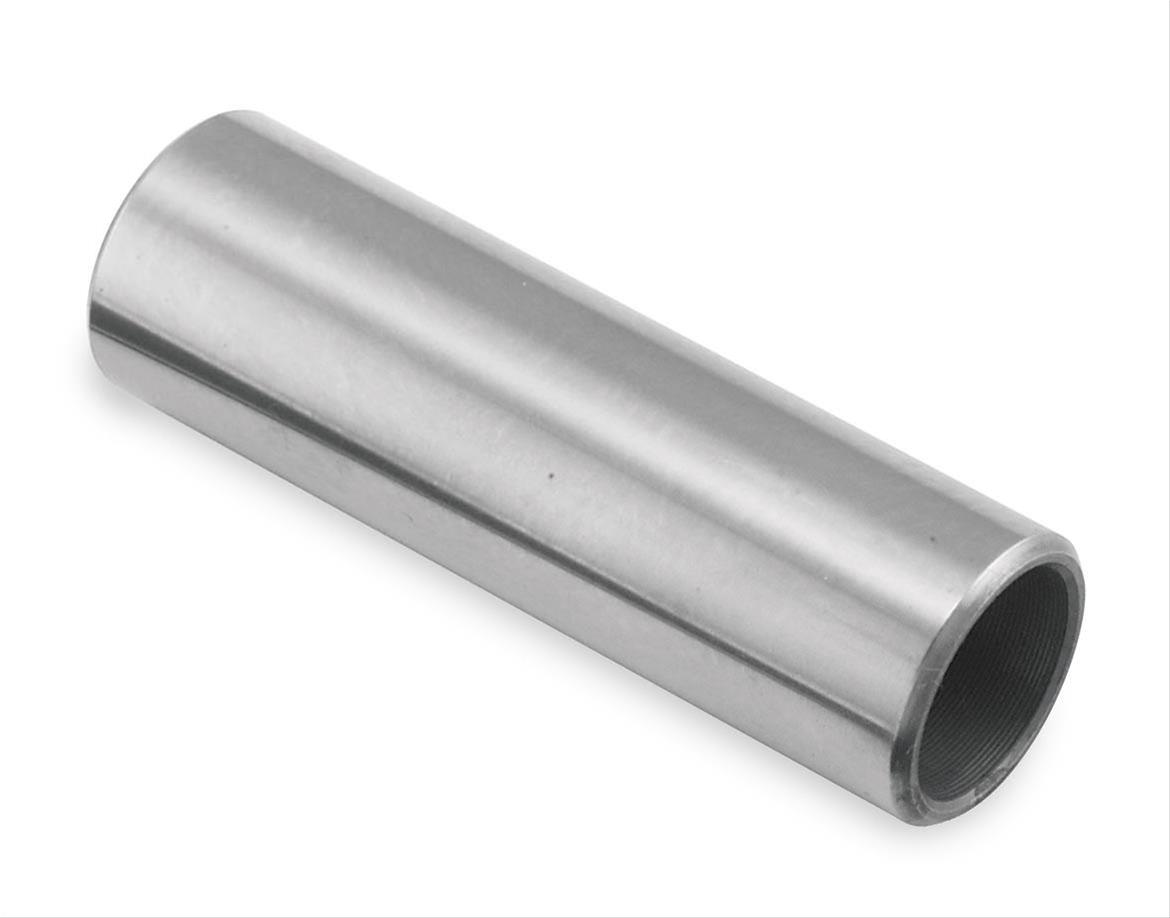

JE Pistons Series 52 Wrist Pins 748-2500-12-52C

For high-impact, drag race, and endurance applications, JE Pistons offers the Series 52 wrist pins. These pins are constructed from 52100 high carbon bearing steel and through-hardened for added stability. All JE pistons are super-finished on both the outside and inside diameters to help reduce piston pin bore wear and minimize fatigue cracking, adding to the overall strength and reliability of the wrist pins. Employing the latest in technology and quality control, the Series 52 wrist pins are checked for the tiniest flaws and to ensure the roundness of each pin. JE Pistons Series 52 wrist pins are available in a variety of lengths, diameters, and wall thicknesses. They are specifically developed for use with JE pistons.Brand: JE Pistons
Manufacturer's Part Number: 748-2500-12-52C
Part Type: Piston Wrist Pins
Product Line: JE Pistons Series 52 Wrist Pins
HP Direct Part Number: JEP-74825001252C
UPC: 193564004499
Wrist Pin Diameter (in.): 0.748 in.
Wrist Pin Length: 2.500 in.
Wrist Pin Material: Steel
Metallurgy: 52100 steel
Wrist Pin Weight: 75 grams
Wall Thickness (in.): 0.120 in.
Quantity: Sold individually.
