Description

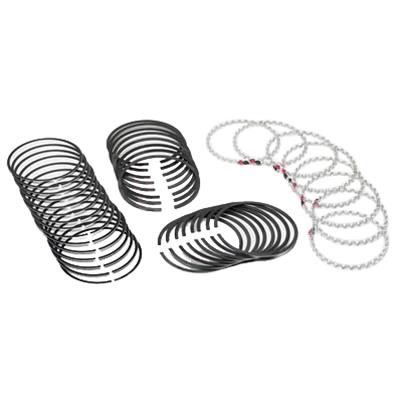

JE Pistons Pro Steel piston rings utilize a high-strength, alloy-steel top ring that provides superior bore conformity. This is complemented by the outstanding seal and wear characteristics of a high-velocity, plasma-moly inlay coating. The top ring weighs under 10 g as a result of reduced ring radials and short axial heights, helping to minimize cylinder wall drag. The optional second ring's Napier hook profile design helps to improve oil control and efficiency.Brand: JE Pistons
Manufacturer's Part Number: XC8400
Part Type: Piston Rings
Product Line: JE Pistons Pro Steel Piston Rings
HP Direct Part Number: JEP-XC8400
UPC: 193564241603
Bore (in.): 3.307 in.
Bore (mm): 83.998mm
File Fit: No
Gapless: No
Gas Ported: No
Top Ring Included: Yes
Top Ring Thickness: 1.0mm
Top Ring Material: Steel
Top Ring Facing Material: Chrome
Second Ring Included: Yes
Second Ring Thickness: 1.2mm
Second Ring Material: Iron
Second Ring Facing Material: Phosphate coated
Oil Ring Included: Yes
Oil Ring Thickness: 2.8mm
Oil Ring Tension: Standard
Oil Ring Material: Carbon steel
Oil Ring Facing Material: Chrome
Quantity: Sold as 1 set.
Notes: Single cylinder only.
Manufacturer's Part Number: XC8400
Part Type: Piston Rings
Product Line: JE Pistons Pro Steel Piston Rings
HP Direct Part Number: JEP-XC8400
UPC: 193564241603
Bore (in.): 3.307 in.
Bore (mm): 83.998mm
File Fit: No
Gapless: No
Gas Ported: No
Top Ring Included: Yes
Top Ring Thickness: 1.0mm
Top Ring Material: Steel
Top Ring Facing Material: Chrome
Second Ring Included: Yes
Second Ring Thickness: 1.2mm
Second Ring Material: Iron
Second Ring Facing Material: Phosphate coated
Oil Ring Included: Yes
Oil Ring Thickness: 2.8mm
Oil Ring Tension: Standard
Oil Ring Material: Carbon steel
Oil Ring Facing Material: Chrome
Quantity: Sold as 1 set.
Notes: Single cylinder only.
