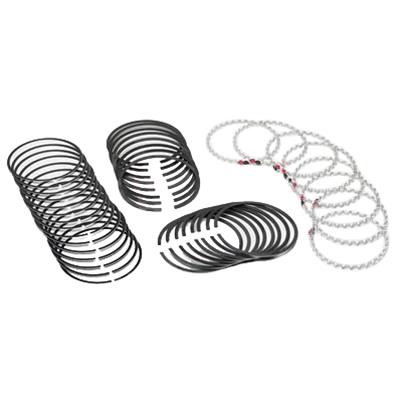

JE Pistons Pro Steel Piston Rings J68008-3900-3

JE Pistons Pro Steel piston rings utilize a high-strength, alloy-steel top ring that provides superior bore conformity. This is complemented by the outstanding seal and wear characteristics of a high-velocity, plasma-moly inlay coating. The top ring weighs under 10 g as a result of reduced ring radials and short axial heights, helping to minimize cylinder wall drag. The optional second ring's Napier hook profile design helps to improve oil control and efficiency.Brand: JE Pistons
Manufacturer's Part Number: J68008-3900-3
Part Type: Piston Rings
Product Line: JE Pistons Pro Steel Piston Rings
HP Direct Part Number: JEP-J6800839003
UPC: 193564227881
Bore (in.): 3.900 in.
Bore (mm): 99.060mm
File Fit: No
Gapless: No
Gas Ported: No
Top Ring Included: Yes
Top Ring Thickness: 1.5mm
Top Ring Material: Steel
Top Ring Facing Material: Plasma-moly
Second Ring Included: Yes
Second Ring Thickness: 1.5mm
Second Ring Material: Iron
Second Ring Facing Material: Phosphate coated
Oil Ring Included: Yes
Oil Ring Thickness: 3.0mm
Oil Ring Tension: Low
Oil Ring Material: Carbon steel
Oil Ring Facing Material: Chrome
Quantity: Sold as 8 sets.
Notes: Barrel face back cut torsional top ring, taper face D-wall reverse torsional second ring with full seal flex vent style oil ring.
