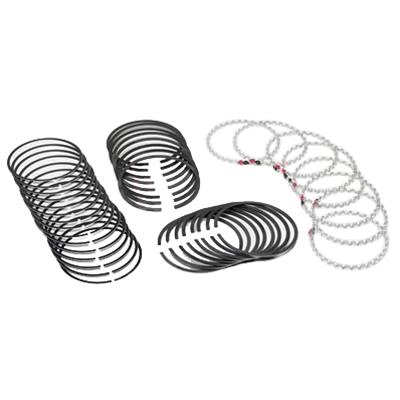

JE Pistons Pro Steel Piston Rings J103F8-4030-5

JE Pistons Pro Steel piston rings utilize a high-strength, alloy-steel top ring that provides superior bore conformity. This is complemented by the outstanding seal and wear characteristics of a high-velocity, plasma-moly inlay coating. The top ring weighs under 10 g as a result of reduced ring radials and short axial heights, helping to minimize cylinder wall drag. The optional second ring's Napier hook profile design helps to improve oil control and efficiency.Brand: JE Pistons
Manufacturer's Part Number: J103F8-4030-5
Part Type: Piston Rings
Product Line: JE Pistons Pro Steel Piston Rings
HP Direct Part Number: JEP-J103F8-40305
UPC: 193564229120
Bore (in.): 4.030 in.
Bore (mm): 102.362mm
File Fit: Yes
Gapless: No
Gas Ported: No
Top Ring Included: Yes
Top Ring Thickness: 1/16 in.
Top Ring Material: Ductile iron
Top Ring Facing Material: Plasma-moly
Second Ring Included: Yes
Second Ring Thickness: 1/16 in.
Second Ring Material: Ductile iron
Second Ring Facing Material: Phosphate coated
Oil Ring Included: Yes
Oil Ring Thickness: 3/16 in.
Oil Ring Tension: Standard
Oil Ring Tension Rating: 11-12 lb.
Oil Ring Material: Carbon steel
Oil Ring Facing Material: Chrome
Quantity: Sold as 8 sets.
Notes: Barrel face back cut torsional top ring, napier back cut neutral second ring with SS50U-style oil ring.
