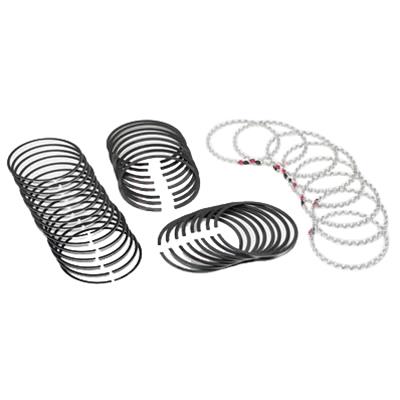

JE Pistons Pro Seal Piston Rings JG86H8-4610-5

JE Pistons Pro Seal piston rings feature barrel-faced top rings made from premium ductile iron. They also have a special high-tech, friction-reducing, plasma-moly inlay on the face that combines molybdenum, nickel, chrome, and trace elements. The results are higher temperature resistance, reduced wear, better ring sealing, and reduced flaking. The second rings are a taper-faced, reverse-torsional design with a special phosphate coating. The oil-control rings are available in your choice of either low or standard-tension types. Choose the set designed for fitment on your engine application.Brand: JE Pistons
Manufacturer's Part Number: JG86H8-4610-5
Part Type: Piston Rings
Product Line: JE Pistons Pro Seal Piston Rings
HP Direct Part Number: JEP-JG86H8-46105
UPC: 193564222497
Bore (in.): 4.610 in.
Bore (mm): 117.094mm
File Fit: Yes
Gapless: No
Gas Ported: No
Top Ring Included: Yes
Top Ring Thickness: 0.043 in.
Top Ring Material: Carbon steel
Top Ring Facing Material: Gas nitrided
Second Ring Included: Yes
Second Ring Thickness: 1/16 in.
Second Ring Material: Ductile iron
Second Ring Facing Material: Phosphate coated
Oil Ring Included: Yes
Oil Ring Thickness: 3/16 in.
Oil Ring Tension Rating: 15-16 lb.
Oil Ring Material: Carbon steel
Quantity: Sold as 8 sets.
