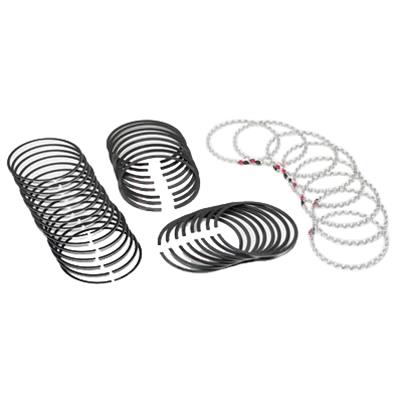

JE Pistons Pro Seal Piston Rings JG1001-3386

JE Pistons Pro Seal piston rings feature barrel-faced top rings made from premium ductile iron. They also have a special high-tech, friction-reducing, plasma-moly inlay on the face that combines molybdenum, nickel, chrome, and trace elements. The results are higher temperature resistance, reduced wear, better ring sealing, and reduced flaking. The second rings are a taper-faced, reverse-torsional design with a special phosphate coating. The oil-control rings are available in your choice of either low or standard-tension types. Choose the set designed for fitment on your engine application.Brand: JE Pistons
Manufacturer's Part Number: JG1001-3386
Part Type: Piston Rings
Product Line: JE Pistons Pro Seal Piston Rings
HP Direct Part Number: JEP-JG1001-3386
UPC: 193564223883
Bore (in.): 3.386 in.
Bore (mm): 86.004mm
File Fit: No
Gapless: No
Gas Ported: No
Top Ring Included: Yes
Top Ring Thickness: 1.0mm
Top Ring Material: Steel
Top Ring Facing Material: Gas nitrided
Second Ring Included: Yes
Second Ring Thickness: 1.2mm
Second Ring Material: Ductile iron
Second Ring Facing Material: Phosphate coated
Oil Ring Included: Yes
Oil Ring Thickness: 2.8mm
Oil Ring Tension: Low
Oil Ring Material: Carbon steel
Oil Ring Facing Material: Nitride
Quantity: Sold as 1 set.
Notes: Single cylinder only. Napier ® design second ring.
