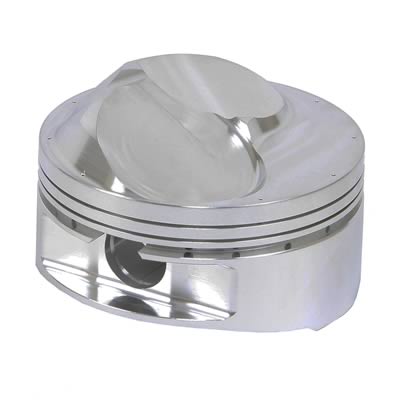

JE Pistons open chamber dome top gas ported pistons are the top choice for drag race applications. These pistons have vertical gas ports, backcut top and D wall second rings (.043, .043, 3.0mm), and a low-tension oil ring. Their compression height is figured using a 9.780 in. block height with zero deck clearance. They include a pin and double Spiro locks.Brand: JE Pistons
Manufacturer's Part Number: 243330
Part Type: Pistons
Product Line: JE Pistons Open Chamber Dome Top Gas Ported Pistons
HP Direct Part Number: JEP-243330-8
UPC: 193564043795
Piston Rings Included: No
Bore (in.): 4.560 in.
Bore (mm): 115.824mm
Stroke: 4.250 in.
Engine Stroke Type: Stroked
Rod Length: 6.535 in.
Piston Style: Dome, with two valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.120 in.
Piston Head Volume (cc): -46.00cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: No
Wrist Pin Included: Yes
Pin Diameter (in.): 0.990 in.
Piston Ring Thickness: 0.043 in. x 0.043 in. x 3.00mm
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold as a set of 8.
Notes: Oil rail support included.
