Description

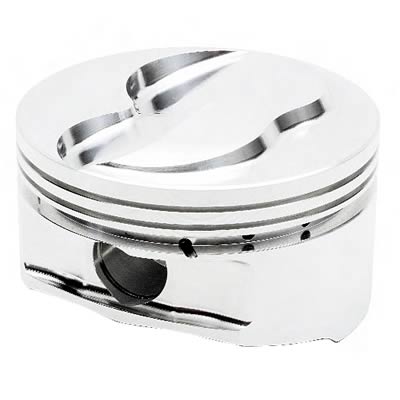

JE Pistons NASCAR Canadian tire series small block Ford 23 degree pistons are NASCAR-approved for competition use. Machined from 2618 high-strength alloy, they include carbon steel wrist pins and double Spiro locks. Their precision CNC-machined ring grooves accept 1/16, 1/16, 3/16 rings.Brand: JE Pistons
Manufacturer's Part Number: 265107
Part Type: Pistons
Product Line: JE Pistons NASCAR Canadian Tire Series SB Ford 23 Degree Pistons
HP Direct Part Number: JEP-265107-8
UPC: 193564036872
Piston Rings Included: No
Bore (in.): 4.060 in.
Bore (mm): 103.124mm
Stroke: 3.500 in.
Engine Stroke Type: Stroked
Rod Length: 6.000 in.
Piston Style: Dish, with two valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.724 in.
Piston Head Volume (cc): +14.00cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Pin Diameter (in.): 0.927 in.
Piston Ring Thickness: 1/16 in. x 1/16 in. x 3/16 in.
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold as a set of 8.
Manufacturer's Part Number: 265107
Part Type: Pistons
Product Line: JE Pistons NASCAR Canadian Tire Series SB Ford 23 Degree Pistons
HP Direct Part Number: JEP-265107-8
UPC: 193564036872
Piston Rings Included: No
Bore (in.): 4.060 in.
Bore (mm): 103.124mm
Stroke: 3.500 in.
Engine Stroke Type: Stroked
Rod Length: 6.000 in.
Piston Style: Dish, with two valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.724 in.
Piston Head Volume (cc): +14.00cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Pin Diameter (in.): 0.927 in.
Piston Ring Thickness: 1/16 in. x 1/16 in. x 3/16 in.
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold as a set of 8.
