Description

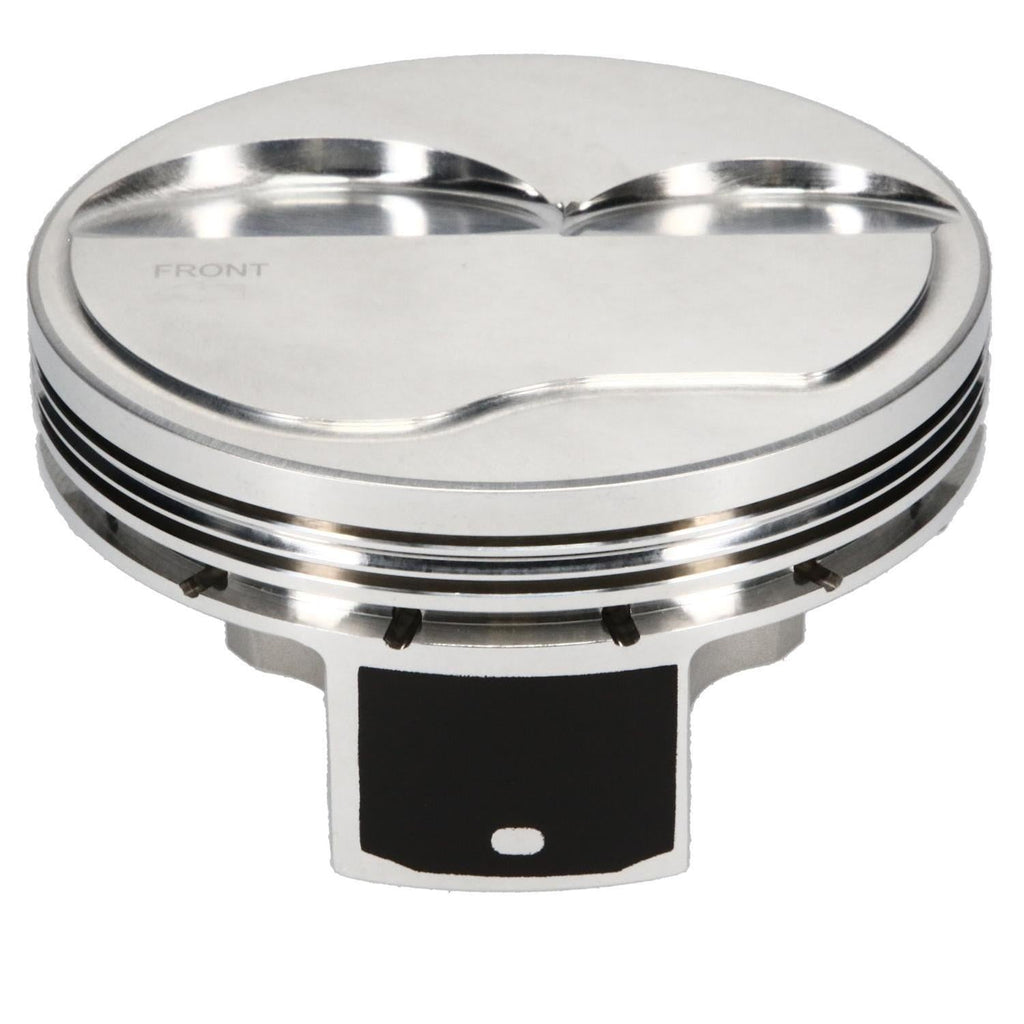

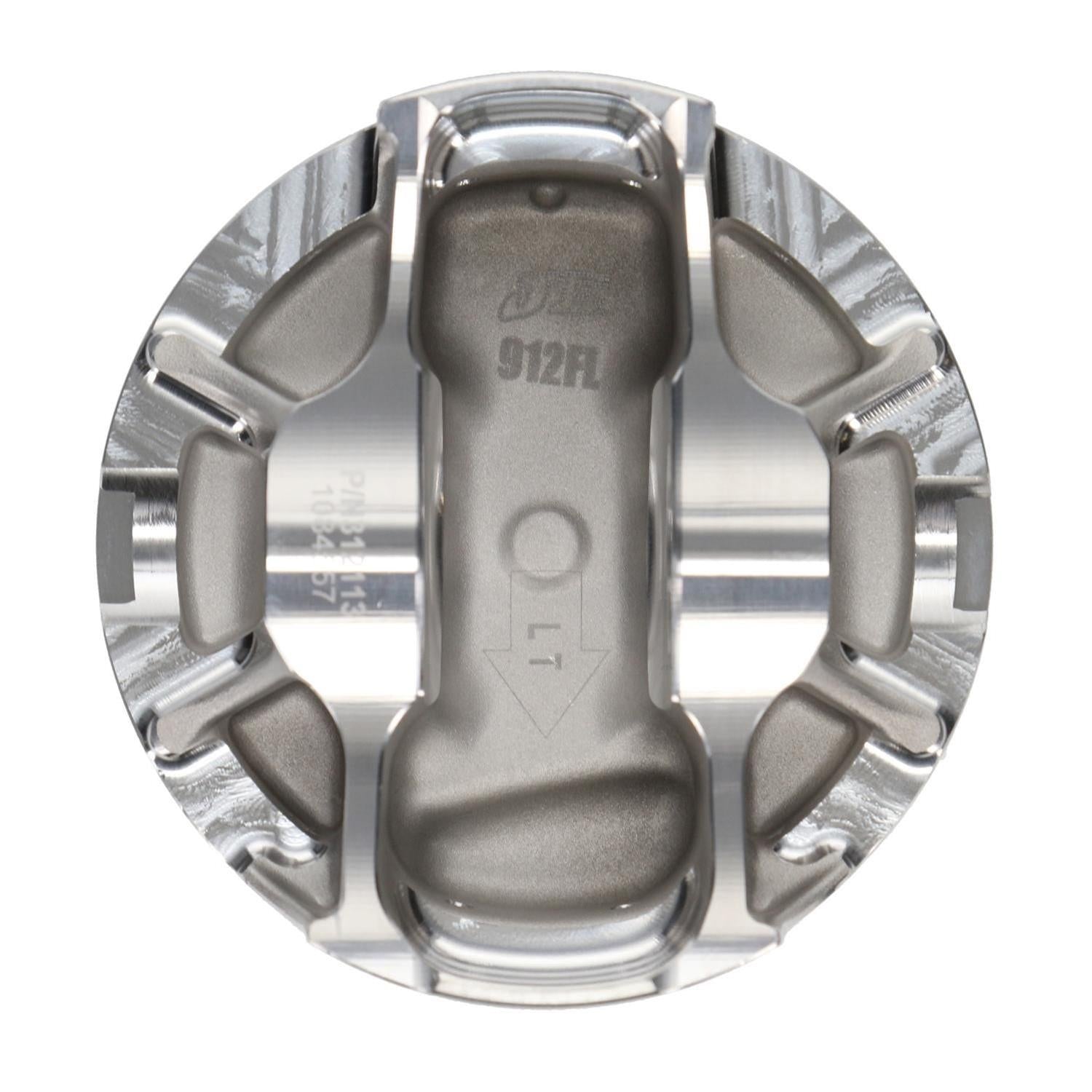

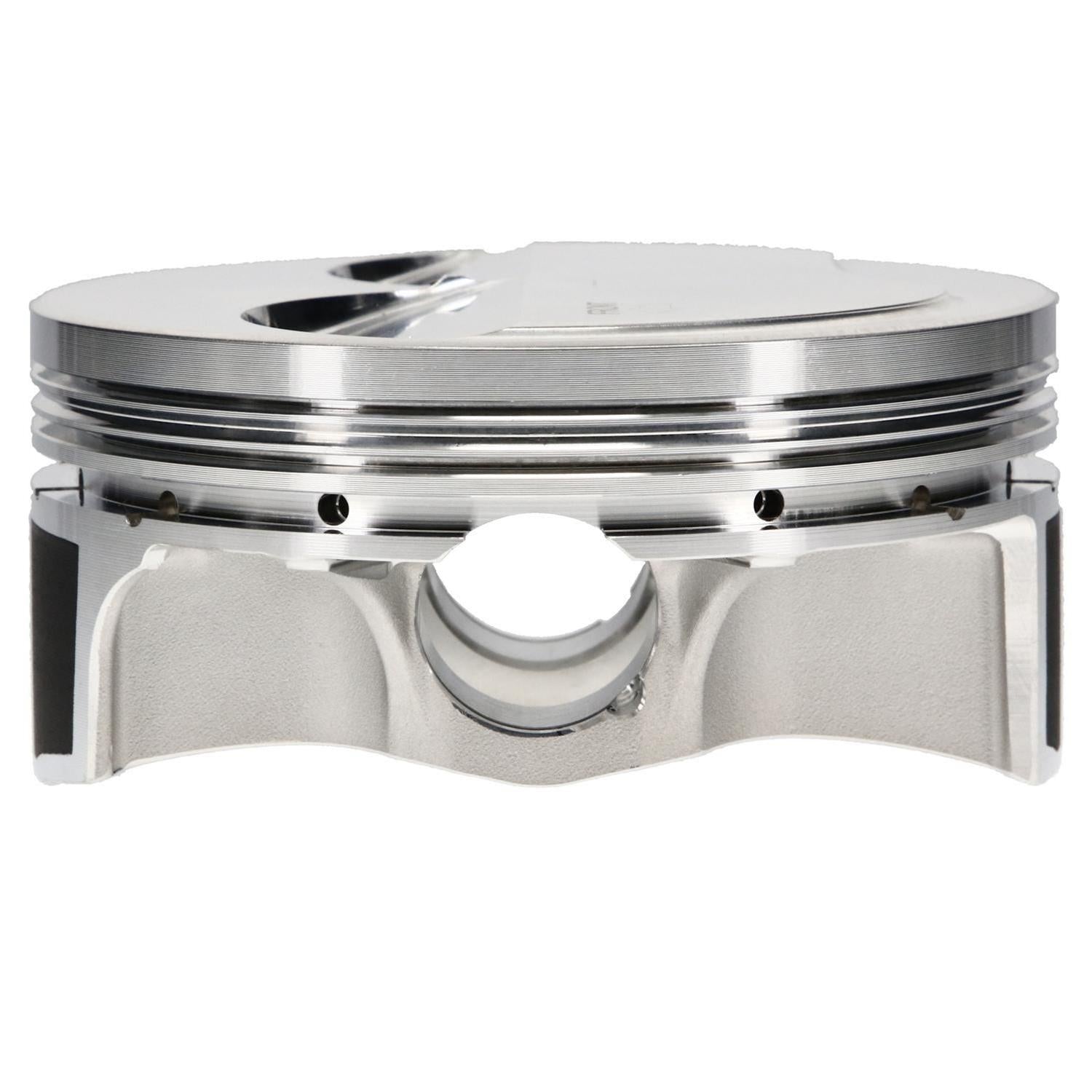

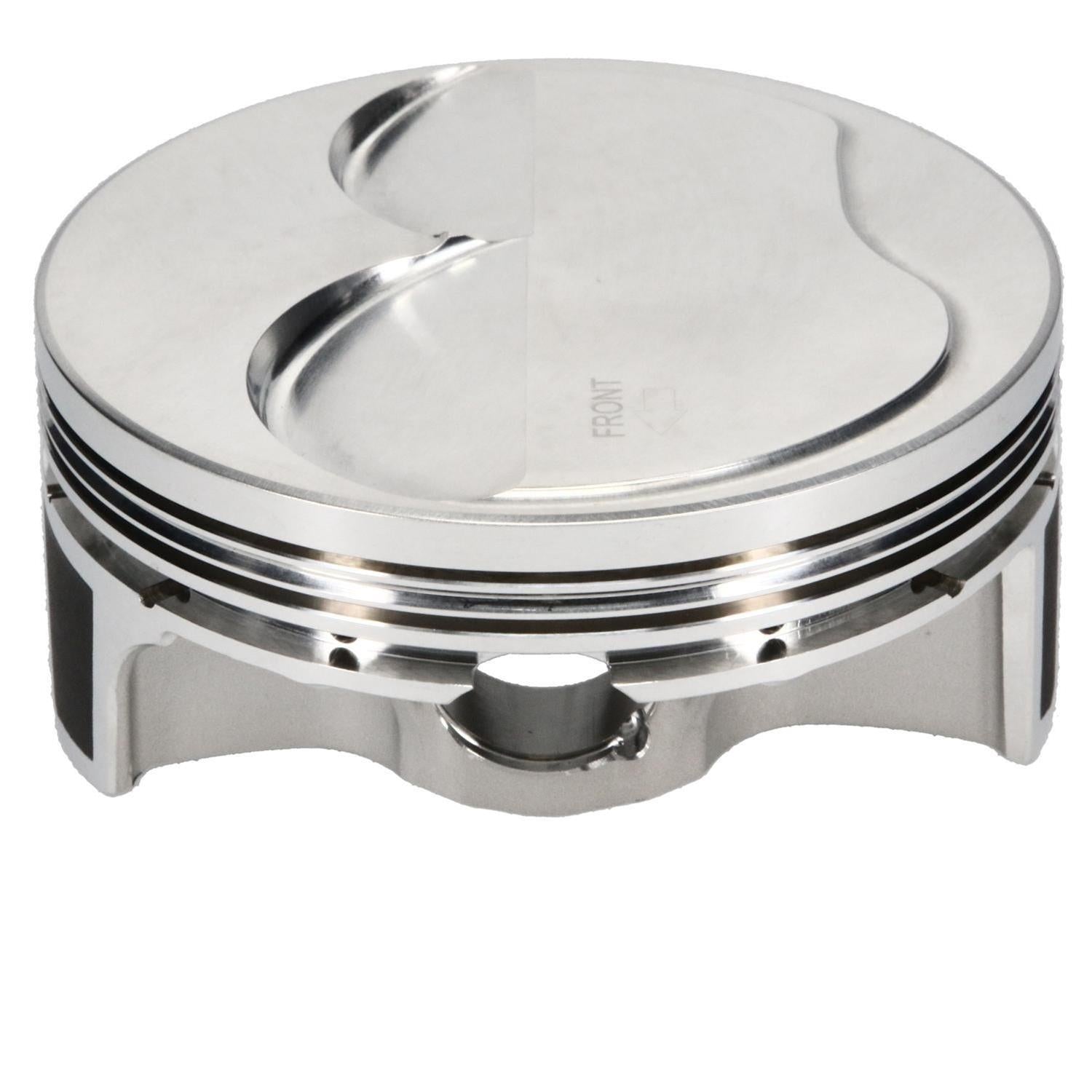

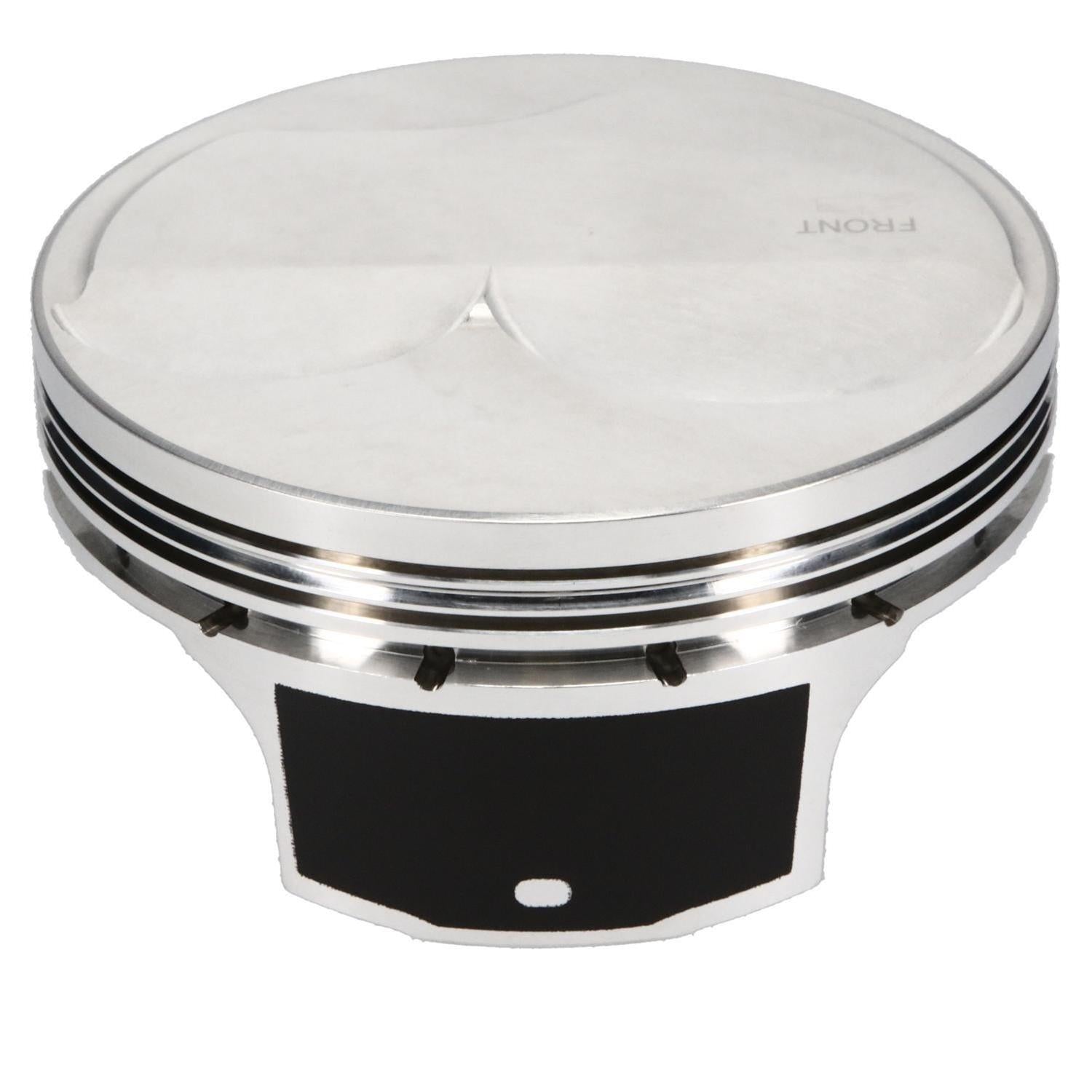

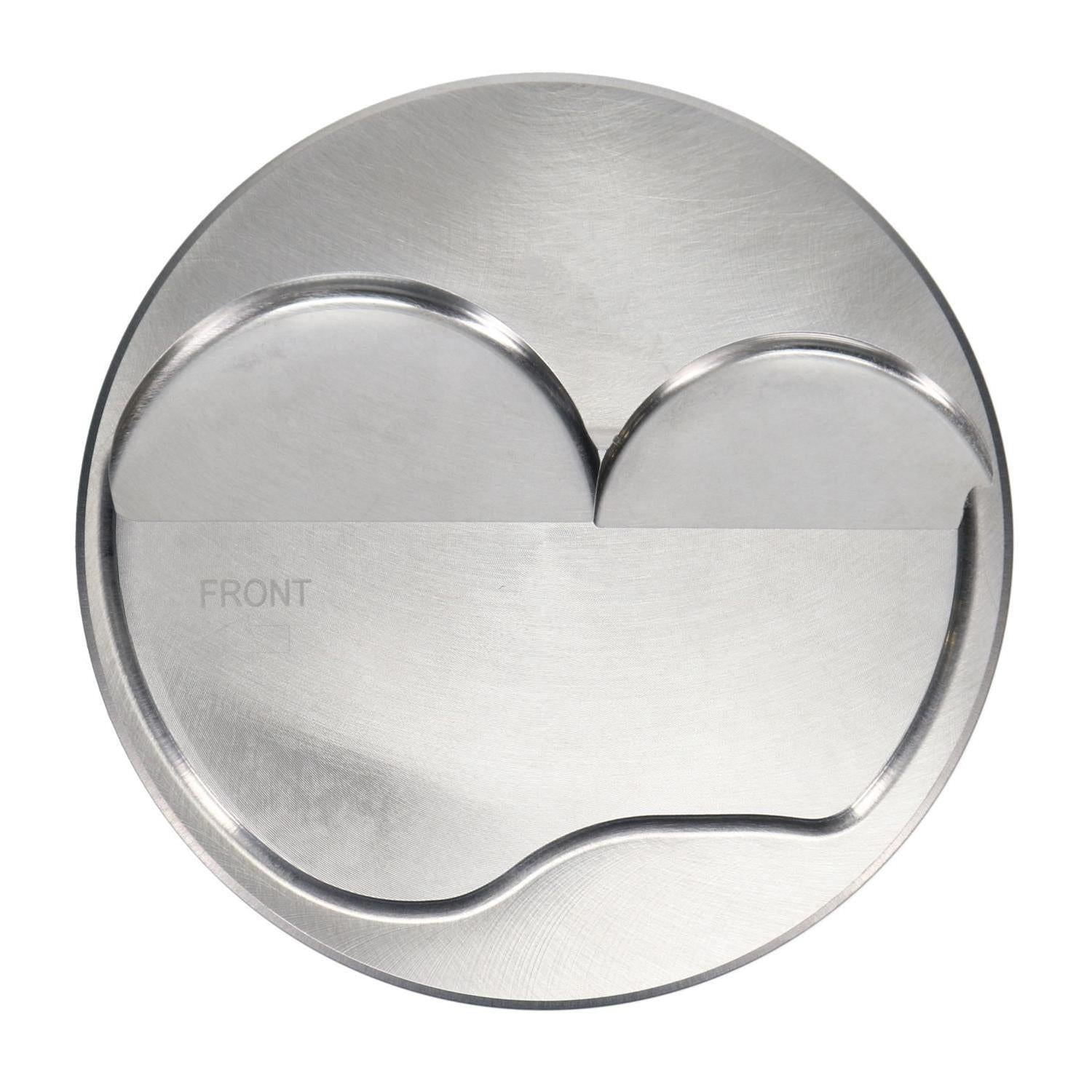

JE Pistons' newest FSR slipper forging design allows for the use of the most popular stroke and rod combinations while eliminating reluctor wheel clearance problems. These pistons are lightweight and extremely durable. They're machined for 1.5, 1.5, 3.0mm rings and have an inverted dome design to achieve an optimum compression ratio with forced induction applications.Brand: JE Pistons
Manufacturer's Part Number: 312108
Part Type: Pistons
Product Line: JE Pistons LS1/LS6/Z06/5.7L/6.0L FSR Pistons
HP Direct Part Number: JEP-312108-8
UPC: 193564039538
Piston Rings Included: No
Bore (in.): 4.030 in.
Bore (mm): 102.362mm
Stroke: 4.000 in.
Engine Stroke Type: Stroked
Piston Style: Dome, with two valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.115 in.
Piston Head Volume (cc): -11.80cc
Wrist Pin Style: Floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Pin Diameter (in.): 0.927 in.
Piston Ring Thickness: 1.20mm x 1.50mm x 3.00mm
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold as a set of 8.
Notes: For use with 15 degree head only.
Manufacturer's Part Number: 312108
Part Type: Pistons
Product Line: JE Pistons LS1/LS6/Z06/5.7L/6.0L FSR Pistons
HP Direct Part Number: JEP-312108-8
UPC: 193564039538
Piston Rings Included: No
Bore (in.): 4.030 in.
Bore (mm): 102.362mm
Stroke: 4.000 in.
Engine Stroke Type: Stroked
Piston Style: Dome, with two valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.115 in.
Piston Head Volume (cc): -11.80cc
Wrist Pin Style: Floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Pin Diameter (in.): 0.927 in.
Piston Ring Thickness: 1.20mm x 1.50mm x 3.00mm
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold as a set of 8.
Notes: For use with 15 degree head only.
