Description

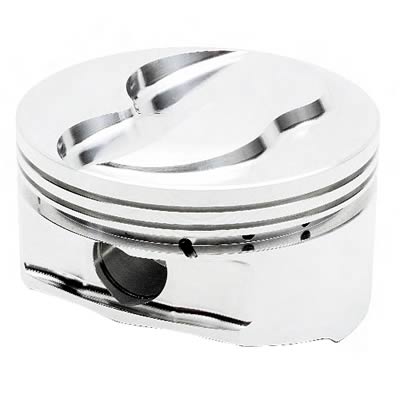

JE Pistons FSR tour series GP pistons are a lightweight design specifically made for naturally aspirated Circle Track or drag race applications up to 650 hp. Their ring package has been raised for maximum efficiency. These pistons are an aggressive, competition-only design, not intended for street or nitrous use. Their ring grooves are precision-machined for .043, .043, 3.0mm rings and their valve reliefs will accommodate angle-milled aftermarket cylinder heads.Brand: JE Pistons
Manufacturer's Part Number: 257797
Part Type: Pistons
Product Line: JE Pistons FSR Tour Series GP Pistons
HP Direct Part Number: JEP-257797-8
UPC: 193564034731
Piston Rings Included: No
Bore (in.): 4.030 in.
Bore (mm): 102.362mm
Stroke: 3.480 in.
Engine Stroke Type: Stock
Rod Length: 5.700 in.
Piston Style: Flat top, with two valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.550 in.
Piston Head Volume (cc): +5.00cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Pin Diameter (in.): 0.927 in.
Piston Ring Thickness: 0.043 in. x 0.043 in. x 3.00mm
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold as a set of 8.
Manufacturer's Part Number: 257797
Part Type: Pistons
Product Line: JE Pistons FSR Tour Series GP Pistons
HP Direct Part Number: JEP-257797-8
UPC: 193564034731
Piston Rings Included: No
Bore (in.): 4.030 in.
Bore (mm): 102.362mm
Stroke: 3.480 in.
Engine Stroke Type: Stock
Rod Length: 5.700 in.
Piston Style: Flat top, with two valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.550 in.
Piston Head Volume (cc): +5.00cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Pin Diameter (in.): 0.927 in.
Piston Ring Thickness: 0.043 in. x 0.043 in. x 3.00mm
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold as a set of 8.
