Description

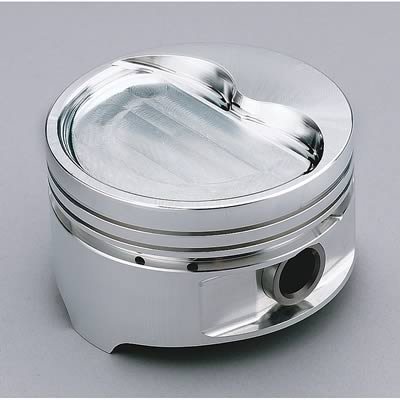

JE Pistons extreme duty 23 degree inverted dome top pistons are specially designed for forced induction and nitrous applications. These pistons include 3.10 in. pocket depths and precision CNC-machined ring grooves. They accept 1/16, 1/16, 3/16 rings.Brand: JE Pistons
Manufacturer's Part Number: 131631
Part Type: Pistons
Product Line: JE Pistons Extreme Duty 23 Degree Inverted Dome Top Pistons
HP Direct Part Number: JEP-131631-8
UPC: 193564045676
Piston Rings Included: No
Bore (in.): 4.030 in.
Bore (mm): 102.362mm
Stroke: 3.750 in.
Engine Stroke Type: Stroked
Rod Length: 5.700 in.
Piston Style: Dish, with two valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.425 in.
Piston Head Volume (cc): +31.00cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Pin Diameter (in.): 0.927 in.
Piston Ring Thickness: 1/16 in. x 1/16 in. x 3/16 in.
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold as a set of 8.
Notes: 0.310 inch deep valve pockets.
Manufacturer's Part Number: 131631
Part Type: Pistons
Product Line: JE Pistons Extreme Duty 23 Degree Inverted Dome Top Pistons
HP Direct Part Number: JEP-131631-8
UPC: 193564045676
Piston Rings Included: No
Bore (in.): 4.030 in.
Bore (mm): 102.362mm
Stroke: 3.750 in.
Engine Stroke Type: Stroked
Rod Length: 5.700 in.
Piston Style: Dish, with two valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.425 in.
Piston Head Volume (cc): +31.00cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Pin Diameter (in.): 0.927 in.
Piston Ring Thickness: 1/16 in. x 1/16 in. x 3/16 in.
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold as a set of 8.
Notes: 0.310 inch deep valve pockets.
