Description

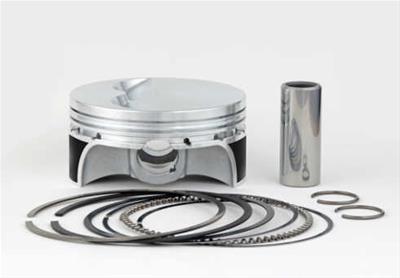

JE Pistons Big Block Chevy Blown Alcohol Series pistons are perfect for high-boost blown alcohol drag racing! These forged aluminum pistons feature precision CNC-machined ring grooves, valve reliefs for oversized valves, and compatibility with angle milled heads. They include pins, double Spiro locks, double pin oilers, and accumulator grooves. The pistons may be used with buttons (sold separately) if you prefer, in place of Spiro locks. Choose the right pistons to handle your blown setup--JE Pistons Big Block Chevy Blown Alcohol Series pistons.Brand: JE Pistons
Manufacturer's Part Number: 297814
Part Type: Pistons
Product Line: JE Pistons Big Block Chevy Blown Alcohol Series Pistons
HP Direct Part Number: JEP-297814-8
UPC: 193564044334
Piston Rings Included: No
Bore (in.): 4.500 in.
Bore (mm): 114.300mm
Stroke: 4.250 in.
Engine Stroke Type: Stroked
Rod Length: 6.535 in.
Piston Style: Dome, with two valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.520 in.
Piston Head Volume (cc): -25.30cc
Wrist Pin Style: Floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Pin Diameter (in.): 0.990 in.
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold as a set of 8.
Manufacturer's Part Number: 297814
Part Type: Pistons
Product Line: JE Pistons Big Block Chevy Blown Alcohol Series Pistons
HP Direct Part Number: JEP-297814-8
UPC: 193564044334
Piston Rings Included: No
Bore (in.): 4.500 in.
Bore (mm): 114.300mm
Stroke: 4.250 in.
Engine Stroke Type: Stroked
Rod Length: 6.535 in.
Piston Style: Dome, with two valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.520 in.
Piston Head Volume (cc): -25.30cc
Wrist Pin Style: Floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Pin Diameter (in.): 0.990 in.
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold as a set of 8.
