Description

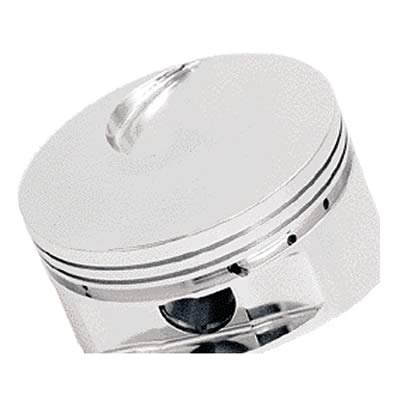

JE Pistons 460 flat top pistons are compatible with OEM and aftermarket standard valve location heads. They will accommodate oversized valves and long-duration, wide lobe separation cams. The precision CNC-machined ring grooves accept 1/16, 1/16, 3/16 rings and compression height is figured for 10.300 block height. SVO C, E, and Boss aluminum heads will require custom piston applications.Brand: JE Pistons
Manufacturer's Part Number: 131685
Part Type: Pistons
Product Line: JE Pistons 460 Flat Top Pistons
HP Direct Part Number: JEP-131685-8
UPC: 193564040862
Piston Rings Included: No
Bore (in.): 4.390 in.
Bore (mm): 111.506mm
Stroke: 3.850 in.
Engine Stroke Type: Stock
Rod Length: 6.605 in.
Piston Style: Flat top, with single valve relief
Piston Material: Forged aluminum
Compression Height (in.): 1.770 in.
Piston Head Volume (cc): +3.00cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Pin Diameter (in.): 1.040 in.
Piston Ring Thickness: 1/16 in. x 1/16 in. x 3/16 in.
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold as a set of 8.
Manufacturer's Part Number: 131685
Part Type: Pistons
Product Line: JE Pistons 460 Flat Top Pistons
HP Direct Part Number: JEP-131685-8
UPC: 193564040862
Piston Rings Included: No
Bore (in.): 4.390 in.
Bore (mm): 111.506mm
Stroke: 3.850 in.
Engine Stroke Type: Stock
Rod Length: 6.605 in.
Piston Style: Flat top, with single valve relief
Piston Material: Forged aluminum
Compression Height (in.): 1.770 in.
Piston Head Volume (cc): +3.00cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Pin Diameter (in.): 1.040 in.
Piston Ring Thickness: 1/16 in. x 1/16 in. x 3/16 in.
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold as a set of 8.
