Description

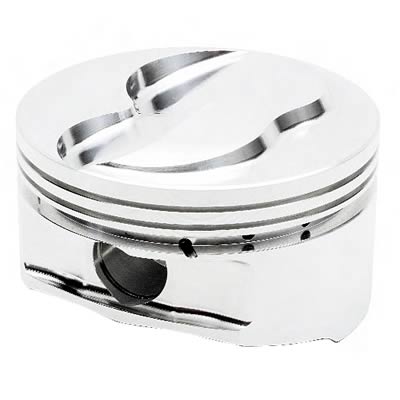

JE Pistons 400 Small Block GP 18 degree dome pistons are equipped with lateral gas ports and machined for JE Pistons new Pro Steel rings with 1.2, 1.5, 3.0mm axial thickness and backcut radial widths. Includes single spiro locks, pin, and double pin oilers.
Brand: JE Pistons
Manufacturer's Part Number: 218593
Part Type: Pistons
Product Line: JE Pistons 400 Small Block GP 18 Degree Dome Pistons
HP Direct Part Number: JEP-218593-8
UPC: 193564030733
Piston Rings Included: No
Bore (in.): 4.125 in.
Bore (mm): 104.775mm
Stroke: 3.750 in.
Engine Stroke Type: Stroked
Rod Length: 6.000 in.
Piston Style: Dome, with two valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.125 in.
Piston Head Volume (cc): -2.50cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: No
Wrist Pin Included: Yes
Pin Diameter (in.): 0.927 in.
Piston Ring Thickness: 1.20mm x 1.50mm x 3.00mm
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold as a set of 8.
Notes: Oil rail support included. Solid dome design.
