Description

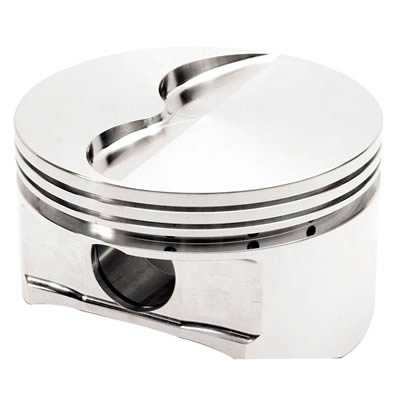

JE Pistons 400/440 wedge flat top pistons feature a completely new design configuration that will accommodate intake valve diameters of up to 2.250 in. Valve reliefs have been machined to accept long-duration, tight lobe separation cam profiles and ring grooves that are machined for 1/16, 1/16, 3/16 rings. These pistons are available with either .990 in. or 1.094 in. diameter wrist pins.Brand: JE Pistons
Manufacturer's Part Number: 213462
Part Type: Pistons
Product Line: JE Pistons 400/440 Wedge Flat Top Pistons
HP Direct Part Number: JEP-213462-8
UPC: 193564040572
Piston Rings Included: No
Bore (in.): 4.350 in.
Bore (mm): 110.490mm
Stroke: 4.150 in.
Engine Stroke Type: Stroked
Rod Length: 6.766 in.
Piston Style: Flat top, with two valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.858 in.
Piston Head Volume (cc): +5.00cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Pin Diameter (in.): 0.990 in.
Piston Ring Thickness: 1/16 in. x 1/16 in. x 3/16 in.
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold as a set of 8.
Manufacturer's Part Number: 213462
Part Type: Pistons
Product Line: JE Pistons 400/440 Wedge Flat Top Pistons
HP Direct Part Number: JEP-213462-8
UPC: 193564040572
Piston Rings Included: No
Bore (in.): 4.350 in.
Bore (mm): 110.490mm
Stroke: 4.150 in.
Engine Stroke Type: Stroked
Rod Length: 6.766 in.
Piston Style: Flat top, with two valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.858 in.
Piston Head Volume (cc): +5.00cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Pin Diameter (in.): 0.990 in.
Piston Ring Thickness: 1/16 in. x 1/16 in. x 3/16 in.
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold as a set of 8.
